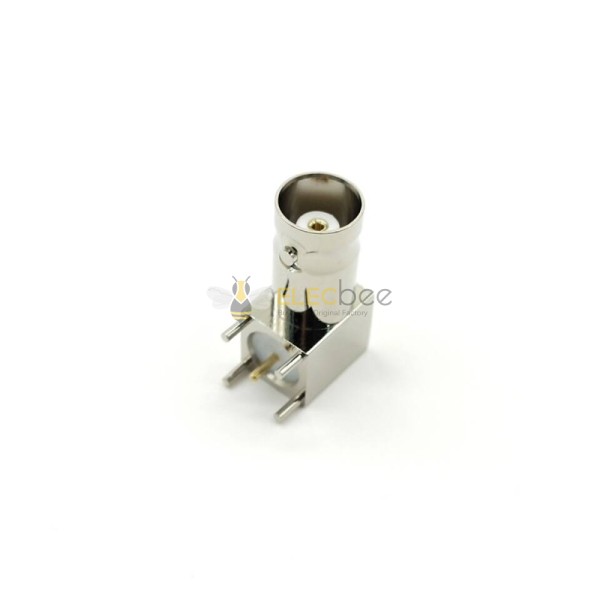

Elecbee BNC Connector PCB Mount Female Right Angle Through Hole

SKU: EB-001-0327
Favorites
Key Features

Product features:

  • BNC Connector, Female, Right Angle, PCB Mount, Solder Type, Through Hole,Cooper, Nickel Plating, Standard, 50Ω/75Ω
  • Compact Design for less installation space required;
  • Easy quick connect and disconnect coupling;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Applications: Antennas, Cable Assembly, Automotive, Radios, Video, Broadcast, Telecom, Satcom, Monitors, Recorders, Switchers, Base Stations, Technology Equipment, Instrumentation, CCTV, CATV, HDTV, etc.

Show More
Datasheet
Attribute
Value
Connector Type
Jack
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Through Hole
Contact Type
Female Pin
Shell Finish
Nickel Plated
Impendance
50/75 Ohms
Frequency Max
4 GHz
Connector Series
BNC
Color
Silver
Fastening Type
Bayonet
Orientation
Right Angled
Shell Material
Copper
Packing
Individual Packaging
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PTFE
Cable Diameter
2.14mm
