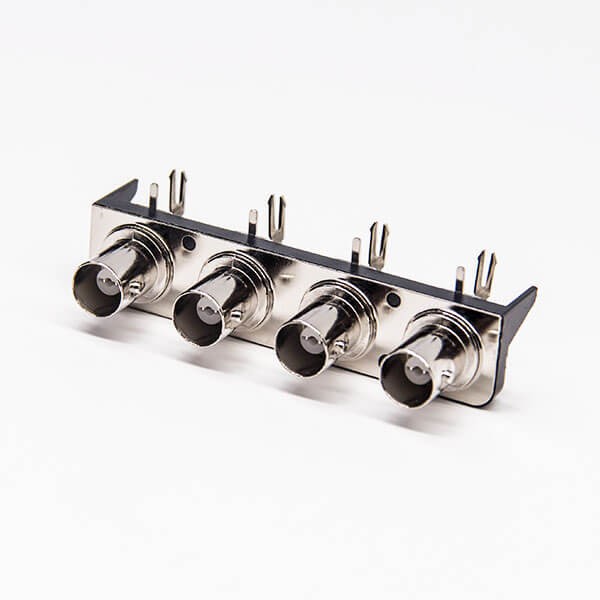

Elecbee BNC Connector Female Coaxial 4x1 Angled PCB Mount
SKU: EB-001-0011
Favorites
Key Features
- Pcb Mount, Jack/Female, Angled/90°, Plastic Panel, 4x1, 50Ω;
- Compact Design for less installation space required;
- Easy quick connect and disconnect coupling;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Main Application of BNC Connectors:
Antennas, Cable Assembly, Automotive, Radios, Video, Broadcast, Telecom, Satcom, Monitors, Recorders, Switchers, Base Stations, Technology Equipment, Instrumentation, CCTV, CATV, HDTV, etc.
Show More
In-Stock
Qty.
1
Unit Price
$ 4.8
Ext. Price
$ 4.80
$ 4.80
Specifications
Attribute
Value
Search
Connector Type
Jack
Number of Ports
4
Mounting Type
Panel Mount
Mounting Feature
Through Hole
Contact Type
Female Pin
Shell Finish
Nickel Plated
Impendance
50/75 Ohms
Frequency Max
4 GHz
Connector Series
BNC
Color
Silver
Fastening Type
Bayonet
Orientation
Right Angled
Shell Material
Zinc Alloy
Packing
Individual Packaging
Contact Material
Copper Alloy
Contact Finish
Nickel Plated
Insulating Materials
PTFE
Related Resources
Certificates
Shopping Guide
Shipping | Delivery Period | Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. Express: 3-7 days. Standard Post: 7-20 days. | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | We offer express and standard delivery services. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Recommended For You
.jpg?x-oss-process=image/resize,w_600,h_600/quality,q_90/watermark,image_aW1hZ2UvcGFuZGEucG5n,P_50,t_40,g_center,x_0,y_0/format,webp)
Reviews(8)
5 /5
All reviews come from verified purchasers
5
63%
4
25%
3
13%
2
0%
1
0%
K****a
Decent quality, great price. Not much more to say
A****a
Arrived quickly. Good quality and good value.
N****h
I'll start by saying I contacted the company and requested a cable I didn't see and they got me to where I needed to be.
v****u
Perfect for my compact RF project. The 90° angled PCB mount saves so much space on the board, and the 50Ω impedance matches perfectly with my coaxial setup.
S****l
Solid build quality for the price. Nickel-plated zinc body feels durable, and the bayonet coupling makes connects/disconnects fast and secure. Good for high-vibration environments.
D****r
Exactly as described—OEM quality but way cheaper than branded equivalents. Used in a CCTV array and signal loss is minimal up to 2.8 GHz.
T****n
Works fine, good for the cost, but the POM insulator might limit high-temp use. Stay below +60°C as specified. Would be better with Teflon option.
R****l
Easy to solder onto the board. The 4x1 layout is clean and fits tight spaces. Great value with the 30-day guarantee!
