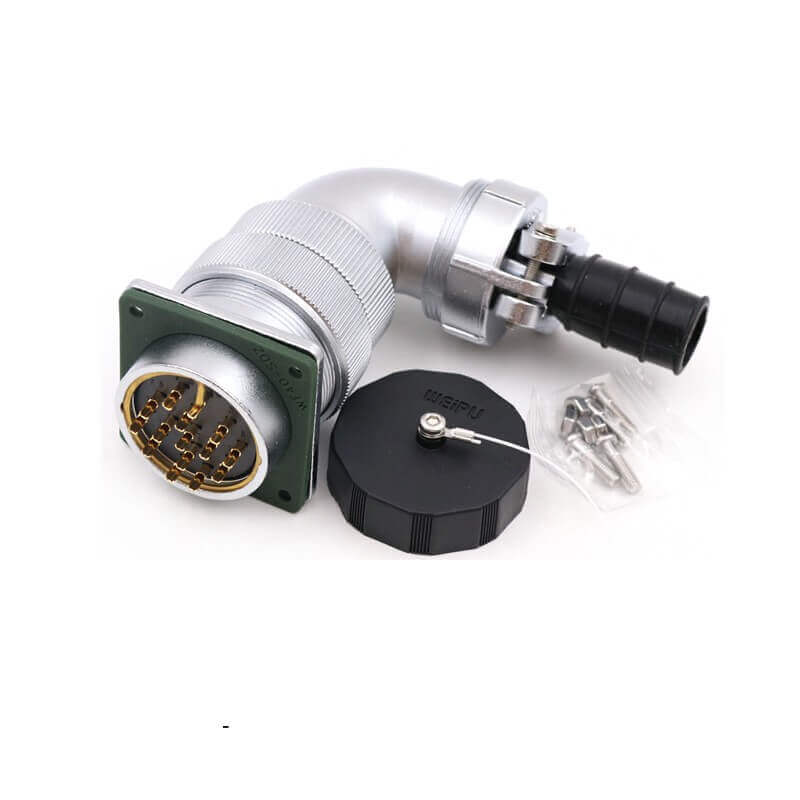

Elecbee Aviation Waterproof Connector WF40/15pin TV+Z Bending Right Angle Male Plug and Female Receptacle
SKU: EB-WF40J15TV-WF40K15Z
Favorites
Key Features
Feature
- Female socket, Male plug , Right angle, waterproof, Solder up, 15pin, 4-hole flange;
- Termination Type: Solder
- Easy quick connect and disconnect coupling;
- Options: 5/9/15/26/31 pins
- Hole Diameter: 40mm
- From the OEM Original Factory, same quality with much better price.
Main Application of WF40 Connectors:
- Applications: used in aviation, navigation, computers, communications, navigation, anti-theft devices, transportation, machinery and electronics, etc.
Show More
Specifications
Attribute
Value
Search
Connector Type
Plug, Receptacle
Mounting Type
Panel Mount
Termination
Solder
Contact Type
Male，Female Pin
Shell Finish
Chrome Plated
Number of Positions
15 Pin
Operating Temperature
-40℃~+85℃
Ingress Protection
IP65
Rated Current
10A
Rated Voltage
500VAC
Features
Waterproof
Connector Series
WF40
Color
Silver
Fastening Type
Threaded
Orientation
Right Angled
Shell Material
Zinc Alloy
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS
Cable Diameter
14AWG
Shell Size
40
Insulation Color
Black
Description
WF40 TV+Z 15pin
