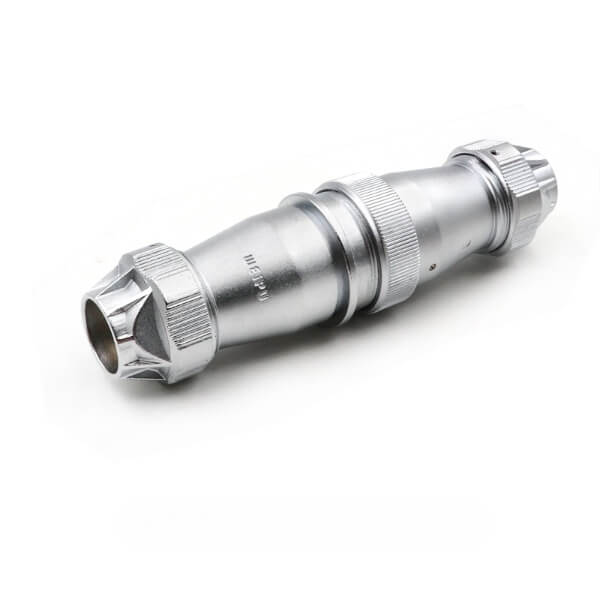

Elecbee Aviation Waterproof Connector 26pin Straight docking TE+ZE WF40 series Male Plug and Female Socket
SKU: EB-WF40J26TE-WF40K26ZE
Favorites
Key Features
Feature
- For cable, female and male, straight, waterproof, Solder up, 26pin;
- Termination Type: Solder
- Easy quick connect and disconnect coupling;
- Options: 5/9/15/26/31 pins
- Hole Diameter: 40mm
- From the OEM Original Factory, same quality with much better price.
Main Application of WF40 Connectors:
- Applications: used in aviation, navigation, computers, communications, navigation, anti-theft devices, transportation, machinery and electronics, etc.
Show More
Specifications
Attribute
Value
Search
Connector Type
Plug, Receptacle
Mounting Type
Cable Type
Termination
Solder
Contact Type
Male，Female Pin
Shell Finish
Chrome Plated
Number of Positions
26 Pin
Operating Temperature
-40℃~+85℃
Ingress Protection
IP67
Rated Current
10A, 25A
Rated Voltage
500VAC
Features
Waterproof
Connector Series
WF40
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS
Cable Diameter
14AWG, 11AWG
Shell Size
40
Insulation Color
Black
Description
WF40 26pin TE+ZE
