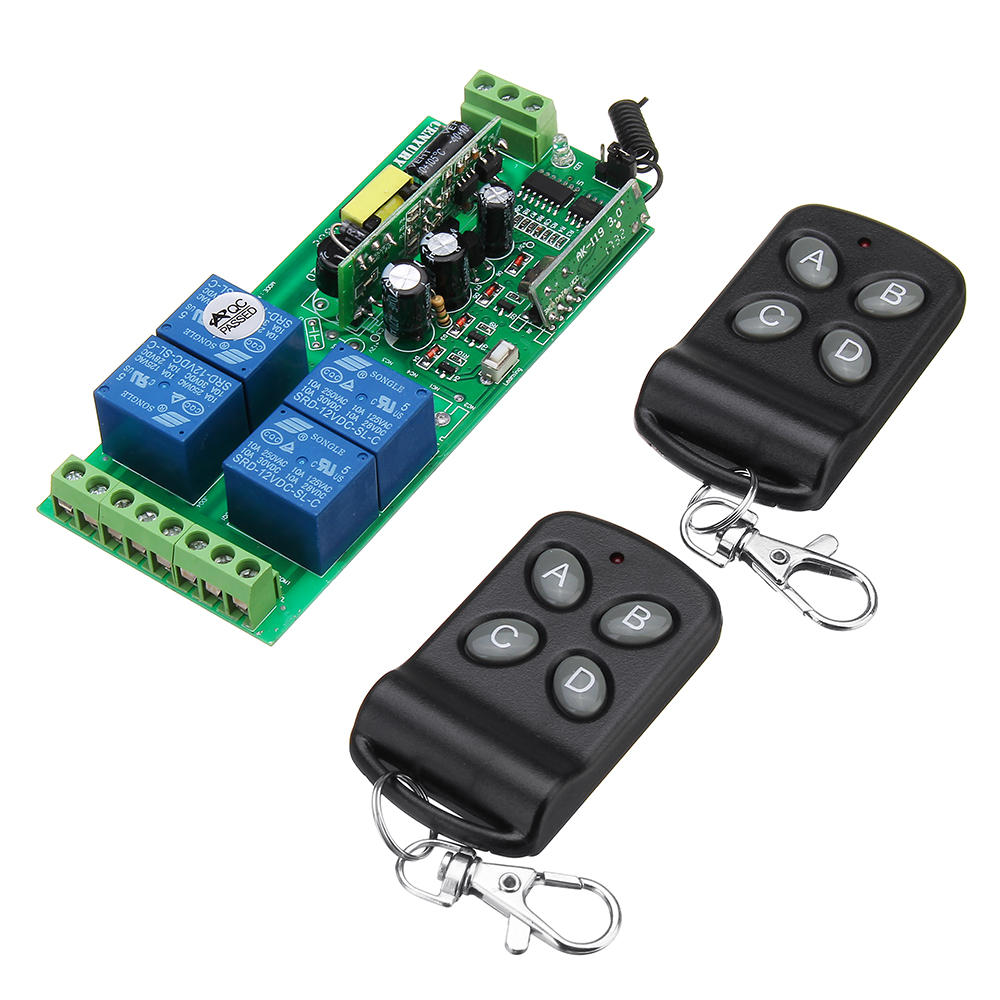

Elecbee 433MHz 220V Four Channel Lamps Remote Control Switch 4CH Wireless Remote Control Switch Learning

SKU: EB0042307

Favorites

Key Features

The multi-function four-way remote control switch of wide-voltage switching power supply adopts 10A relay, which can load large power appliances; learning single chip decoding can learn multiple remote controllers; simple and flexible operation; output mode can be selected and used conveniently by jumping switch, point-switching, self-locking and interlocking, and it is suitable for many applications in many fields; reserve data bit output adjustment port, which can pass through. It is convenient for customers to choose the corresponding key position values of remote controllers at different locations, and avoid the embarrassment that the old fixed key position can only be matched with a single type of remote controller. Output band voltage, easy to install.

Specification:

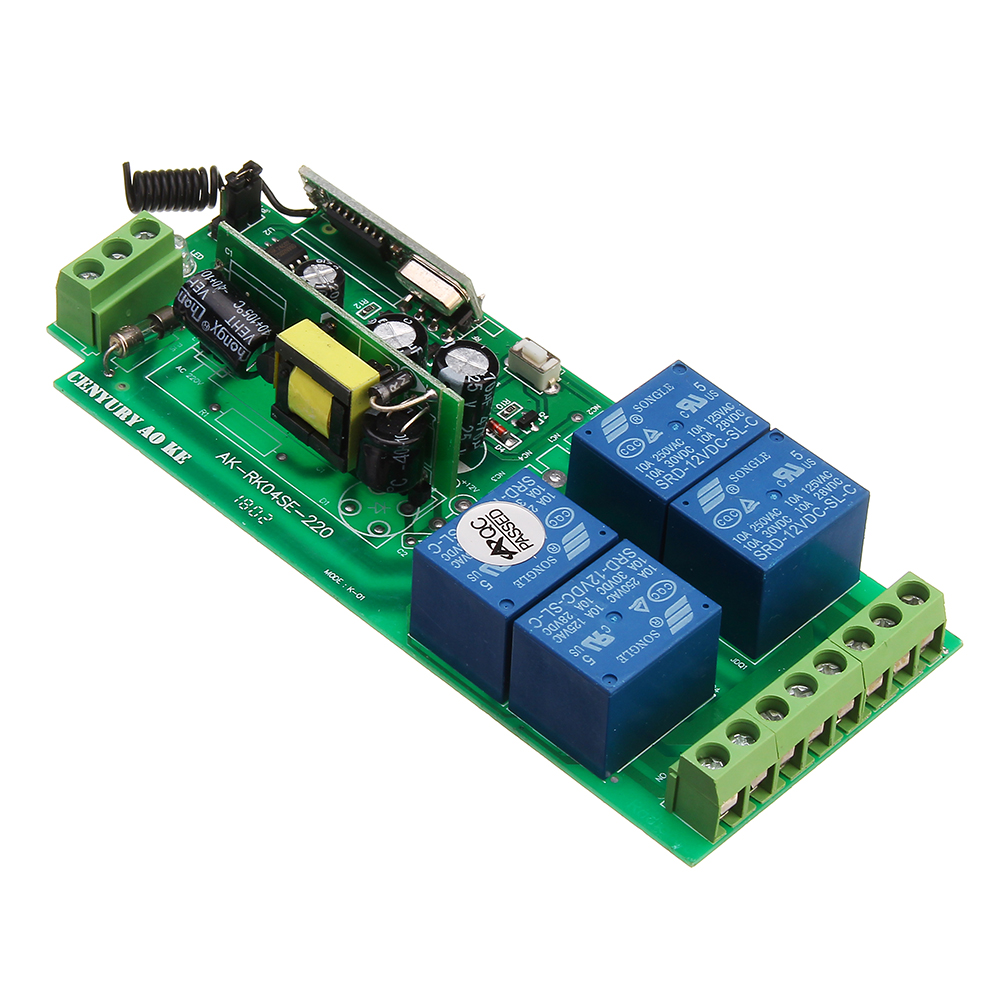

Model: AK-RK04S-220

Operating Voltage: AC85-250V

Working frequency: 433 MHz
Remote control distance: 10-30 meters

Standby Current: 10mA

Load: less than 1000 watts
Remote battery: L1028 23A 12V

Working mode: self-locking, jog and interlocking

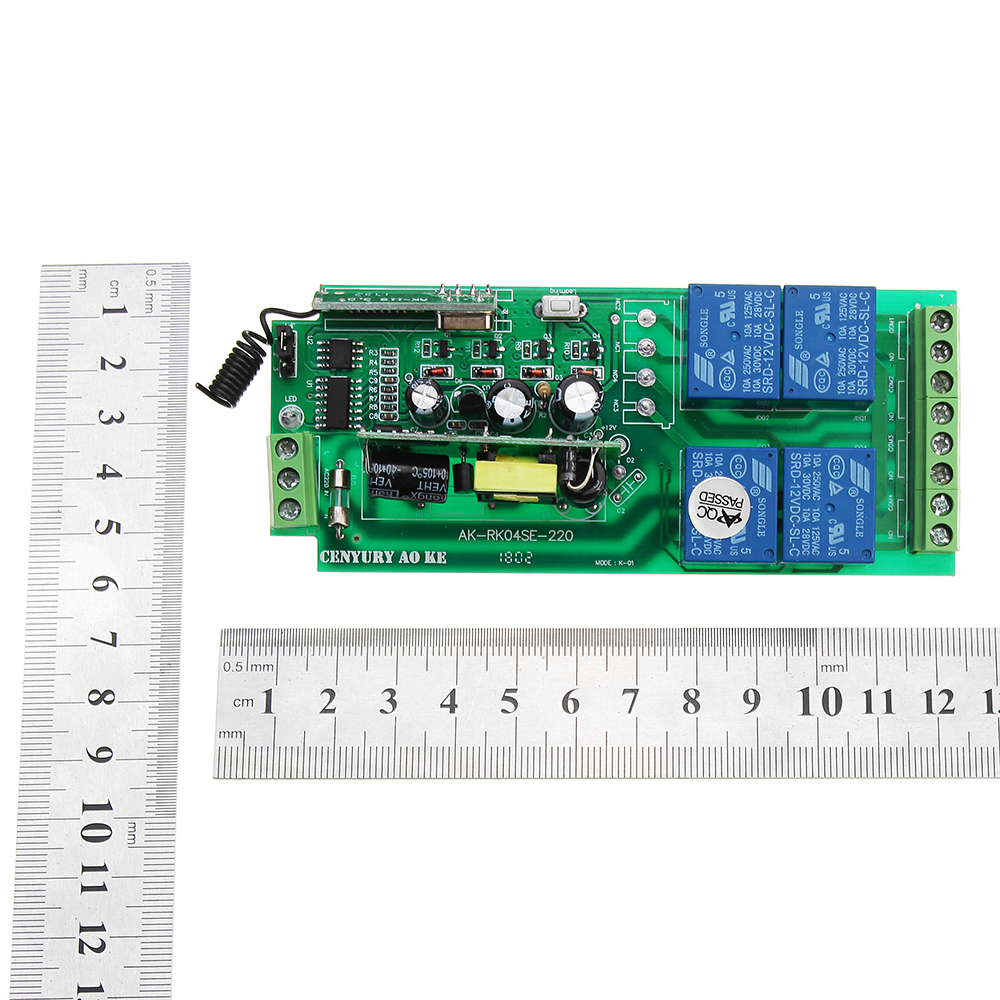

Dimension: 91 mm x 52 mm x 11 mm

Shell size: 93 x 54 x 40 mm

Learing method:

Turn on the 220V power supply, press and hold the learning button for three seconds, then press any button on the remote control. The indicator flashes, indicating that the learning is successful.

Note: This controller can learn the fixed code (PT2262, SC2260 chip, etc.) / learning code (EV1527, HS2240, etc.) 20 different encoding, any button remote control, beyond it will remove the earliest learned remote control.

Clear method:

Press and hold the learning button for about 8 seconds. The indicator will turn off and return to light.

Work mode switching:

Use the pin on the remote control switch to use the short circuit connection 1, 2, 3 to switch the working mode.

1. Jog - 1, 2, 3 short circuit vacant, no connection

2. Interlock - short 1, 2

3. Self-locking - short 2, 3

The meaning of self-locking/interlocking/jogging:

Interlock: Press the corresponding button of the remote control, the corresponding relay is turned on, and then press another remote control button; the relay is disconnected.

Non-lock, jog: Press the remote control button, the corresponding relay is turned on, release the remote control button; the corresponding relay is disconnected.

Self-locking: Press the remote control button once, the relay is turned on, press the remote control button again, the relay is disconnected.

Specification:

Model: AK-RK04S-220

Operating Voltage: AC85-250V

Working frequency: 433 MHz
Remote control distance: 10-30 meters

Standby Current: 10mA

Load: less than 1000 watts
Remote battery: L1028 23A 12V

Working mode: self-locking, jog and interlocking

Dimension: 91 mm x 52 mm x 11 mm

Shell size: 93 x 54 x 40 mm

Learing method:

Turn on the 220V power supply, press and hold the learning button for three seconds, then press any button on the remote control. The indicator flashes, indicating that the learning is successful.

Clear method:

Press and hold the learning button for about 8 seconds. The indicator will turn off and return to light.

Work mode switching:

Use the pin on the remote control switch to use the short circuit connection 1, 2, 3 to switch the working mode.

1. Jog - 1, 2, 3 short circuit vacant, no connection

2. Interlock - short 1, 2

3. Self-locking - short 2, 3

The meaning of self-locking/interlocking/jogging:

Interlock: Press the corresponding button of the remote control, the corresponding relay is turned on, and then press another remote control button; the relay is disconnected.

Non-lock, jog: Press the remote control button, the corresponding relay is turned on, release the remote control button; the corresponding relay is disconnected.

Self-locking: Press the remote control button once, the relay is turned on, press the remote control button again, the relay is disconnected.

Show Less

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

Wi-Fi

Wi‑Fi Standard

802.11B/G/N

Model

DESCRIPTIONIMAGE0

Show Similar Products >

Description

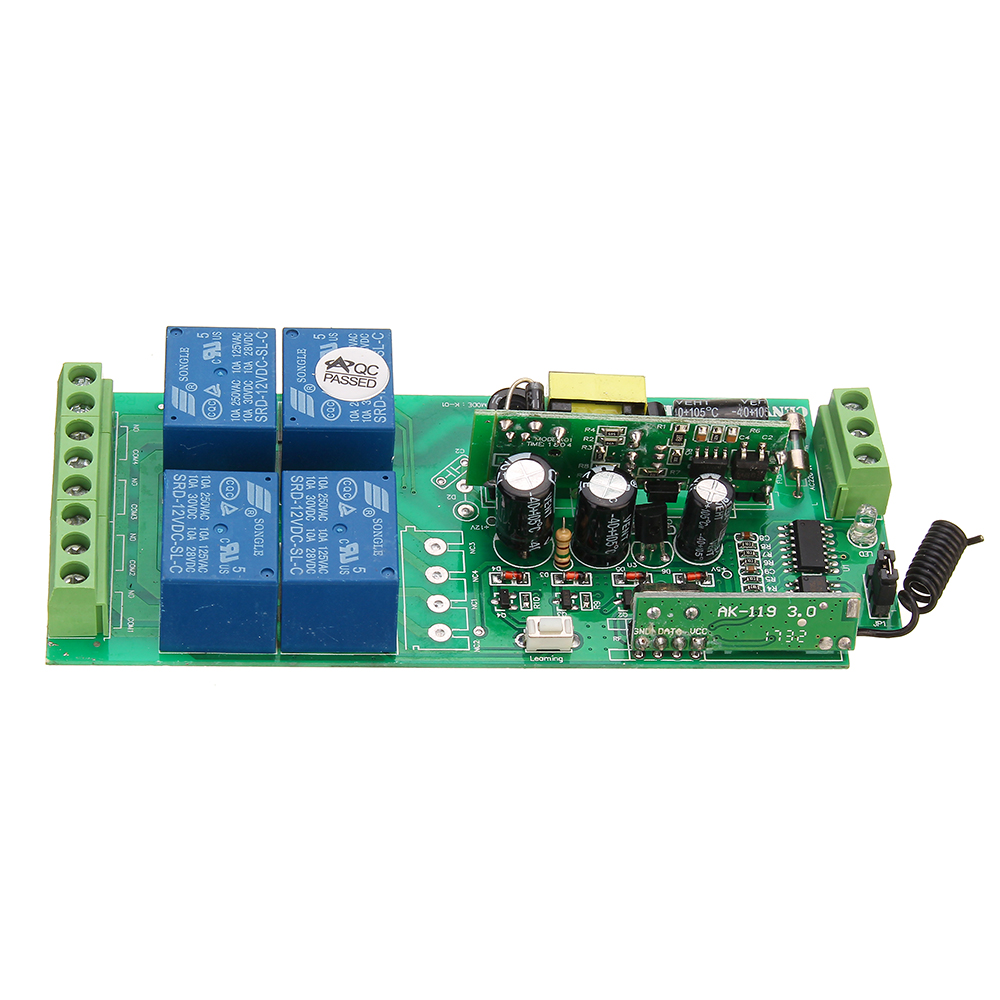

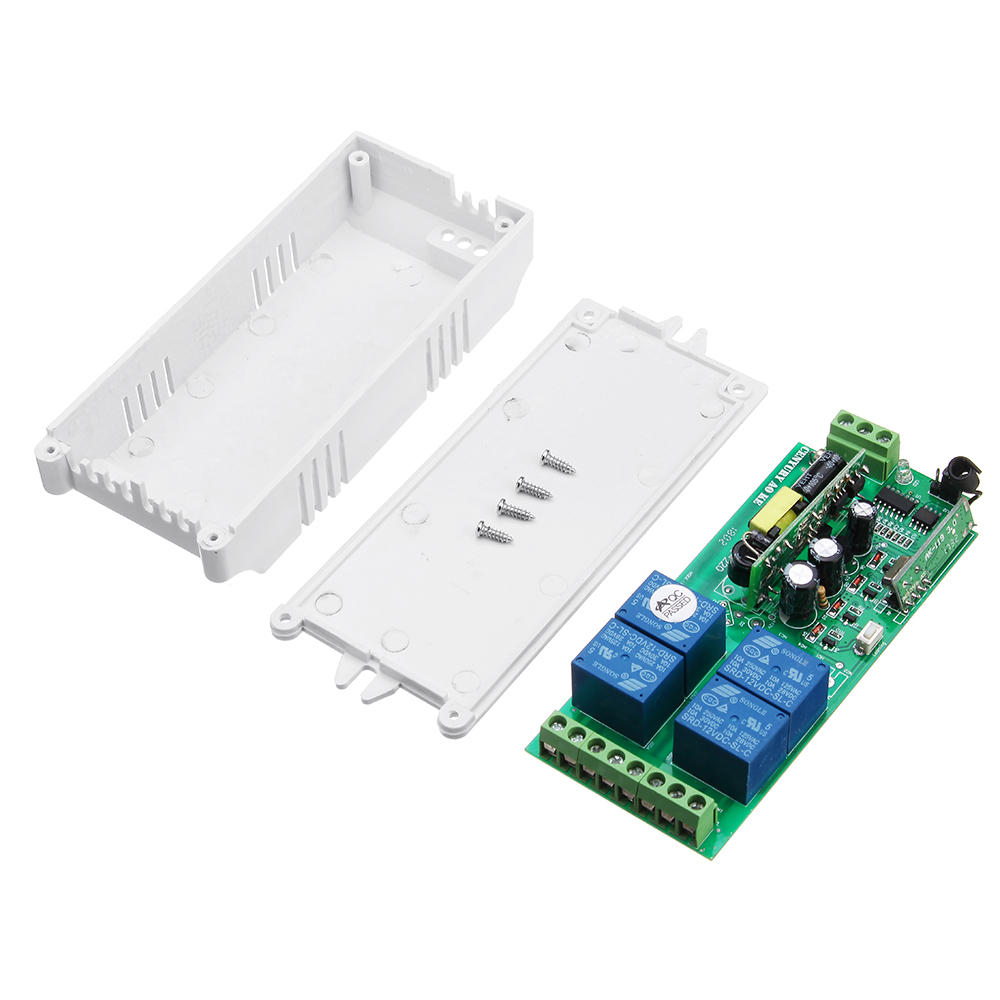

1 x 433 MHz 220V Remote Control Switch

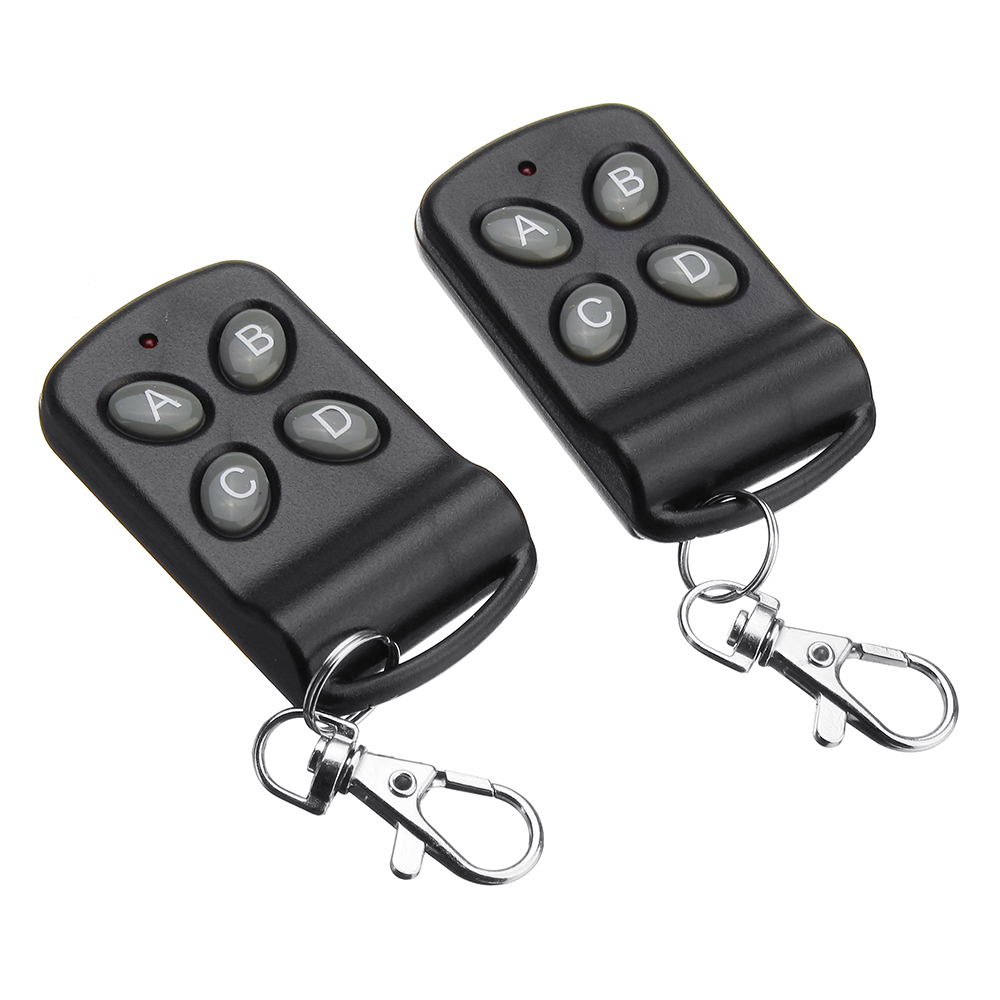

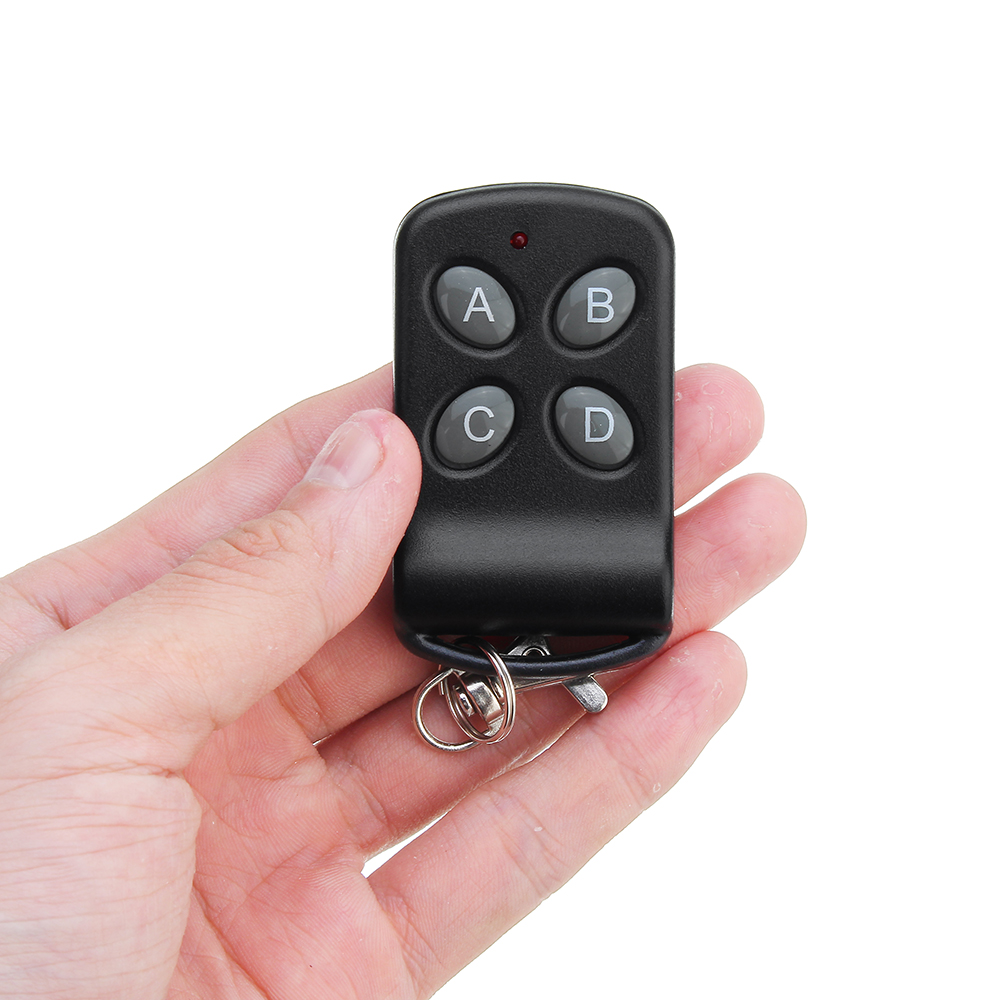

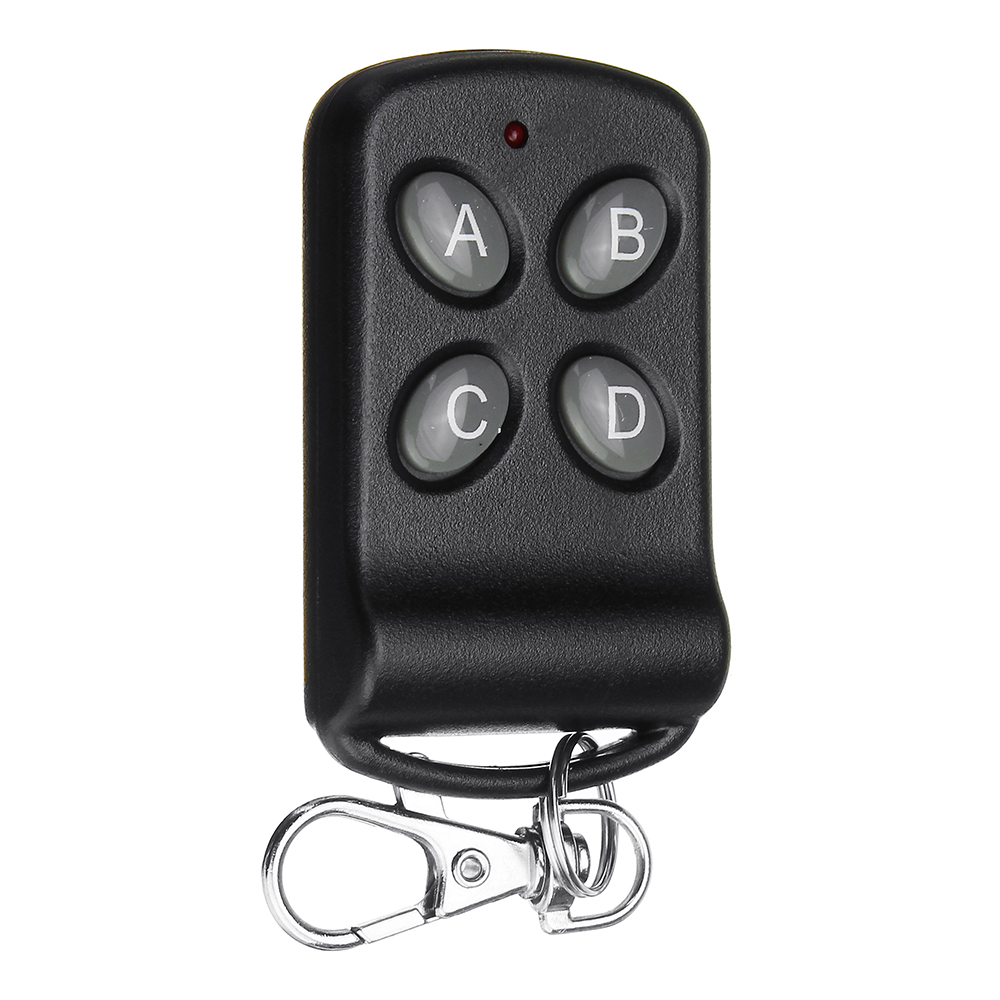

2 x Remote with battery
