Beitian BN-220 GNSS GPS Module with Built-In Antenna, M8030-KT, UART TTL, GPS GLONASS BeiDou Galileo

SKU: EB000445
Favorites

Key Features

INTEGRATED GNSS RECEIVER AND ANTENNA: Beitian BN-220 combines an M8030-KT positioning receiver and antenna in a compact module. It provides 72 search channels and 4M Flash that retains modified configuration after power is removed.

MULTI-CONSTELLATION POSITIONING: Supports GPS L1, GLONASS L1, BeiDou B1, Galileo E1, SBAS L1 and QZSS L1. The default mode is GPS + GLONASS + SBAS + QZSS, with configurable Galileo or BeiDou combinations.

UART TTL DATA OUTPUT: The 4-pin 1.00 mm connector provides GND, TX, RX and VCC. Select NMEA-0183 or UBX output, 4800–921600 bps and 1–10 Hz update rates; defaults are NMEA-0183, 9600 bps and 1 Hz.

COMPACT 3.0–5.5 V MODULE: Measures 22 x 20 x 6 mm, weighs 5.3 g and draws 50 mA during normal operation at 5.0 V. The package includes one BN-220 module, two connection cables and one round double-sided adhesive pad.

POSITION STATUS INDICATORS: A blue TX LED flashes when valid data is being output, while the red PPS LED begins flashing after a 3D fix. This version has no electronic compass; confirm voltage, pin order and host UART compatibility before connection.

Show More
In-Stock
Qty.
1
Unit Price
$ 14.32
Ext. Price
$ 14.32
$ 14.32
Qty.
Unit Price
Ext. Price
10+
$13.60
$ 136.00
20+
$12.89
$ 257.80
100+
$11.46
$ 1146.00
Inquiry for more quantity?
Description

BN-220 · MULTI-GNSS · UART TTL

Compact GNSS Receiver with Built-In Antenna

The Beitian BN-220 integrates an M8030-KT GNSS receiver, antenna, 4M configuration Flash and status indicators in a 22 x 20 x 6 mm module for embedded positioning projects.

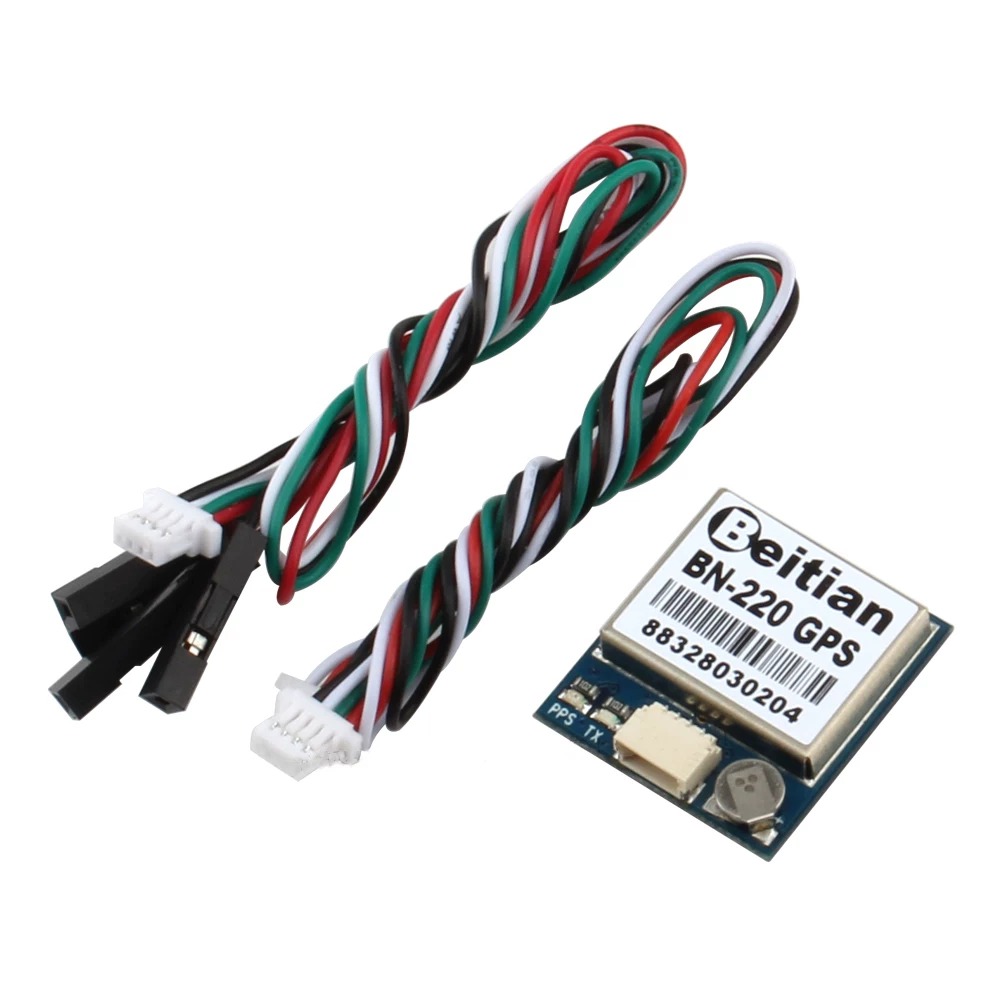

Beitian BN-220 GNSS GPS module with two connection cables

CORE POSITIONING FEATURES

Six Supported Satellite Systems

The receiver supports GPS L1, GLONASS L1, BeiDou B1, Galileo E1, SBAS L1 and QZSS L1. Its default configuration uses GPS + GLONASS + SBAS + QZSS. Supported alternative combinations include GPS + GLONASS + SBAS + QZSS + Galileo or GPS + BeiDou + SBAS + QZSS + Galileo.

72 ChannelsMulti-constellation signal search.
4M FlashRetains modified settings without power.
1–10 HzConfigurable navigation update rate.
No CompassGNSS positioning module without electronic compass.

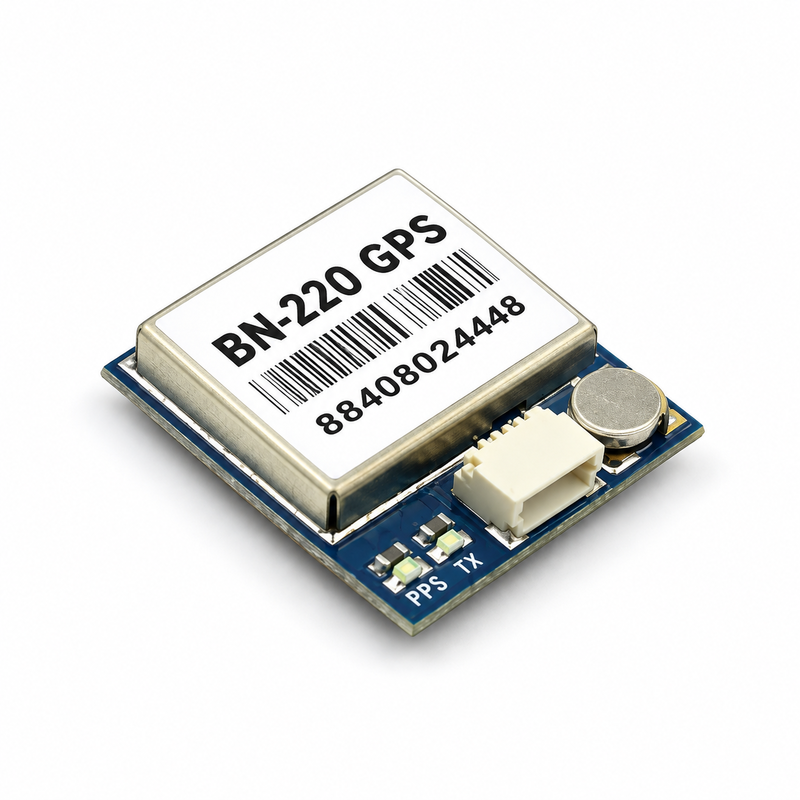

Beitian BN-220 GPS module showing integrated antenna housing 4-pin connector PPS and TX LEDs

POSITIONING PERFORMANCE

Sensitivity, Accuracy and Start Time

Tracking Sensitivity −167 dBm
Reacquisition Sensitivity −160 dBm
Horizontal Accuracy 2.0 m CEP, 2D RMS, with SBAS under open-sky conditions
Velocity / Time Accuracy 0.1 m/s at 95% with SA off / 1 μs
Cold / Warm / Hot Start 26 s / 25 s / 1 s

UART DATA INTERFACE

Configurable TTL Serial Output

Connect the module through its 1.00 mm-pitch 4-pin socket. Pin 1 is GND, pin 2 is TX data output, pin 3 is RX data input and pin 4 is the DC 3.0–5.5 V supply input. Verify the host connector orientation before applying power.

Interface / Level UART / TTL
Baud Rate 4800–921600 bps; 9600 bps default
Output Protocol NMEA-0183 or UBX; NMEA-0183 default
NMEA Sentences RMC, VTG, GGA, GSA, GSV, GLL
Update Rate 1–10 Hz; 1 Hz default

PHYSICAL AND ELECTRICAL DATA

Compact Integration Specifications

Brand / Model Beitian BN-220
Receiver Chip M8030-KT
Input Voltage DC 3.0–5.5 V; 5.0 V typical
Operating Current 50 mA at 5.0 V during normal operation
Module Size / Weight 22 x 20 x 6 mm / 5.3 g
Operating / Storage Temperature −40 to +85°C / −40 to +105°C
Operating Limits 50,000 m altitude, 515 m/s velocity, 4 g acceleration

STATUS AND APPLICATION

Visible Data and Position-Fix Feedback

The blue TX indicator flashes when valid serial data is present. The red PPS indicator remains off before positioning and flashes after a 3D fix. The module is intended for compatible embedded navigation, position logging, robotics and development systems that accept UART TTL GNSS data.

Important Integration NoteThis BN-220 version does not include an electronic compass. Confirm the 1.00 mm connector orientation, TTL signal compatibility, supply voltage and required constellation configuration before installation. Open-sky conditions are required for the specified SBAS-assisted horizontal accuracy.

PACKAGE CONTENTS

Module, Cables and Mounting Pad

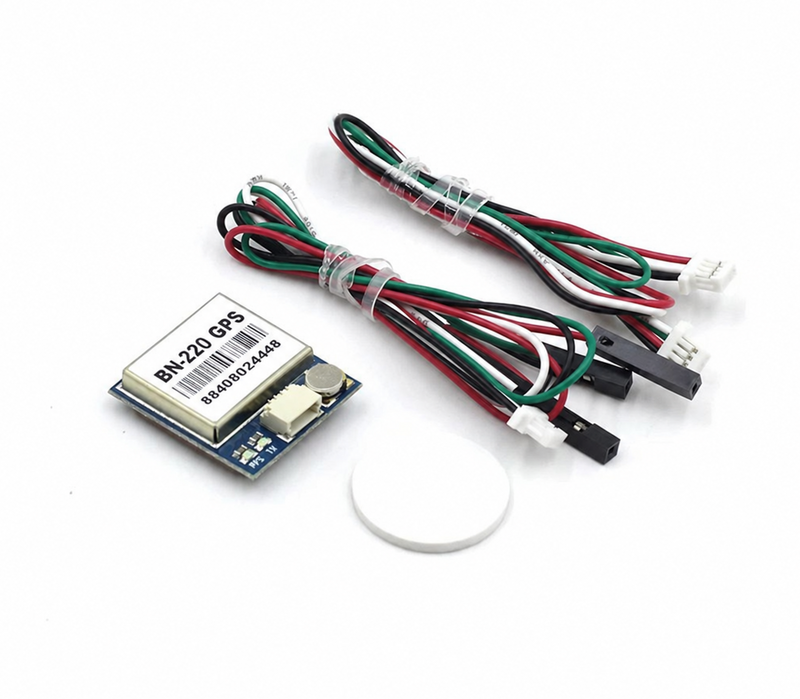

Beitian BN-220 GNSS module package with two cables and round double-sided adhesive pad
Included Items1 x Beitian BN-220 GNSS module · 2 x connection cables · 1 x round double-sided adhesive pad
