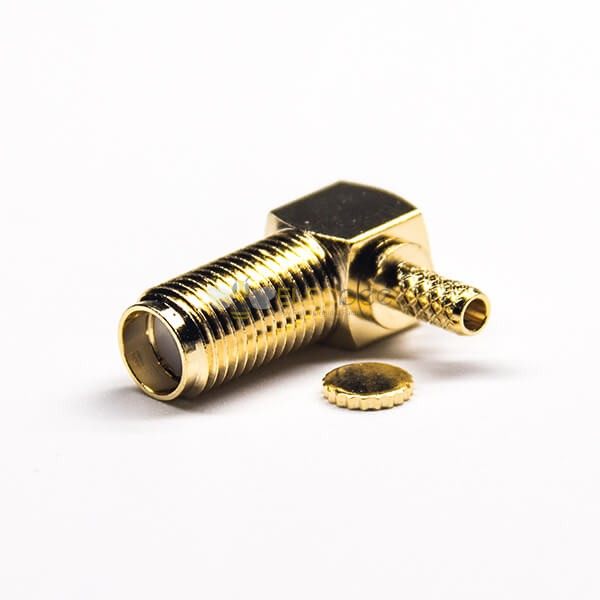

Elecbee 20pcs RF Coaxial connector Standard SMA Jack Right Angle Crimp for Cable
SKU: 20XEB-007-0235
Favorites
Key Features
SMA Female Jack 50 Ohms RF coaxial connector for DC to 6 GHz signal connections.
Fit and installation Right angle panel mount with front nut bulkhead design uses crimp termination.
Materials and mating Brass body with gold plated brass contacts and threaded mating for a secure connection.
RF applications SMA panel connector for RF enclosures, instrument interfaces and microwave test systems. Supplied as a 20 piece pack.
Fit and installation Right angle panel mount with front nut bulkhead design uses crimp termination.
Materials and mating Brass body with gold plated brass contacts and threaded mating for a secure connection.
RF applications SMA panel connector for RF enclosures, instrument interfaces and microwave test systems. Supplied as a 20 piece pack.
Show More
Specifications
Attribute
Value
Search
Connector Type
Jack
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Bulkhead - Front Side Nut
Termination
Crimp
Contact Type
Female Pin
Shell Finish
Gold Plated
Impendance
50 Ohms
Connector Series
SMA
Color
Gold
Fastening Type
Threaded
Orientation
Right Angled
Shell Material
Brass
Contact Material
Brass
Contact Finish
Gold Plated
Frequency Range
DC~6GHz
Related Resources
Shopping Guide
Shipping | Delivery Period | Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. Express: 3-7 days. Standard Post: 7-20 days. | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | We offer express and standard delivery services. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Recommended For You
Reviews(5)
4.4
5★
60%(3)4★
20%(1)3★
20%(1)2★
0%(0)1★
0%(0)All reviews come from verified purchasers
E
Used in a WiMAX setup—impressed by the low VSWR and durable brass body. The Teflon insulator makes a noticeable difference in performance.
L
Perfect for my GPS antenna build—gold plating ensures solid connectivity and the 90° crimp design saves space. Works flawlessly up to 6 GHz as advertised.
E
Solid connectors for the price, though one had a slightly misaligned pin. Still reliable for my vehicle tracking project and handles temp swings well.
S
Good quality SMA connectors with consistent 50-ohm impedance. Crimping took some practice, but signal loss is minimal even at high frequencies.
D
Exactly as described—right-angle crimp style fits tight spaces in my handheld radio mod. Gold plating resists corrosion even outdoors.
