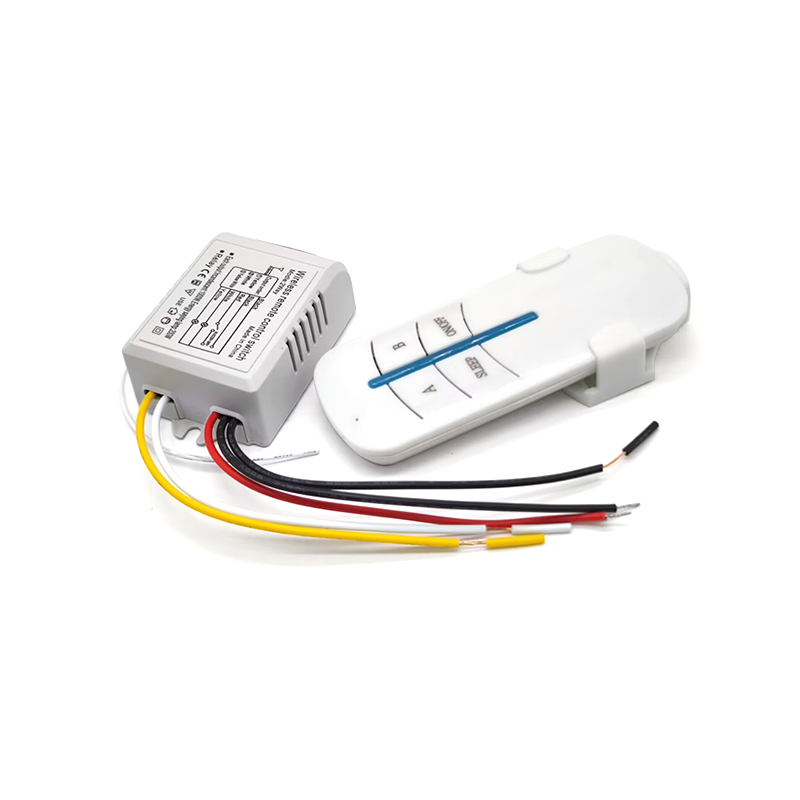

Elecbee 2 Channel Wireless Remote Control Switch - AC185V-265V, 20-30m Range

SKU: EB0042185

Favorites

Key Features

Easy to operate which can fully turn on or turn off the whole circuit.
With the capability of penetrating walls and anti-disturbance.
Fast and easy installation, not obstructed by walls, capable of connecting any loads
Remote controller and switch can be used simultaneously for ease and flexibility
Equipped with high load relay,high voltage capacitor and high quality receiver.
Apply electrical: Droplight, crystal lamp, modern low-pressure lamp, absorb dome light, day flower lamp, fluorescent lamp, energy-saving lamps, exhaust fan, etc...
Great use in house ,stairs aisle ,toilet ,warehouse,factory and so on.

Specifications:

Each group can bear the 1000W incandescent light bulb and 300W energy saving lamp.
Working Voltage:AC180V-240V 50Hz/60Hz

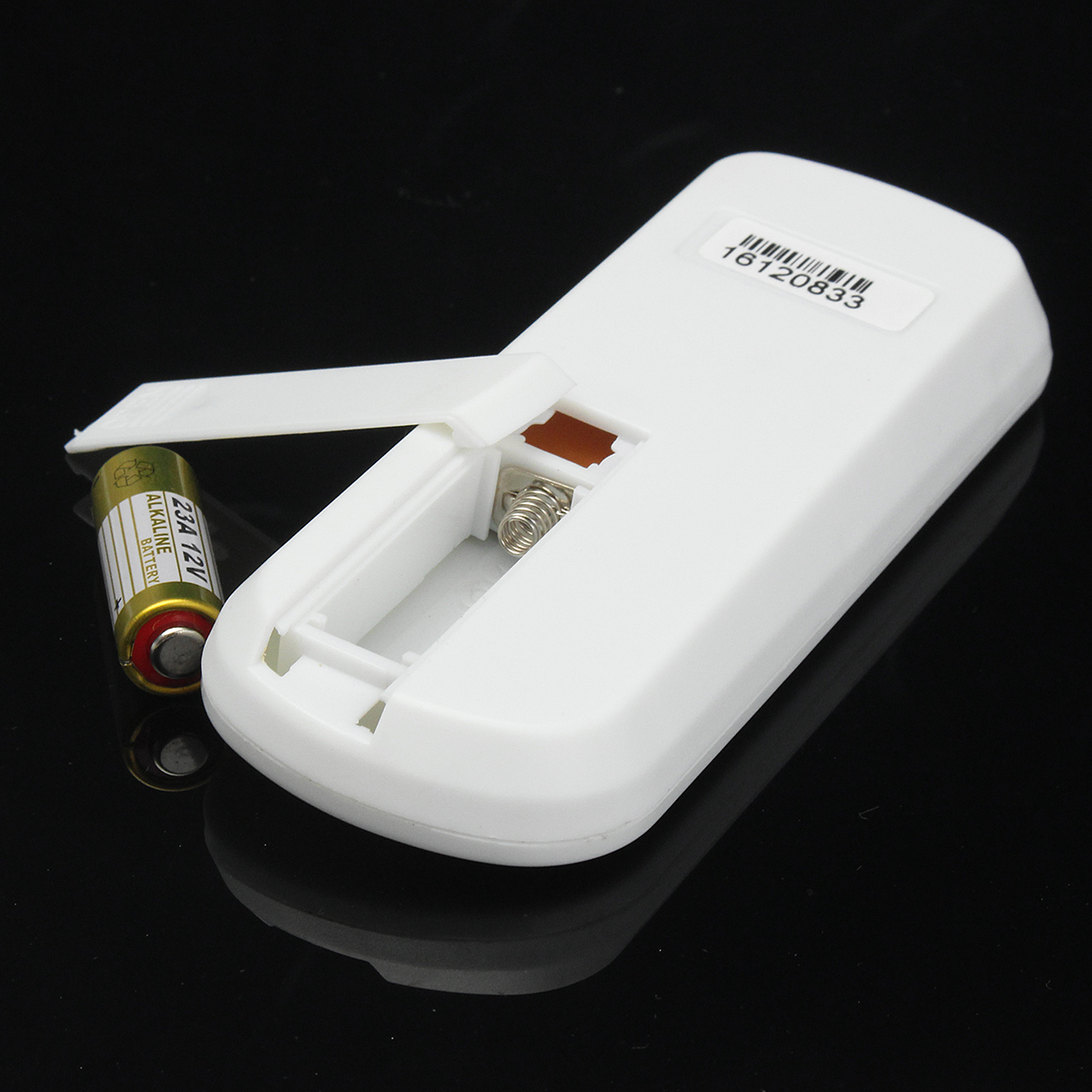

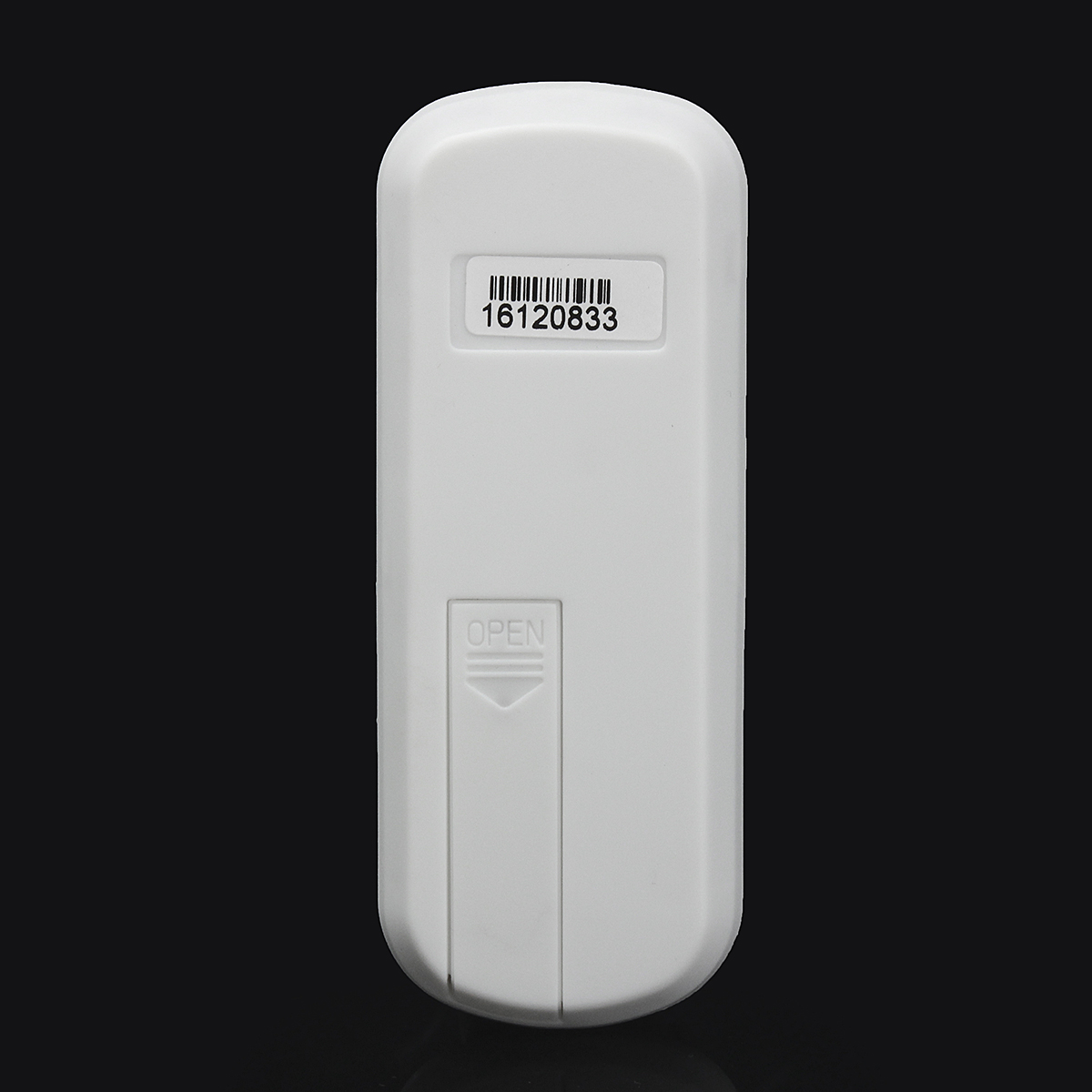

Remote control battery:12V 23A battery (Battery is not include)
Remote Control Distance:20M
The total load power: 800W

Instructions:

1.A/1 will light after power on.

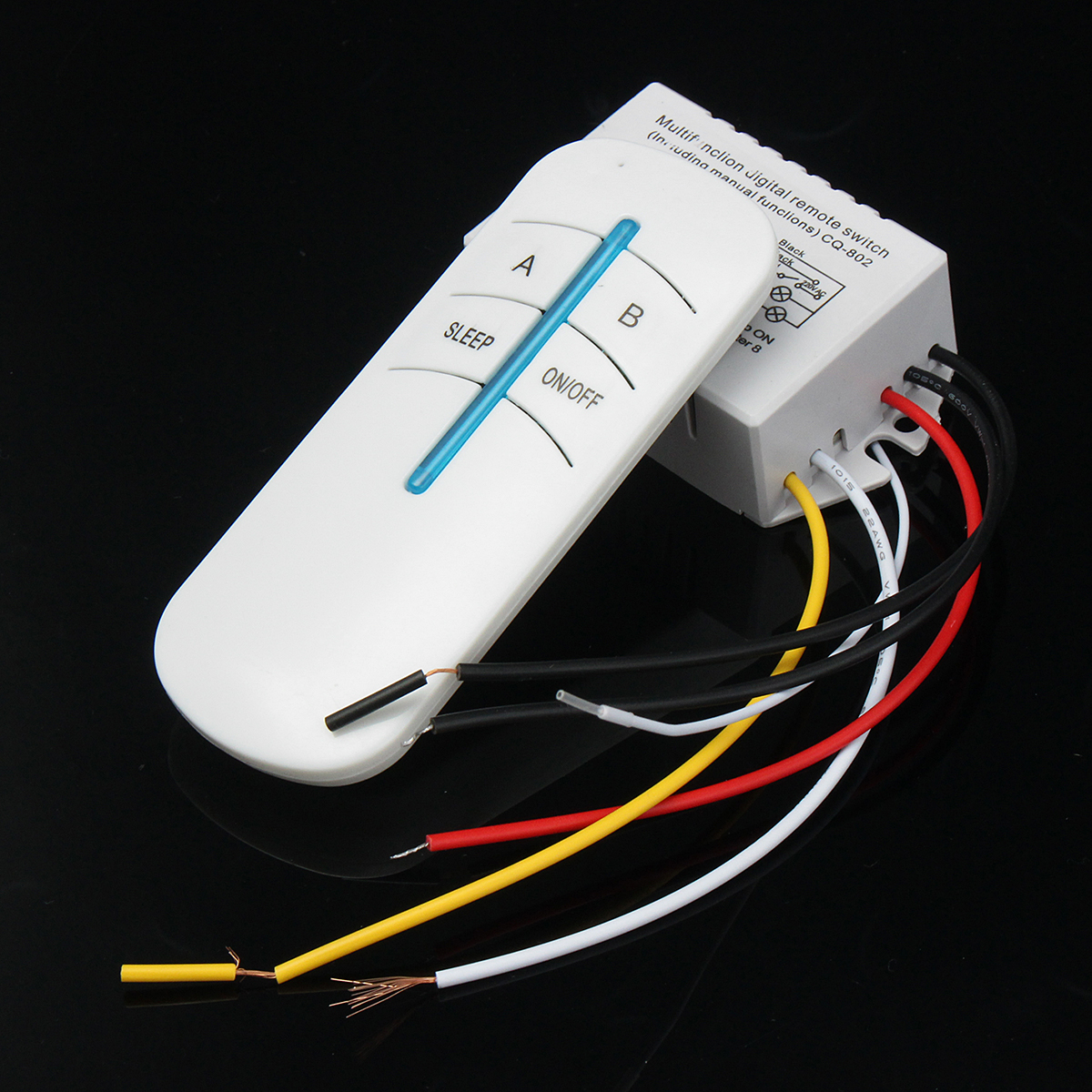

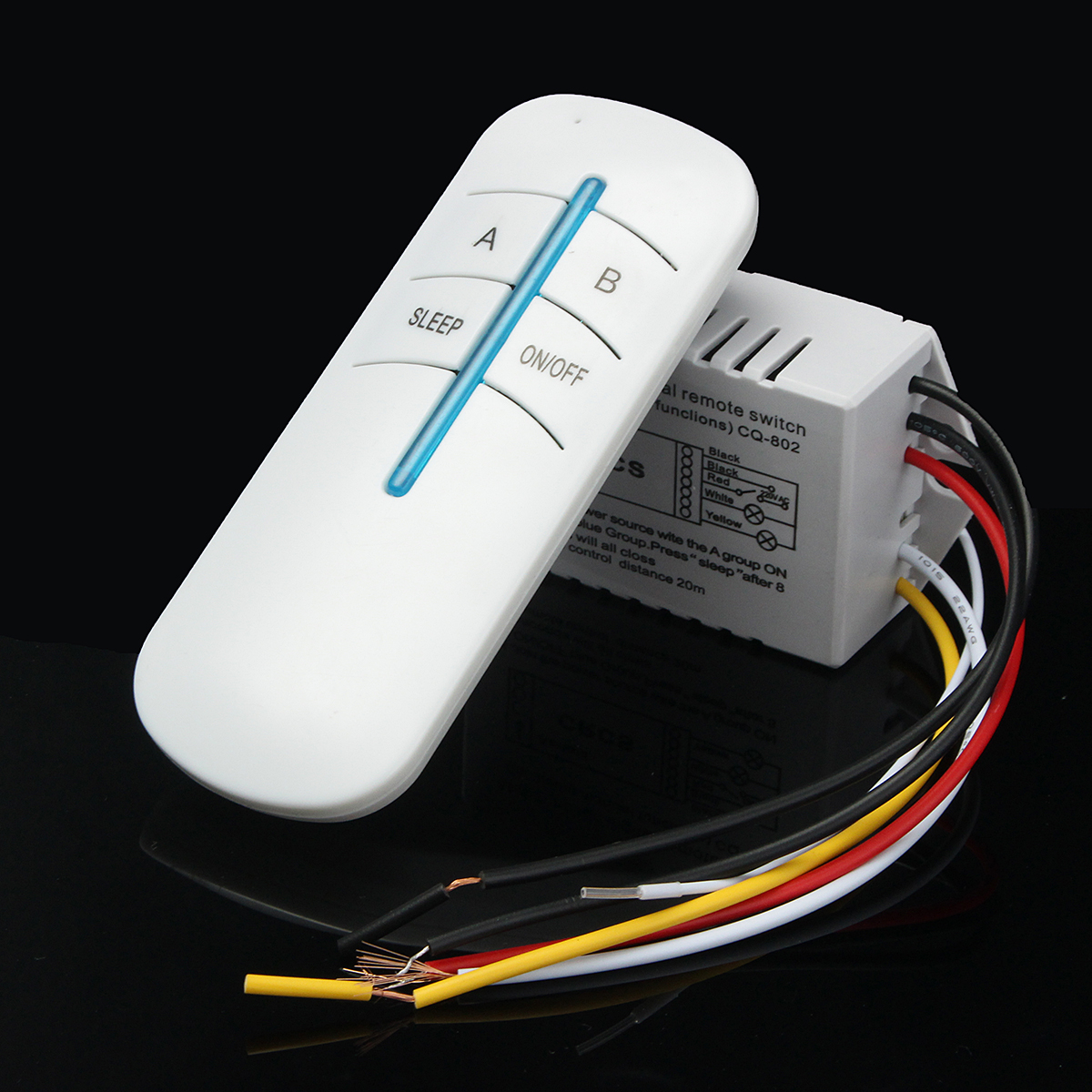

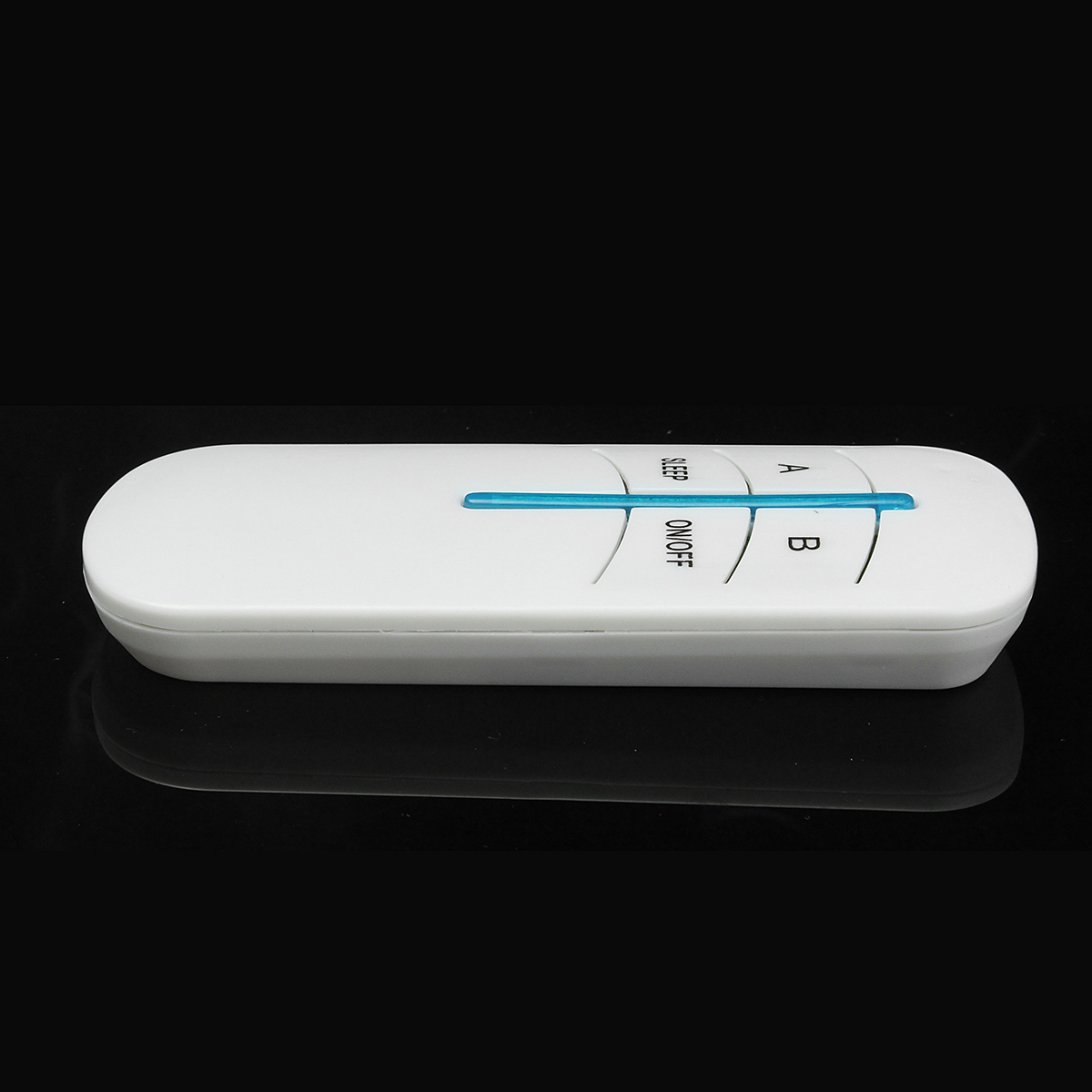

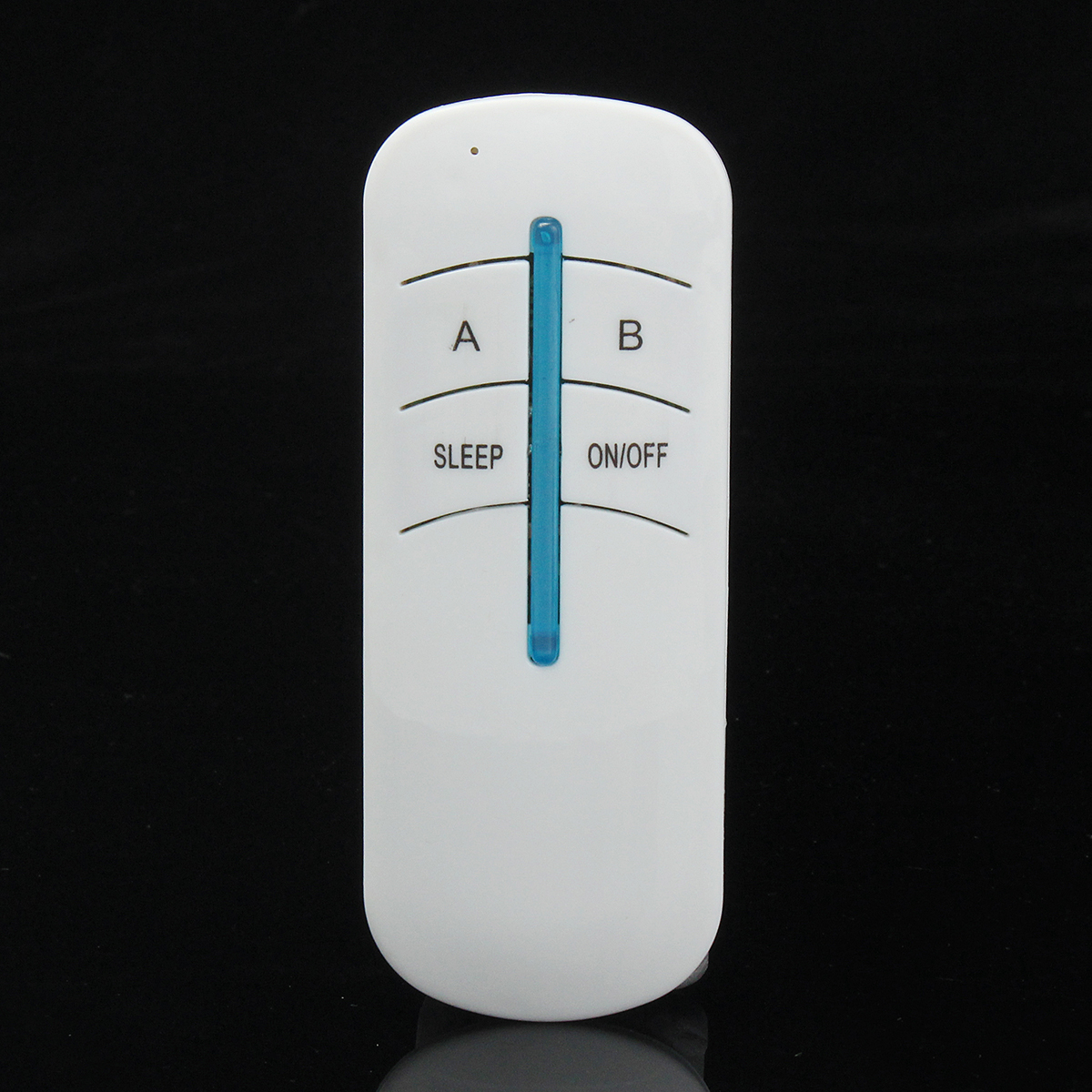

2.A/1 uses to turn on/off the blue group,B/2 uses to turn on /off the green group,"ON"/"OFF" means turn on/off the whole item.
3.Manual lighting sequence(wall switch control):A/1,B/2,the whole circuit will be turned on.

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

Wi-Fi

Wi‑Fi Standard

802.11B/G/N

Model

AC185V

Show Similar Products >

Description

Main function description:

This switch has a segmentation function. The first power-on is A, the second power-on is B, and the third power-on is AB.

The remote control switch is designed with two modes: manual and remote control. Restarting after a power outage is the same as disconnecting and reconnecting the wall switch, so it will light up after a power outage (you can turn off the wall switch before going out).

Wiring instructions:

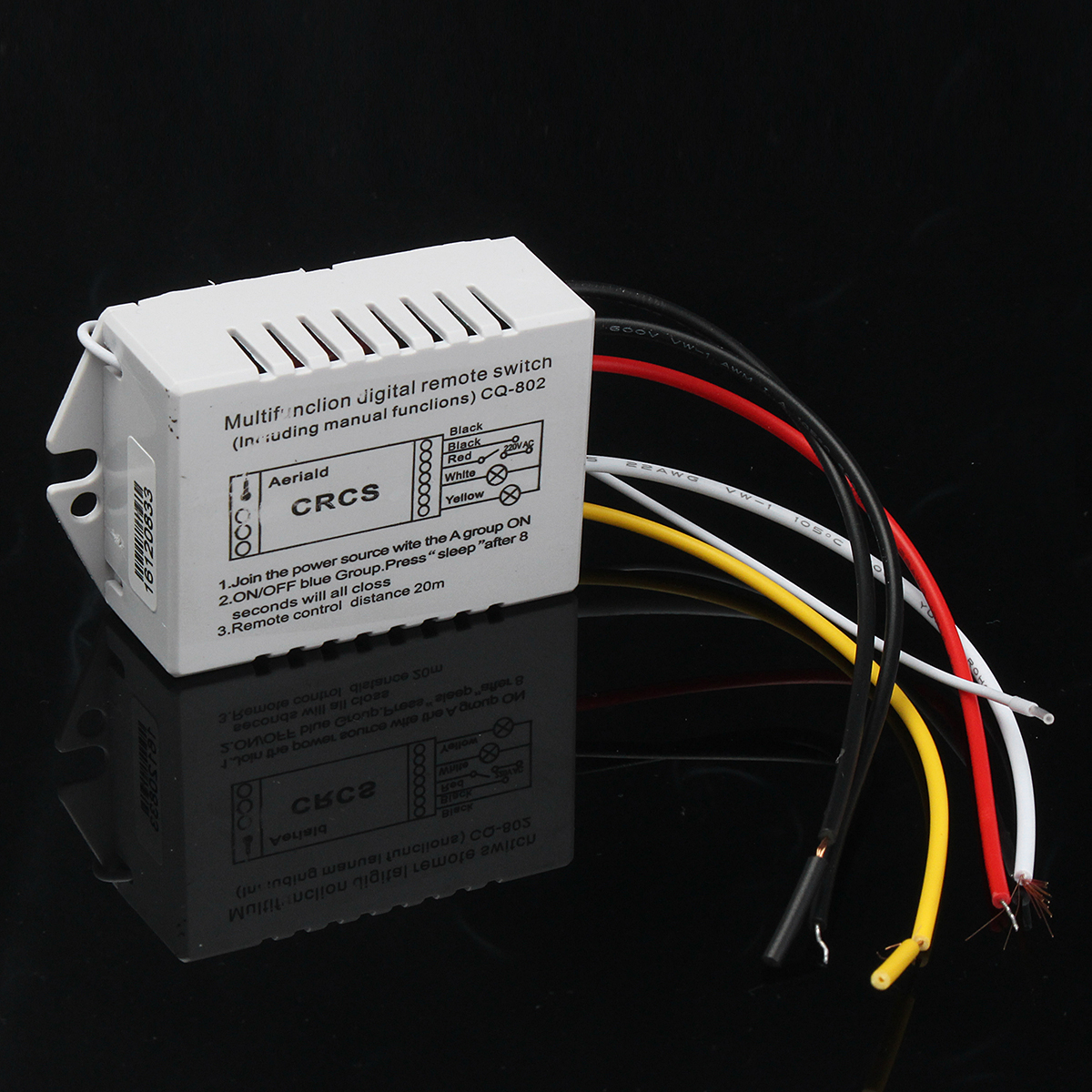

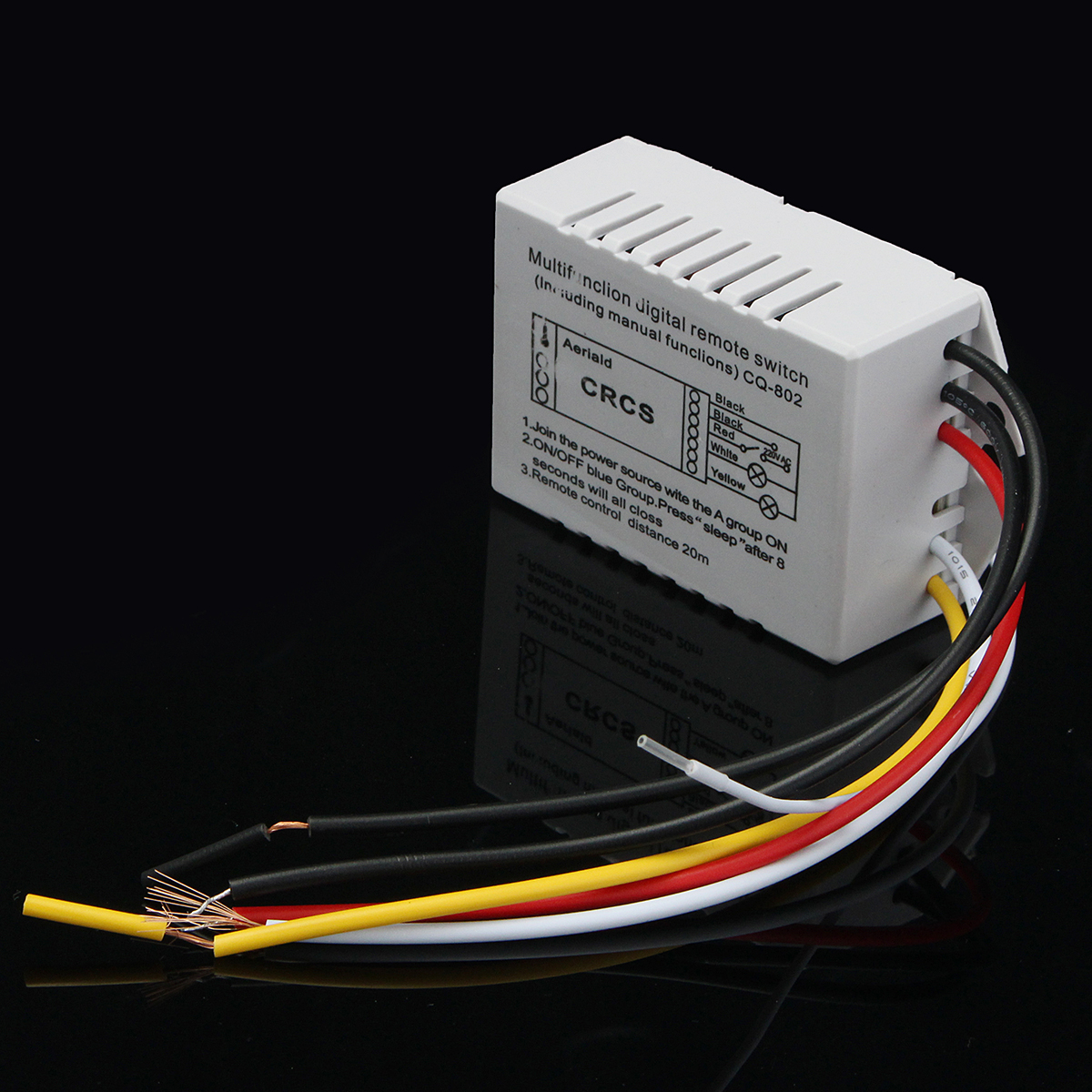

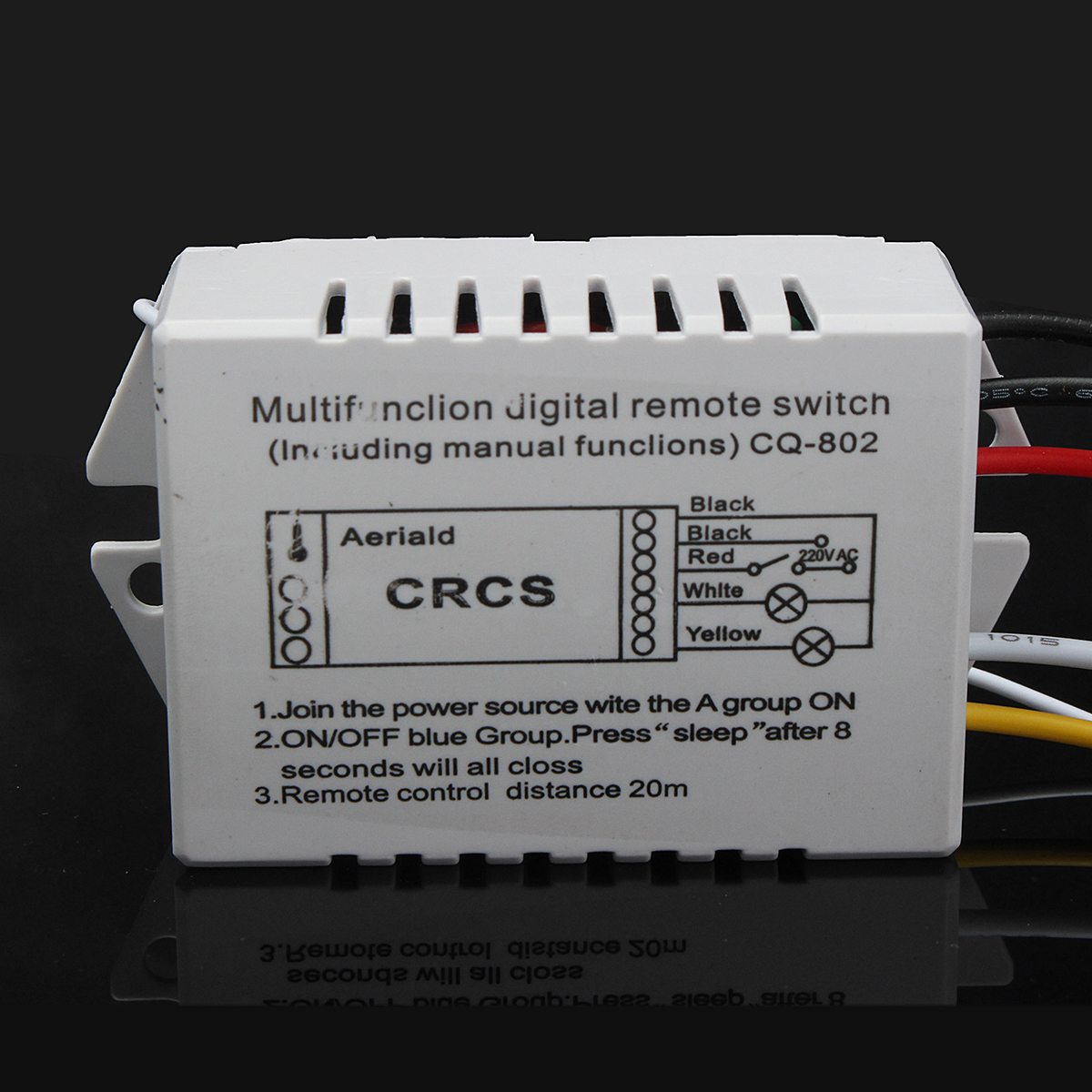

The remote control switch receiver is installed inside the lamp or in the circuit, not in the wall switch. The red and black wires of the receiver are the input end, connected to the 220V power supply, the red is connected to the live wire, the black is connected to the neutral wire, the blue and the other black are the output end, connected to the load, the blue is the output live wire, the black is the neutral wire, the two black wires can be distinguished, and the white thin wire is the antenna.

2-Channel-Port-180-240V-ONOFF-Wireless-Digital-Remote-Control-Light-Wall-Switch-20M-1414295
