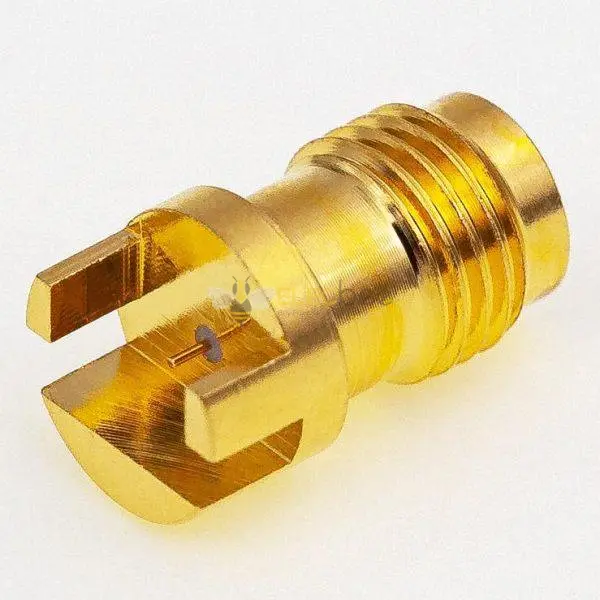

Elecbee 2.4mm Female PCB Connector, Φ7.5mm / .295″ Flange Jack, Φ0.3mm / .012″ Pin
SKU: EB-DRF-0042
Favorites
Key Features
- 2.4mm female PCB connector with durable flange jack design.
- 6-pin male straight connector with IP67 waterproof rating.
- Screw-joint and shielded for secure, stable connections.
- Compatible with 0.3mm pin size for precise signal transmission.
- Ideal for industrial use with M16 A-coding cable compatibility.
Show More
Description
Part Number:EB-DRF-0042
Description: 2.4mm Female PCB Connector, Φ7.5mm / 0.295″ Flange Jack with Φ0.3 x (L) 4.6mm / 0.012 x 0.181inch Pin Terminal.
ThisEB-DRF-0042, 2.4mm female PCB connector with size Φ7.5mm / 0.295″ flange jack, Φ0.3 x (L) 4.6mm / 0.012 x 0.181inch pin terminal, frequency range from DC to 50GHz, 50Ω impedance, VSWR 1.15:1 (max) for DC~50GHz, 750V withstanding voltage, ≥3000mΩ insulation resistance, 500 cycles durability and -55°C~+165°C operating temperature.
Advantages
- Small Size
- High Reliable
- Good Mechanical Performance
- Wide Frequency Range from DC to 50GHz
Applications
- General Purpose Test
- RF PCB Connection
- Rack and Panel Mount Application
- Φ0.3 x (L) 4.6mm / 0.012 x 0.181inch Pin
Key Features
| Polarity | Standard |
| Interface | 2.4mm |
| Connector Type | Jack |
| Connector Gender | Female |
| Impedance | 50Ω |
| Body Shape | Straight |
| Body Mounting | PCB Solder Flange |
| Attachment Method | Solder |
Performance Features
| Frequency Range | DC~50GHz |
| VSWR： | DC~50GHz: 1.15:1 (Max) |
| Contact Resistance | Centre Conductor ≤3.0mΩ |
| Outer Conductor ≤2.0mΩ | |
| Insulation Resistance | ≥3000mΩ |
| Withstanding Voltage | 750V |
| Durability | 500 Cycles |
| Operating Temperature | -55℃~+165℃ |
Material Specifications
| Housing | Type 303 Stainless Steel |
| Polished & Passivated | |
| Centre Contact | Beryllium Copper Plated |
| Gold (MIL-G-45204) | |
| Insulators | PEI or PEI & PTFE |
