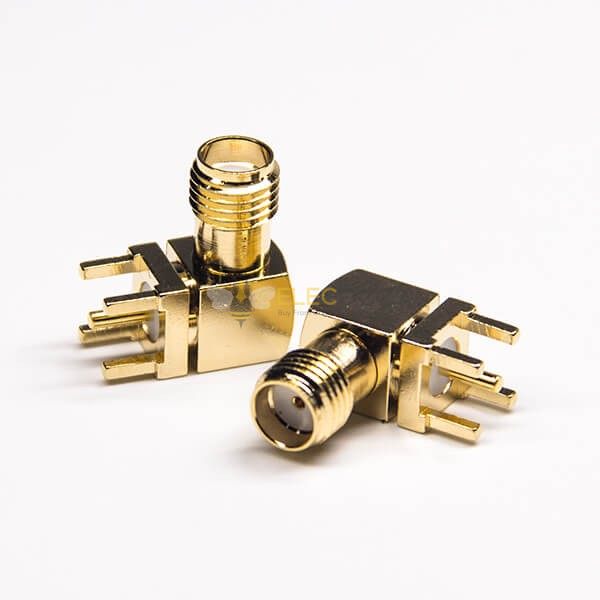

Elecbee 20pcs RF Coaxial connector Standard SMA Jack Right Angle Solder Type for PCB mount

SKU: 20XEB-007-0271

Favorites

Key Features

Features:

SMA Connector,Female,Angled/90°,DIP Type,PCB Mount,50Ohm,Gold Plating
Excellent electrical performance up to 18GHz with low reflection;
Thread type coupling mechanism ensure small loss and high security in compact design;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Appliance:

Aerospace and Defense:xa0Hand-held field Device and Instrumentation
Technology: Instrumentation
Commercial Vehicle: Bluetooth and GPS
Telecommunications: Wireless Base Stations, Cellular Mobile System
Data/Communications:Wifi, WiMAX
Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System

Reviews

ELECBEE

All reviews come from verified purchasers

1 stars

2 stars

3 stars

20%

4 stars

5 stars

60%

B****b

Perfect for my GPS module project. The gold plating and 90° design saved space on the PCB, and signal integrity up to 6GHz is solid. Great value for 20pcs.

B****e

Good quality SMA jacks with consistent impedance. Soldering was easy thanks to the DIP type mount. One arrived slightly bent, but overall reliable for RF builds.

k****e

Exactly as described – brass body with gold plating holds up well under thermal cycling. Used in a vehicle tracking prototype and performed flawlessly at 5.8GHz.

B****r

Decent connectors for the price. Electrical specs match the listing, though the right-angle alignment could be more precise during soldering. Works, but needs care.

C****S

Impressed by the low VSWR and build quality. Using them in a WiMAX base station test board – the 50-ohm stability makes a noticeable difference in signal clarity.
