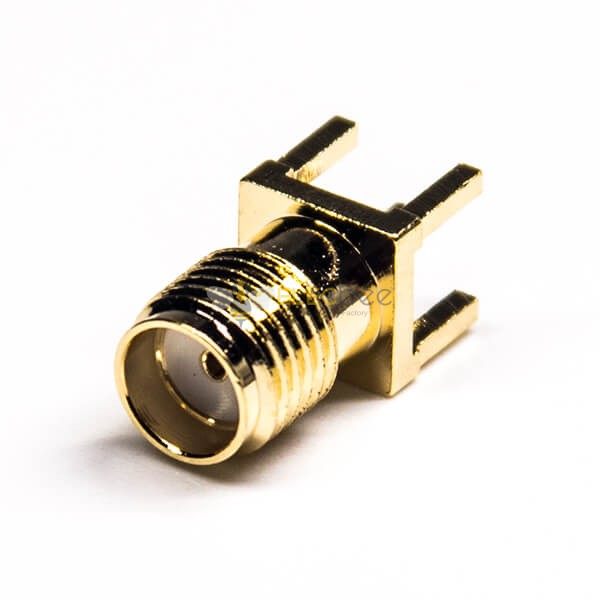

Elecbee RF Coaxial connector Standard SMA Jack Straight Solder Type for PCB mount

SKU: EB-007-0296

Favorites

Key Features

Features:

SMA Connector,Vertical Type/180°,Female,Through Hole,PCB Mount,50Ohm ,Gold Plating
Excellent electrical performance up to 18GHz with low reflection;
Thread type coupling mechanism ensure small loss and high security in compact design;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Appliance:

Aerospace and Defense:xa0Hand-held field Device and Instrumentation
Technology: Instrumentation
Commercial Vehicle: Bluetooth and GPS
Telecommunications: Wireless Base Stations, Cellular Mobile System
Data/Communications:Wifi, WiMAX
Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System

Reviews

ELECBEE

All reviews come from verified purchasers

1 stars

2 stars

3 stars

20%

4 stars

5 stars

60%

M****e

Perfect for my RF design project. The gold plating and Teflon insulator ensure clean signal up to 6 GHz. Easy to solder on PCB, and the 1/4-36 thread coupling is secure.

J****a

Solid build quality for a budget SMA jack. Works well in my WiMAX module. VSWR is stable, and the brass body with gold finish resists corrosion.

I****i

Exactly as described—50 ohm impedance and low contact resistance. Used in a vehicle tracking prototype and performs reliably under vibration.

N****e

Good connector for the price. Soldering requires care due to small pins. Performance is solid up to 6GHz, though I expected tighter tolerances.

A****y

Reliable RF connection on my wireless base station board. The durability rating of 500+ cycles is accurate—still tight after repeated mating.
