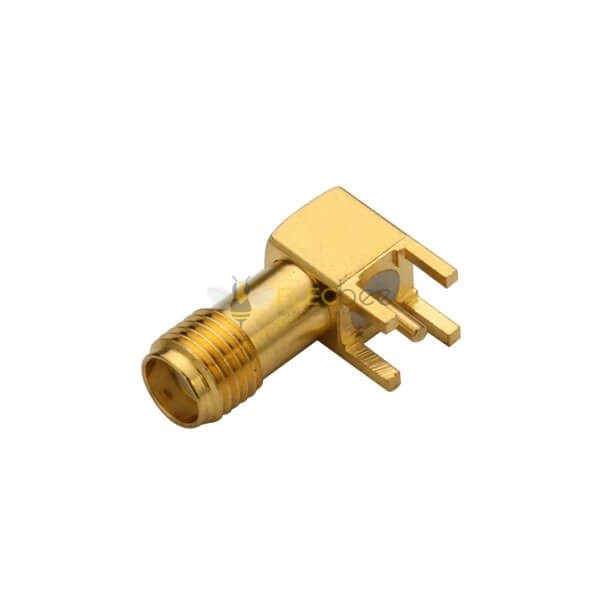

Elecbee RF Coaxial connector Standard SMA Jack Right Angle Solder Type for PCB mount

SKU: EB-007-0114

Favorites

Key Features

Pcb Mount, jack/female, xa0Angled/90°, 50Ω, Through Hole;
Excellent electrical performance up to 18GHz with low reflection;
Thread type coupling mechanism ensure small loss and high security in compact design;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Main Application of SMA Connectors:

Aerospace and Defense: Hand-held field Device and Instrumentation
Technology: Instrumentation
Commercial Vehicle: Bluetooth and GPS
Telecommunications: Wireless Base Stations, Cellular Mobile System
Data/Communications:Wifi, WiMAX
Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System

Reviews

ELECBEE

All reviews come from verified purchasers

1 stars

2 stars

3 stars

17%

4 stars

5 stars

67%

J****y

Seemed to meet SMA standards and threads. Shipped as promised.

G****r

Perfect for my RF design project. The 90° right-angle PCB mount saves space, and the gold-plated brass ensures solid conductivity up to 18GHz.

R****w

Good quality SMA jack with clean solder joints. Impressed by the low VSWR and durability. Mounting was straightforward on my prototype board.

c****d

Exactly as described – gold-plated contacts and PTFE insulator provide stable performance in my WiMAX setup. Great value for OEM-grade parts.

E****c

Works well for 50Ω systems and handles high frequency cleanly. Soldering requires care due to small through-hole pins, but overall reliable.

J****k

Used in a GPS tracking device build. The compact right-angle design and thread coupling make it ideal for tight enclosures. Highly recommend.
