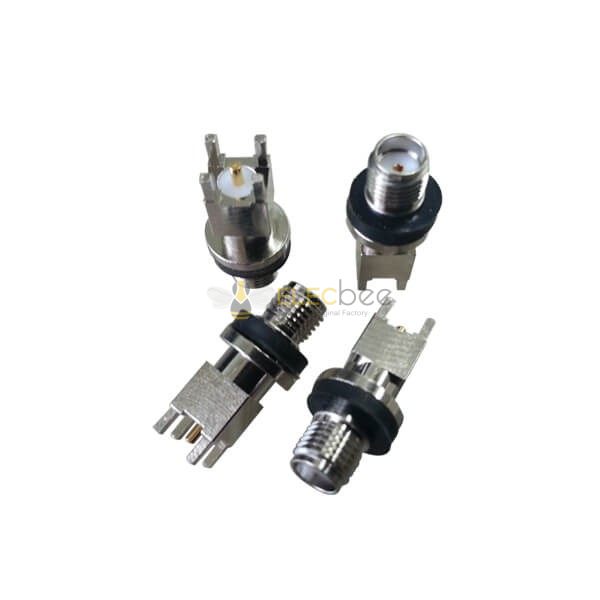

Elecbee RF Coaxial connector Standard SMA Jack Straight Solder Type for PCB mount

SKU: EB-007-0111

Favorites

Key Features

Pcb Mount, jack/female, xa0Straight/180°, 50Ω, Through Hole;
Excellent electrical performance up to 18GHz with low reflection;
Thread type coupling mechanism ensure small loss and high security in compact design;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Main Application of SMA Connectors:

Aerospace and Defense: Hand-held field Device and Instrumentation
Technology: Instrumentation
Commercial Vehicle: Bluetooth and GPS
Telecommunications: Wireless Base Stations, Cellular Mobile System
Data/Communications:Wifi, WiMAX
Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System

Reviews

ELECBEE

All reviews come from verified purchasers

1 stars

2 stars

3 stars

17%

4 stars

5 stars

67%

E****s

Nice mix of connectors/adapters. Can match about anything you need.

S****a

Perfect for my RF project! The SMA jack fits neatly on the PCB, and the 50Ω impedance ensures clean signal up to 18GHz. Soldering was smooth thanks to the through-hole design.

j****o

Great connector for the price. The nickel-plated brass body feels durable, and the gold-plated contact gives solid conductivity. Only wish packaging was a bit more protective.

M****d

Used in a GPS tracking prototype—impressed by the low VSWR and stable performance under vibration. Meets MIL-STD specs as claimed. Will buy again.

J****e

Works well for Wi-Fi modules, but be careful when tightening the coupling nut—it's small and can strip if over-torqued. Good value for hobbyist use.

M****s

Exactly what I needed for compact RF board design. Threaded coupling keeps connections secure, and PTFE insulator handles heat well. Top quality from OEM factory.
