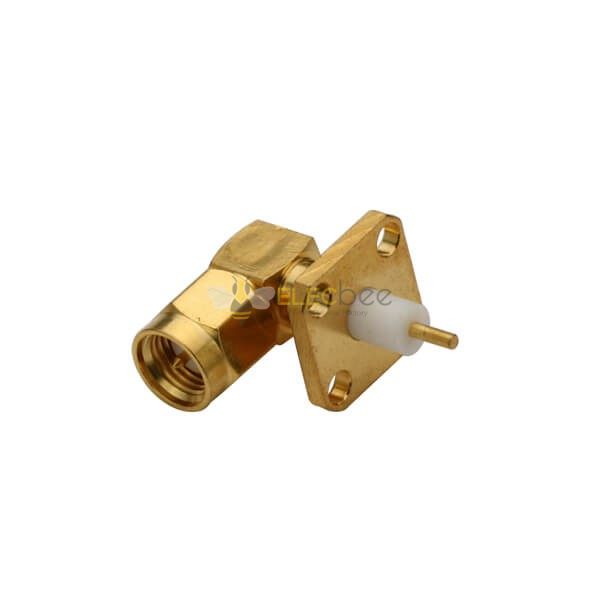

Elecbee RF Coaxial connector Standard SMA Plug Right Angle Solder Type for PCB mount

SKU: EB-007-0090

Favorites

Key Features

Panel Mount, plug/male, xa0Angled/90°, 50Ω, 4Hole Flange;
Excellent electrical performance up to 18GHz with low reflection;
Thread type coupling mechanism ensure small loss and high security in compact design;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Main Application of SMA Connectors:

Aerospace and Defense: Hand-held field Device and Instrumentation
Technology: Instrumentation
Commercial Vehicle: Bluetooth and GPS
Telecommunications: Wireless Base Stations, Cellular Mobile System
Data/Communications:Wifi, WiMAX
Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System

Reviews

ELECBEE

All reviews come from verified purchasers

1 stars

2 stars

3 stars

17%

4 stars

5 stars

67%

E****a

This worked perfectly when inserted into a wall plate for connecting my mimo panel antenna to the house. Once inside, just attached the pigtails to my router

V****r

Perfect for my GPS module on a tight PCB layout. The right-angle SMA plug saves space and the gold-plated brass ensures solid signal up to 18GHz. Exactly as described.

F****n

Good quality connector with excellent RF performance. Soldered cleanly onto the board. Only took 4 days to arrive despite being from overseas.

e****r

Used in a vehicle tracking prototype—handles vibration well and maintains connection integrity. The 4-hole flange makes mounting very stable.

S****n

Works fine for 5GHz WiFi testing, but be careful when tightening—the PTFE insulator can deform if over-torqued. Good value though.

D****i

Exactly what I needed for a compact instrumentation build. Low VSWR, durable coupling nut, and the 90° design fits perfectly behind panels.
