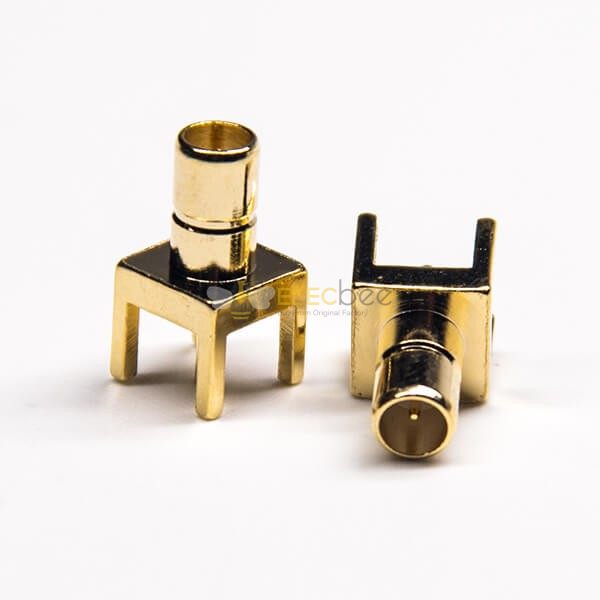

Elecbee 20pcs Through Hole SMB Gold Plated Male Stright Coaxial Connector
SKU: 20XEB-008-0077
Favorites
Key Features
Features:
- SMB Connector,Male,Stright,Through Hole for PCB,50Ohm,Gold Plating;
- Snap-on coupling design for fast installation;
- With boardband performance and low reflection;
- To reduce your Cost by using die casting process in non-critical areas.
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Main Application of SMBxa0Connectors:
- Aerospace and Defense:xa0Test Stands
- Technology:xa0Telemetry
- Commercial Vehicle:xa0GPS
- Telecommunications:xa0Wireless Base Stations, Cellular Mobile System
- Data/Communications:xa0Routers, WIFI, Radio Boards
- Industrial:xa0M2M Communications, Process Controls, Video Systems, Instrumentation
Show More
Specifications
Attribute
Value
Search
Connector Type
Male
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Through Hole
Termination
Solder
Contact Type
Male Pin
Shell Finish
Gold Plated
Impendance
50 Ohms
Frequency Max
4 GHz
Connector Series
SMB
Color
Gold
Fastening Type
Push-on
Orientation
Straight
Shell Material
Copper Alloy
