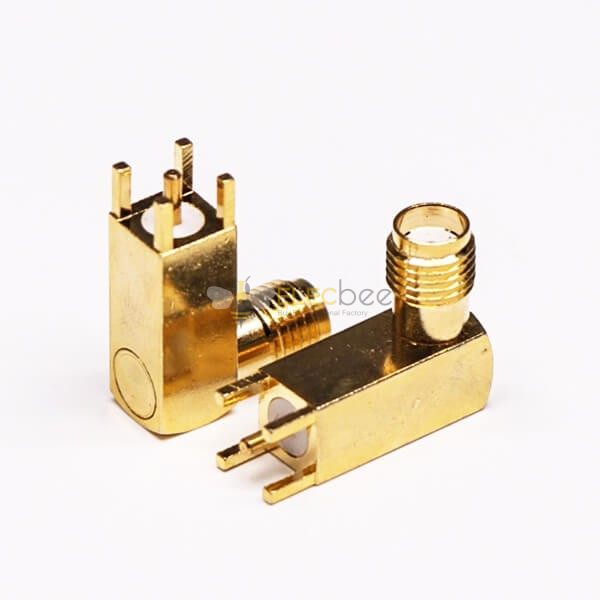

Elecbee 20pcs RF Coaxial connector Standard SMA Jack Right Angle Solder Type for PCB mount

SKU: 20XEB-007-0002

Favorites

Key Features

Features:

Thru Hole,Pcb Mount, Jack/female, Angled/90°, 50Ω;
Excellent electrical performance up to 18GHz with low reflection;
Thread type coupling mechanism ensure small loss and high security in compact design;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Main Application of SMA Connectors:

Aerospace and Defense: Hand-held field Device and Instrumentation
Technology: Instrumentation
Commercial Vehicle: Bluetooth and GPS
Telecommunications: Wireless Base Stations, Cellular Mobile System
Data/Communications:Wifi, WiMAX
Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System

Reviews

ELECBEE

All reviews come from verified purchasers

1 stars

2 stars

3 stars

20%

4 stars

5 stars

60%

k****l

Perfect for my PCB RF project. The right-angle SMA jacks save space and soldering was smooth. Great performance up to 6GHz as specified.

M****e

Solid build quality with gold-plated brass body. Fit perfectly on my GPS module. One pin bent during shipping, but overall good value.

V****l

Excellent coaxial connectors for WiMAX applications. Low VSWR and stable up to 18GHz. Exactly as described and from the original factory.

S****h

Good electrical specs and arrived on time. Soldering requires precision due to small size. Would’ve liked more protection in packaging.

D****y

Used in a vehicle tracking prototype—performs flawlessly under vibration. The 90° thru-hole design saves so much board space!
