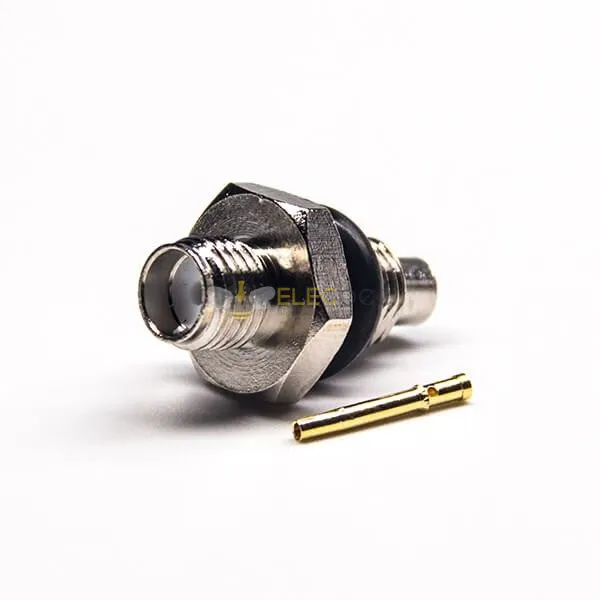

Elecbee RF Coaxial connector Standard SMA Jack Straight Solder Type for PCB mount
SKU: EB-007-0216
Favorites
Key Features
Features:
- SMA Connector,50 Ohm,Female,Straight/180°,Nickel Plating,Crimp Type,Wire Solderxa0
- Excellent electrical performance up to 18GHz with low reflection;
- Thread type coupling mechanism ensure small loss and high security in compact design;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Appliance:
- Aerospace and Defense:xa0Hand-held field Device and Instrumentation
- Technology: Instrumentation
- Commercial Vehicle: Bluetooth and GPS
- Telecommunications: Wireless Base Stations, Cellular Mobile System
- Data/Communications:Wifi, WiMAX
- Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System
Show More
Specifications
Attribute
Value
Search
Connector Type
Jack
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Bulkhead - Rear Side Nut
Termination
Solder
Contact Type
Female Pin
Shell Finish
Nickel Plated
Impendance
50 Ohms
Frequency Max
6 GHz
Connector Series
SMA
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Copper Alloy
Related Resources
Certificates
Shopping Guide
Shipping | Delivery Period | For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Recommended For You
Reviews
ELECBEE
All reviews come from verified purchasers
1 stars
0%
2 stars
0%
3 stars
20%
4 stars
20%
5 stars
60%
S****k
Perfect for my PCB RF project. The 50 ohm impedance and solid gold-plated contacts ensure stable signal up to 6 GHz. Easy to solder and fits exactly as specified.
M****o
Good quality SMA jack for the price. Straight solder mount works well on my GPS module. Crimp + solder combo gives a secure connection. Only wish packaging was better.
A****O
Used in a defense comms device—performs flawlessly under vibration and extreme temps. Meets MIL-STD specs and handles repeated mating without wear.
A****h
Solid connector with good specs, but took a week to arrive. Works fine for Wi-Fi modules, though I had to rework one joint due to tight spacing.
S****i
Exactly as described—straight SMA female jack with clean threads and Teflon insulator. Great value compared to branded versions. Will buy again.
In-Stock:99997
Qty.
1
Unit Price
$ 1.68
Ext. Price
$ 1.68
$ 1.68
Can Ship in 1-3 Business Days
