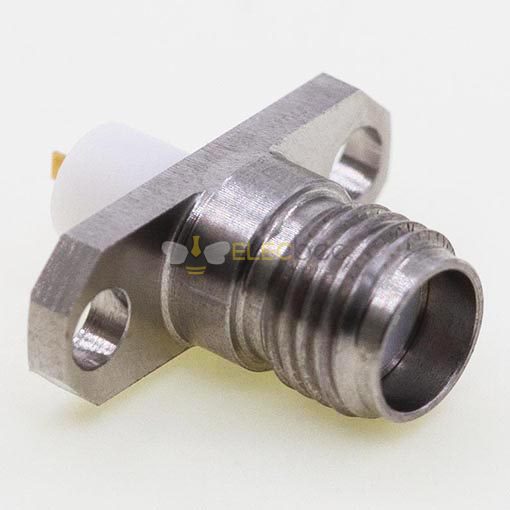

Elecbee SMA Female Connector, 15.8 x 5.7mm Flange w/Cylindrical Contact & 1mm Vertical Flat Pin
SKU: EB-DRF-0156
Favorites
Key Features
- SMA Female connector with 27GHz frequency range.
- Thread locking mechanism for secure connection.
- Anti-vibration design ensures reliability.
- High-quality stainless steel, gold-plated contacts.
- 100% money-back guarantee within 30 days.
Show More
Description
Part Number: EB-DRF-0156
Description: SMA Female Connector Solder Attachment, 15.8 x 5.7mm / 0.625 x 0.223inch Flange Jack w/Cylindrical Contact & 1mm / .040 Vertical Flat Pin Terminal.
This EB-DRF-0156, SMA Female connector solder attachment 2 hole flange mount stub terminal, with size 15.8 x 5.7mm / 0.625 x 0.223inch flange jack and 1mm / .040″ vertical flat pin terminal, frequency range from DC to 27GHz, 50Ω impedance, VSWR 1.10:1 (max) for DC~18GHz and 1.15:1 (max) for 18GHz~27GHz, 500 cycles durability and -55°C~+165°C operating temperature.
Advantages
- Small Size
- High Reliable
- Good Mechanical Performance
- Wide Frequency Range from DC to 27GHz
Applications
- General Purpose Test
- SMA Bulkhead Thread-in Connection
- Rack and Panel Mount Application
- 1mm / .040″ Vertical Flat Pin Terminal
Key Features
| Polarity | Standard |
| Connector Type | SMA |
| Connector Gender | Female |
| Impedance | 50Ω |
| Body Shape | Straight |
| Panel Mounting | 2 Hole Flange |
| Attachment Method | Solder |
| Frequency Range | DC~27GHz |
Performance Features
| VSWR： | DC~18GHz: 1.10:1 (Max) |
| 18GHz~27GHz:1.15:1 (Max) | |
| Contact resistance | Center Conductor≤3.0mΩ |
| Outer Conductor≤2.0mΩ | |
| Insulation resistance | ≥5000MΩ |
| Withstanding Voltage | 1000V |
| Durability | 500 Cycles |
| Operating Temperature | -55℃~+165℃ |
Material Specifications
| Housing | Type 303 Stainless Steel |
| Polished & Passivated | |
| Centre Contact | Beryllium Copper Plated |
| Gold (MIL-G-45204) | |
| Insulators | PTFE & PEI |
Shopping Guide
Shipping | Delivery Period | For in-stock parts, orders are estimated to ship out in 3 days. Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. DHL Express: 3-7 business days DHLeCommerce: 12-22 business days FedEx International Priority: 3-7 business days EMS: 10-15 business days Registered Air Mail: 15-30 business days | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
