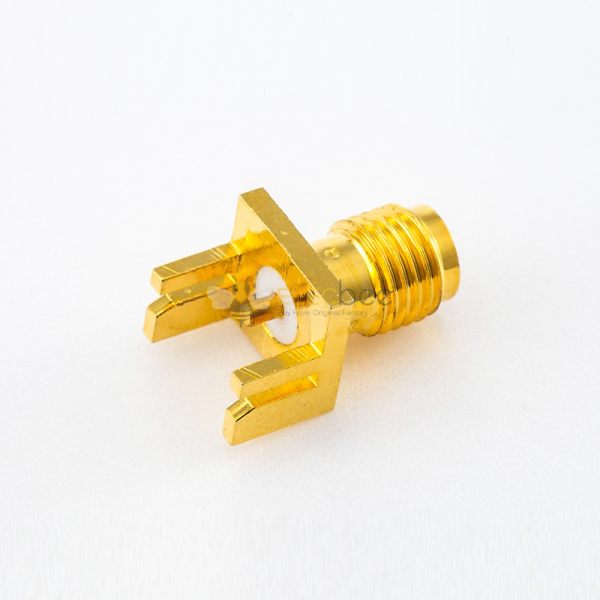

Elecbee RF Coaxial connector Standard SMA Jack Straight Solder Type for PCB mount

SKU: EB-007-0599

Favorites

Key Features

Features:

SMA Connector, Female, Straight, PCB Mount, Solder, Plate Edge Mount，Cooper, Gold Plating, Standard, 50Ω
Excellent electrical performance up to 18GHz with low reflection;
Thread type coupling mechanism ensure small loss and high security in compact design;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Appliance:

Aerospace and Defense:xa0Hand-held field Device and Instrumentation
Technology: Instrumentation
Commercial Vehicle: Bluetooth and GPS
Telecommunications: Wireless Base Stations, Cellular Mobile System
Data/Communications:Wifi, WiMAX
Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System

Reviews

ELECBEE

All reviews come from verified purchasers

1 stars

2 stars

3 stars

20%

4 stars

5 stars

60%

A****a

Perfect for my RF PCB design. The gold-plated brass body and Teflon insulator ensure stable 50Ω impedance up to 6GHz. Soldered cleanly and holds firmly with the 1/4-36 thread.

S****h

Great SMA jack for WiMAX and GPS modules. Impressed by the low VSWR and solid build. Only wish the soldering pad was a bit larger for easier assembly.

R****i

Exactly as described—straight, female, PCB mount with excellent gold plating. Used in a vehicle tracking system and performs flawlessly under vibration and temp swings.

g****m

Good connector for the price. Works well in my instrumentation project, but be careful during soldering—Teflon can warp if overheated.

p****i

Reliable RF connection in tight spaces. The compact design and secure coupling nut make it ideal for handheld field devices. OEM quality at half the cost!
