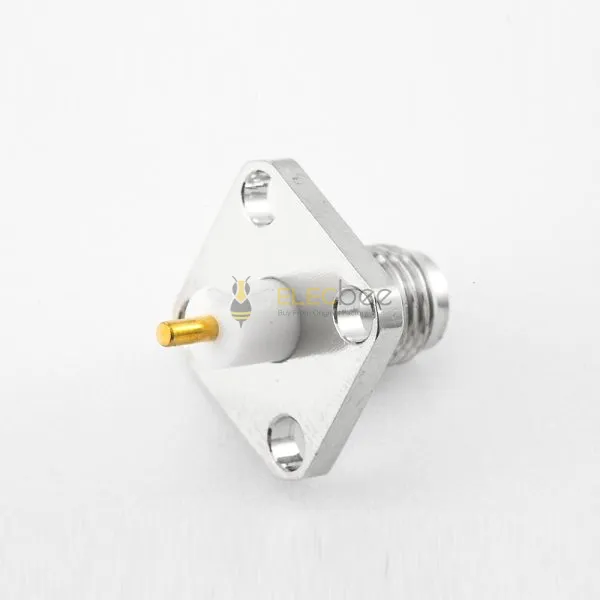

Elecbee RF Coaxial connector Standard SMA Jack Straight Solder Type for PCB mount
SKU: EB-007-0564
Favorites
Key Features
Features:
- SMA Connector, Female, Straight, PCB Mount/Panel Mount, Solder, 4 Hole Flange/Welding Plate，Cooper, Nickel Plating, Standard, 50Ω
- Excellent electrical performance up to 18GHz with low reflection;
- Thread type coupling mechanism ensure small loss and high security in compact design;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Appliance:
- Aerospace and Defense:xa0Hand-held field Device and Instrumentation
- Technology: Instrumentation
- Commercial Vehicle: Bluetooth and GPS
- Telecommunications: Wireless Base Stations, Cellular Mobile System
- Data/Communications:Wifi, WiMAX
- Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System
Show More
Specifications
Attribute
Value
Search
Connector Type
Jack
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Four Flange
Contact Type
Female Pin
Shell Finish
Nickel Plated
Impendance
50 Ohms
Frequency Max
6 GHz
Connector Series
SMA
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Brass
Shield Termination
Solder
