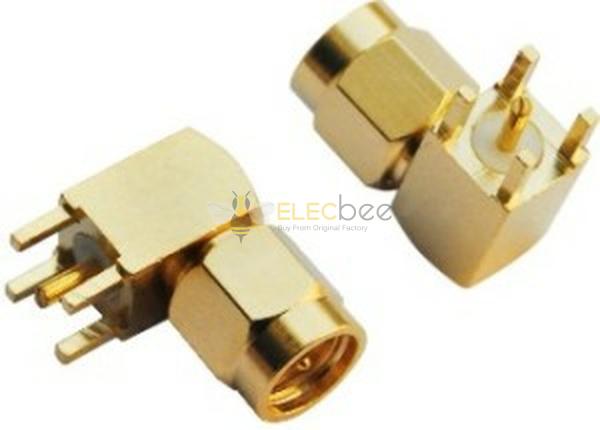

Elecbee RF Coaxial connector Standard SMA Plug Right Angle Solder Type for PCB mount
SKU: EB-007-0317
Favorites
Key Features
- Right-angle SMA plug for easy PCB mounting.
- Solder-type connection ensures durability.
- Waterproof IP68 rated for harsh environments.
Show More
Specifications
Attribute
Value
Search
Connector Type
Male
Number of Ports
1
Mounting Type
Panel Mount
Mounting Feature
Through Hole
Termination
Solder
Contact Type
Male Pin
Shell Finish
Gold Plated
Impendance
50 Ohms
Frequency Max
6 GHz
Connector Series
SMA
Color
Gold
Fastening Type
Threaded
Orientation
Right Angled
Shell Material
Copper Alloy
Description
Description
This is a SMA Male Right Angled Connector, highly suitable for prototyping with the cellular device.Its Impedance 50 Ohm and ROHS Complaint.
