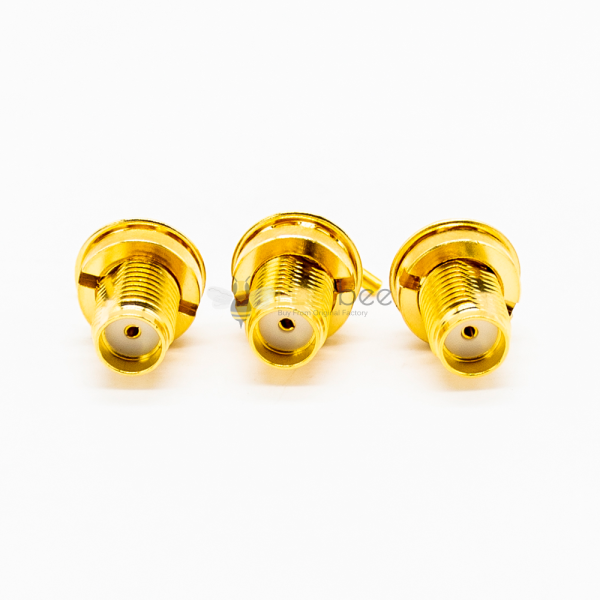

Elecbee RF Coaxial connector Standard SMA Jack Right Angle Solder Type for PCB mount

SKU: EB-007-0612

Favorites

Key Features

Features:

SMA Connector, Female, Right Angle, PCB Mount/Panel Mount, Solder, Bulkhead/Welding Plate，Cooper, Gold Plating, Standard, 50Ω
Excellent electrical performance up to 18GHz with low reflection;
Thread type coupling mechanism ensure small loss and high security in compact design;
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

Appliance:

Aerospace and Defense:xa0Hand-held field Device and Instrumentation
Technology: Instrumentation
Commercial Vehicle: Bluetooth and GPS
Telecommunications: Wireless Base Stations, Cellular Mobile System
Data/Communications:Wifi, WiMAX
Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System

Reviews

ELECBEE

All reviews come from verified purchasers

1 stars

2 stars

3 stars

20%

4 stars

5 stars

60%

R****t

Perfect for my GPS module on a commercial vehicle project. The gold-plated brass body and right-angle solder mount fit neatly on the PCB. Solid 50Ω impedance up to 6GHz, just as specified.

A****i

Good quality SMA jack with consistent VSWR under 1.5max. Soldering was smooth thanks to the gold plating. Only wish the packaging was a bit more protective for bulk orders.

S****n

Used in a defense handheld instrument—performs flawlessly under vibration and extreme temps (-55°C to +155°C). Teflon insulator and 1/4-36 thread coupling add real reliability.

g****?

Works well for WiMAX and WiFi applications. Good value from the OEM factory, but took a few tries to align correctly during PCB soldering due to tight tolerances.

G****s

Exactly as described—right angle, bulkhead mount, gold-plated contacts. Delivered stable signal in our wireless base station test setup. Will definitely reorder.
