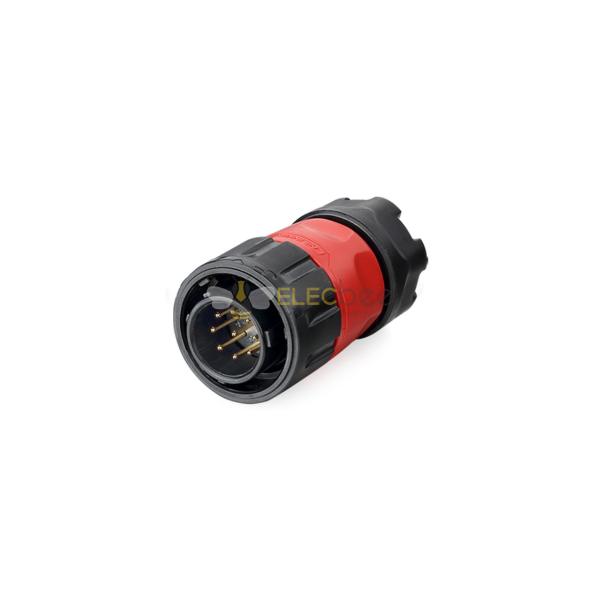

Elecbee YM-20 Series 9-Pin Male Plug IP67 Waterproof Power Connector
SKU: EB-116-0001
Favorites
Key Features
- IP67 waterproof rating for reliable outdoor use.
- 9-pin male plug ensures secure power connection.
- Durable Elecbee YM-20 series for industrial applications.
Show More
Specifications
Attribute
Value
Search
Connector Type
Plug
Mounting Type
Cable Type
Termination
Solder Cup
Contact Type
Male Pin
Number of Positions
9 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-20℃~+85℃
Ingress Protection
IP68
Rated Current
5A
Rated Voltage
250VAC
Connector Series
YM20
Color
Black, Red
Fastening Type
Bayonet
Orientation
Straight
Shell Material
Engineering Plastics
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
Engineering Plastics
Cable Diameter
22AWG~20AWG
Description
Extra Information
Brand:
Linko Electric
Rated current:
5A
Number of pins:
9
Withstanding voltage:
1500V
Contact resistance:
Operating voltage:
250V
Contact dimension:
Phi 1*9
Insertion and extraction force:
2.7N Max
Mating cycle:
1700 Times
Protection level:
IP67
Temperature and humidity:
-40~80C; 40C, 85%RH
Screw torque:
42-53(N.m)
