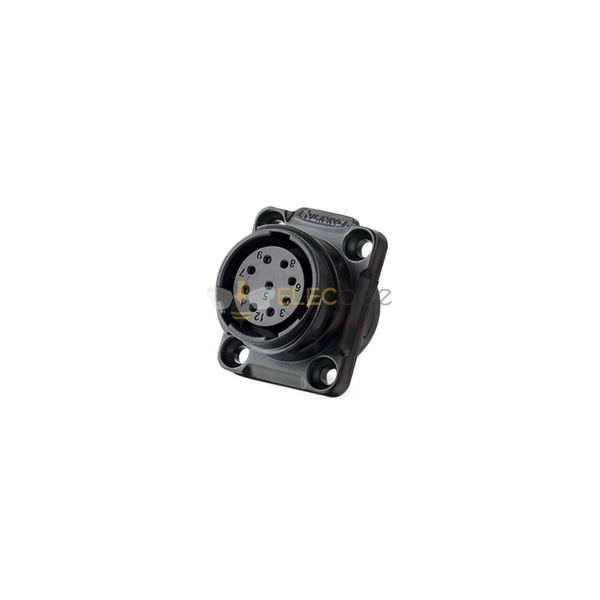

Elecbee YM-20 Series 9-Pin Female Socket IP67 Waterproof Power Connector Panel Mount
SKU: EB-116-0002
Favorites
Key Features
- IP67 waterproof rating ensures durability in harsh environments.
- 9-pin female socket design for secure and stable connections.
- Panel mount installation for easy integration into systems.
Show More
Specifications
Attribute
Value
Search
Connector Type
Receptacle
Mounting Type
Panel Mount
Mounting Feature
Four Flange
Termination
Solder Cup
Contact Type
Female Pin
Number of Positions
9 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-20℃~+85℃
Ingress Protection
IP68
Rated Current
5A
Rated Voltage
250VAC
Connector Series
YM20
Color
Black
Fastening Type
Bayonet
Orientation
Straight
Shell Material
Engineering Plastics
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
Engineering Plastics
Cable Diameter
22AWG~20AWG
Description
Extra Information
Brand:
Linko Electric
Rated current:
5A
Number of pins:
9
Withstanding voltage:
1500V
Contact resistance:
Operating voltage:
250V
Contact dimension:
Phi 1*9
Insertion and extraction force:
2.7N Max
Mating cycle:
1700 Times
Screw torque:
42-53 (N.m)
Protection level:
IP67
Temperature and humidity:
-40~80C; 40C, 85%RH
