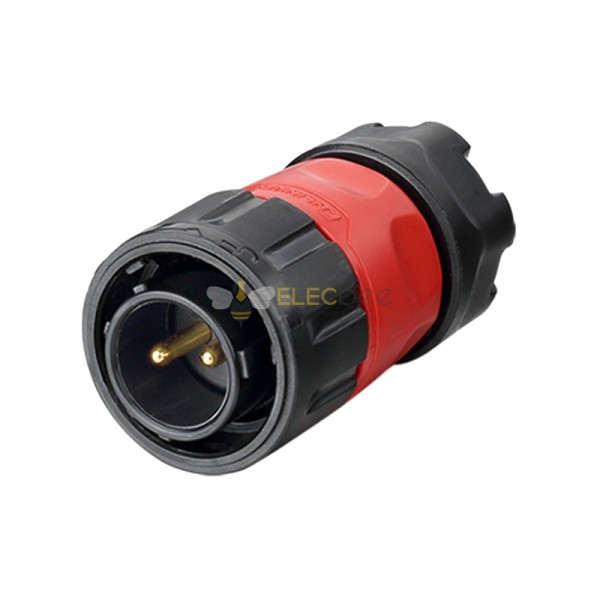

Elecbee YM-20 power connector M20 2-pin male plug 500 V 20 A IP67
SKU: EB-YM-20-C02PE-02-001
Favorites
Key Features
protection class:IP67 certified
Typ:YM-20 Series Power Cable Connector male
High Quality with 30 days 100% Money back
From the OEM Original Factory, same quality with much better price
Show More
Specifications
Attribute
Value
Search
Connector Type
Plug
Mounting Type
Cable Type
Termination
Solder Cup
Contact Type
Male Pin
Number of Positions
2 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-20℃~+85℃
Ingress Protection
IP68
Rated Current
20A
Rated Voltage
500VAC
Connector Series
YM20
Color
Black, Red
Fastening Type
Bayonet
Orientation
Straight
Shell Material
Engineering Plastics
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
Engineering Plastics
Cable Diameter
14AWG~12AWG
