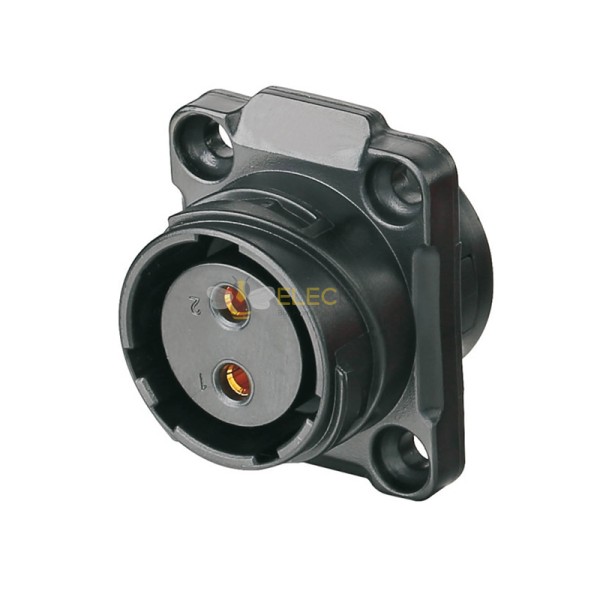

Elecbee YM-20 power connector M20 2-pin female chassis square 500 V 20 A IP67
SKU: EB-YM-20-J02SX-02-401
Favorites
Key Features
protection class:IP67 certified
Typ:YM-20 Series Chassis Socket female
High Quality with 30 days 100% Money back
From the OEM Original Factory, same quality with much better price
Show More
Specifications
Attribute
Value
Search
Connector Type
Receptacle
Mounting Type
Panel Mount
Mounting Feature
Four Flange
Termination
Solder Cup
Contact Type
Female Pin
Number of Positions
2 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-20℃~+85℃
Ingress Protection
IP68
Rated Current
20A
Rated Voltage
500VAC
Connector Series
YM20
Color
Black
Fastening Type
Bayonet
Orientation
Straight
Shell Material
Engineering Plastics
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
Engineering Plastics
Cable Diameter
14AWG~12AWG
