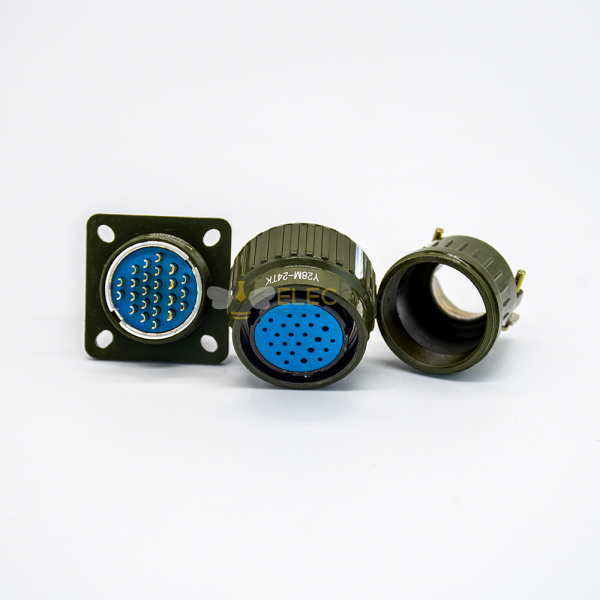

Elecbee Y28M-24TK 28mm Mil Metal Male and Female 24 Pin Circular Connector
SKU: EB-701-0012
Favorites
Key Features
Features:
- Y28M Connector,Plug,Bayonet Coupling,24 pin,Female Contact,Solder Cable Plug
- Small Volume
- Light Weight
- Convenient Application
- High Durability of Plugging and Unplugging
- Good Sealing Performance
- Resistance Against Corrosion
- High Conductivity and High Dielectric Strength
Show More
In-Stock
Qty.
1
Unit Price
€ 7.42
Ext. Price
€ 7.42
€ 7.42
Specifications
Attribute
Value
Search
Connector Type
Plug
Mounting Type
Panel Mount
Termination
Solder
Contact Type
Male，Female Pin
Shell Finish
Electrophoretic Olive Green
Number of Positions
24 Pin
Operating Temperature
-40℃~+85℃
Shielding
Unshielded
Ingress Protection
IP67
Rated Current
10A
Connector Series
Y28M
Color
Olive Green
Fastening Type
Bayonet
Orientation
Straight
Shell Material
Aluminum Alloy
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PBT
Shell Size
28mm
Description
Shopping Guide
Shipping | Delivery Period | Elecbee ships orders once a day at about 5pm except Sunday. Once shipped, estimated delivery time depends on the below carriers you chose. Express: 3-7 days. Standard Post: 7-20 days. | |
| Shipping Rates | Shipping rates for your order can be found in the shopping cart. | ||
| Shipping Options | We offer express and standard delivery services. | ||
| Shipping Tracking | We will notify you by email with tracking number once order is shipped. You can track your order using the “Track My Order” feature. | ||
| Returning/Warranty | Returning | Returns are normally accepted when completed within 30 days from date of shipment, please contact customer service for a return authorization. Parts should be unused and in original packaging. Customer has to take charge for the shipping | |
| Warranty | All Elecbee purchases come with a 30-day money-back return policy, plus 1-year Elecbee warranty against any manufacturing defects. | ||
| This warranty shall not apply to any item where defects have been caused by improper customer assembly failure by customer to follow instructions, product modification, negligent or improper operation | |||
| Ordering | How to Buy | Elecbee accepts online orders. | |
| Add to cart > Check out > Submit order > Complete payment > Delivery | |||
| Payment | PayPal, Credit Card includes Visa, Master, American Express, Bank transfer. | ||
Recommended For You
Reviews(5)
4 /5
All reviews come from verified purchasers
5
60%
4
20%
3
20%
2
0%
1
0%
G****z
Perfect for my industrial project. The bayonet coupling is super secure and the gold-plated contacts ensure great conductivity. Exactly as described!
f****i
Solid build quality and very lightweight, which was crucial for our drone-mounted sensor setup. Soldering the 24 pins took time but fit perfectly.
S****a
Impressed by the durability. After over 300 mating cycles in testing, no sign of wear. The aluminum alloy shell resists corrosion well too.
S****n
Works fine, but soldering 24 pins is tedious. Wish it came with a crimp option. Good for compact installations thanks to small size.
M****r
Exactly what I needed—rugged, reliable, and handles extreme temps from -40°C to +85°C without issue. Great for outdoor robotics.
