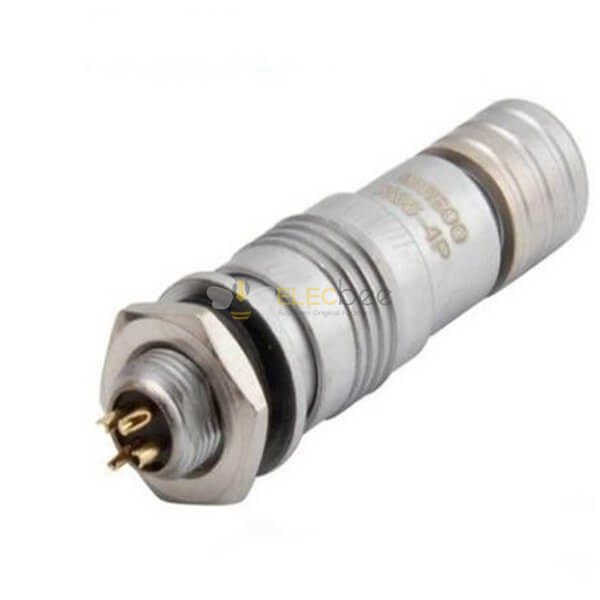

Elecbee XS6 4Pin Circular Connector Female Cable Plug and Male Panel Mount Socket
SKU: EB-408-1003
Favorites
Key Features
Quick Connection: This XS6 4 pin straight circular connector set uses a push-pull ball lock for fast mating and release and includes a plug and receptacle.
Contact Finish: Gold-plated copper alloy contacts provide good conductivity and resist corrosion and oxidation.
Compact Installation: The compact, lightweight design supports rear nut bulkhead mounting with solder cup termination. Rated for 2.5A and 110V. The receptacle is sealed.
Applications: This circular instrumentation connector supports communication, video, navigation, marine, rail and electromechanical equipment wiring.
Show More
Specifications
Number of Positions:
2 Pin3 Pin4 Pin5 PinIn-Stock
Qty.
1
Unit Price
$ 4.04
Ext. Price
$ 4.04
$ 4.04
Specifications
Attribute
Value
Search
Connector Type
Plug, Receptacle
Mounting Type
Panel Mount
Mounting Feature
Bulkhead - Rear Side Nut
Termination
Solder Cup
Contact Type
Male，Female Pin
Shell Finish
Nickel Plated
Number of Positions
4 Pin
Operating Temperature
-20℃~+85℃
Rated Current
2.5A
Rated Voltage
110V
Connector Series
XS6
Color
Silver
Fastening Type
Push-on
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
Bakelite
Insulation Color
Blue
Description
XS6 · PUSH-PULL CONNECTORS
Small connectors.
More ways to connect.
XS6 circular plugs and receptacles bring together a metal shell, gold-plated copper contacts and a quick push-pull connection. Choose the contact count and mounting style for your assembly.
2 / 3 / 4 / 5 contactsCable & panel optionsSolder termination
MATERIALS & ASSEMBLY
Look closer at the build
Four details show how the shell, contacts, insulation and cable entry work together.
STRUCTURE
The parts behind the connection
The cable plug and panel receptacle are shown together. Numbered leaders identify the contact, insulation and housing parts; the panel mounting thread is separate from the push-pull mating mechanism.
- 01Copper contacts
- 02Panel mounting thread
- 03Bakelite insulator
- 04Metal shell
- 05Backshell
FAMILY OVERVIEW
Choose the shape around your equipment
Straight and right-angle cable plugs, nut-mounted receptacles and flange styles offer different assembly routes. These views illustrate the family; the selected SKU determines the supplied parts.
Straight plug + receptacle
A female cable plug is shown alongside a male panel receptacle. Match the contact count and mating configuration.
Right-angle + flange example
The right-angle cable exit and two-hole flange illustrate another way to arrange the connection.
Panel receptacle options
Nut-mounted and flange-mounted receptacles appear in the series, including male- and female-contact versions.
Dimensions apply to the illustrated configurations. Confirm the installation drawing and pin assignment for the exact part before machining or wiring.
Cable plugsStraight female, right-angle female and straight male configurations
Panel receptaclesRear-nut male / female receptacles and two-hole flange male receptacles
Paired setsFemale cable plug + male panel receptacle, with 2–5 contact options
A protective cap is shown among the family options. Included accessories depend on the selected item.
SELECTION REFERENCE
The essentials, ready to compare
SeriesXS6
Contact counts2 / 3 / 4 / 5
CouplingPush-pull quick lock
TerminationSolder
Shell / contacts / insulatorNickel-plated zinc alloy / gold-plated copper / Bakelite
Illustrated panel cutout6 mm · selected cable / panel configuration only
Select the exact part before finalizing a panel opening, contact wiring or electrical rating. Installation dimensions vary by configuration.
Electrical & mechanical reference values
Scroll the table sideways to see every column.
| Item | Right-angle example | Straight example |
|---|---|---|
| Operating temperature | −20–70°C | −20–70°C |
| Voltage / current marking | DC30V 0.2A | DC30V 0.2A |
| Contact resistance | ≤ 0.03 Ω | ≤ 0.03 Ω |
| Current | 3.5 A | 3.5 A |
| Insulation resistance | ≥ 100 MΩ | ≥ 100 MΩ |
| Withstand voltage | AC250V (50HZ) / 1min | AC250V (50HZ) / 1min |
| Mating / unmating force | 5–35 N | 5–35 N |
| Mating cycles | 1000 cycles | 1000 cycles |
The 0.2 A marking and separate 3.5 A current value require configuration-specific confirmation. Confirm the electrical rating of the selected part before use.
Before selecting your XS6
- Choose the plug, receptacle or paired set required.
- Match contact count and male/female contact configuration.
- Check straight or right-angle cable routing and the mounting method.
- Verify dimensions and ratings against the selected part before assembly.
