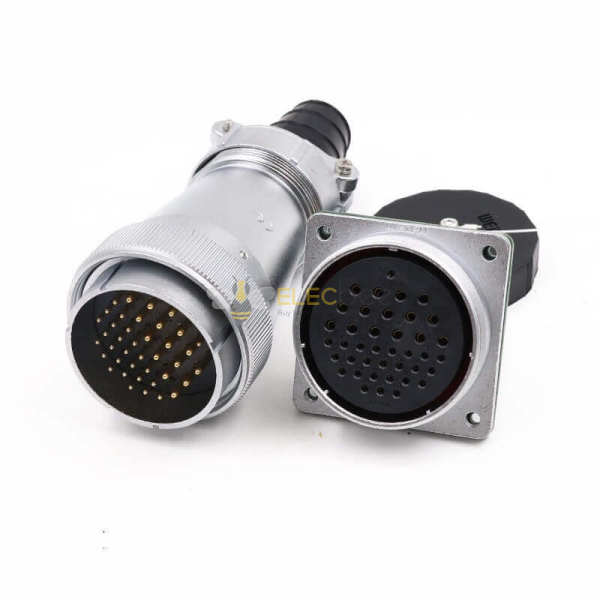

Elecbee WF55-40pin Aviation Circular Waterproof Connector Straight Cable TI+Z Male Plug and Female Square Socket
SKU: EB-WF55J40TI-WF55K40Z
Favorites
Key Features
- Waterproof aviation circular connector for reliable connections.
- Includes 40-pin TI+Z male plug and female square socket.
- Straight cable design with USB2.0 Type-A to Micro-B.
- Durable 180-degree down-angle Micro-B male connector.
Show More
Specifications
Number of Positions:
40 Pin53 Pin61 PinIn-Stock
Qty.
1
Unit Price
$ 36.77
Ext. Price
$ 36.77
$ 36.77
Qty.
Unit Price
Ext. Price
10+
$34.93
$ 349.30
20+
$33.09
$ 661.80
100+
$29.42
$ 2942.00
Specifications
Attribute
Value
Search
Connector Type
Plug, Receptacle
Mounting Type
Panel Mount
Termination
Solder
Contact Type
Male，Female Pin
Shell Finish
Chrome Plated
Number of Positions
40 Pin
Operating Temperature
-40℃~+85℃
Ingress Protection
IP65
Rated Current
10A, 25A
Rated Voltage
500VAC
Features
Waterproof
Connector Series
WF55
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS
Cable Diameter
14AWG, 11AWG
Shell Size
55
Insulation Color
Black
Description
* Series-level ranges. Exact ratings and contact counts vary by selected product configuration.
01 / Series highlights
Engineered for dependable connections
A shared description for the WF family, focused on the housing options customers actually need to compare.
01
Threaded locking
A secure coupling interface for mechanically retained connections.
02
Durable materials
Chrome-plated metal shells, PPS inserts and gold-plated brass contacts.
03
Housing flexibility
Straight, angled, panel-mount and in-line body configurations.
04
Ordering logic
Shell style, contact gender and contact quantity are decoded in the part number system below.
02 / Configuration guide
WF housing style guide
Rebuilt as clean product-style boards instead of the original crowded chart.
Configuration referenceCleaner image boardsShared across WF series
PLUGS

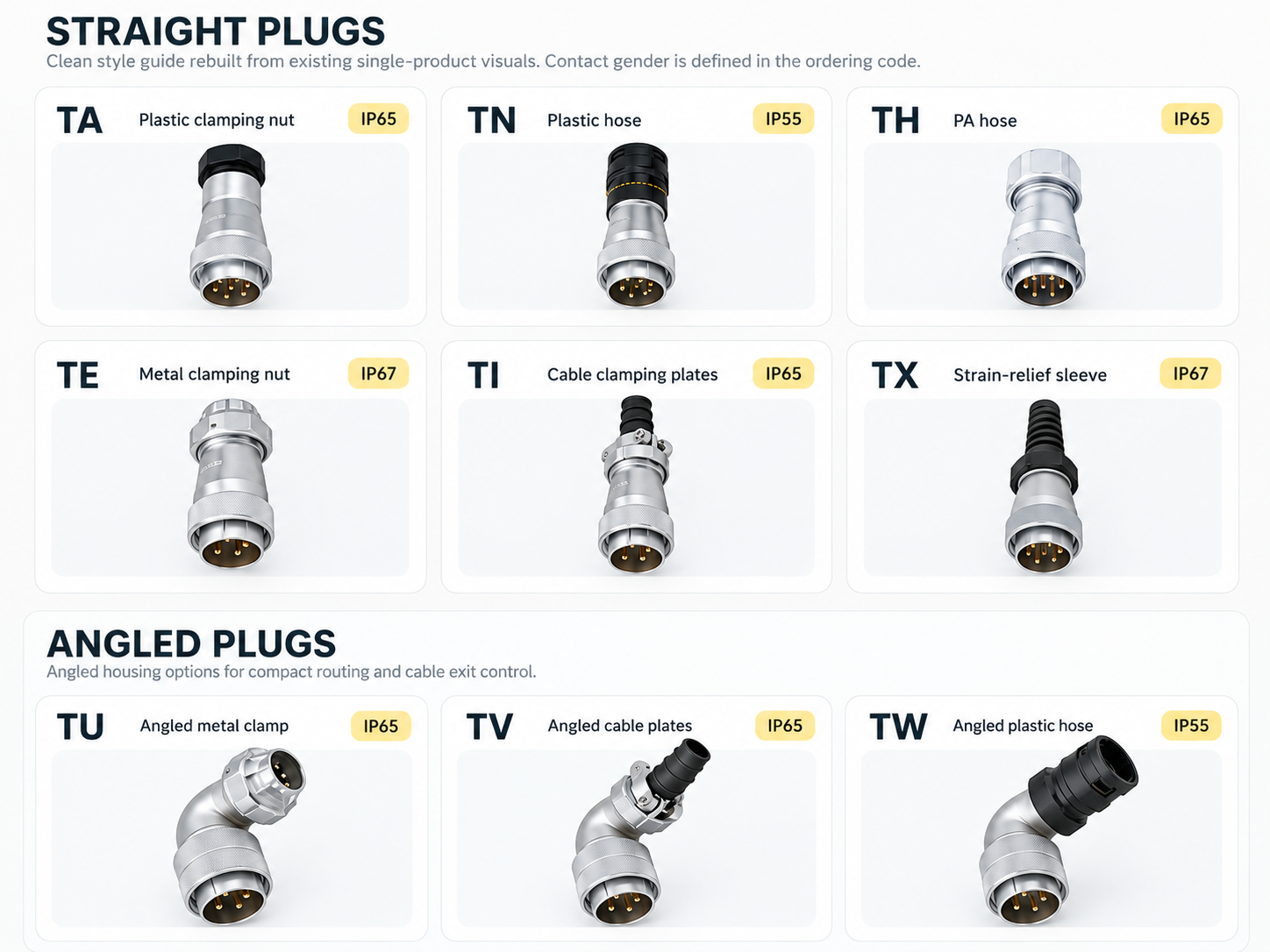

Plug housing configurations
RECEPTACLES

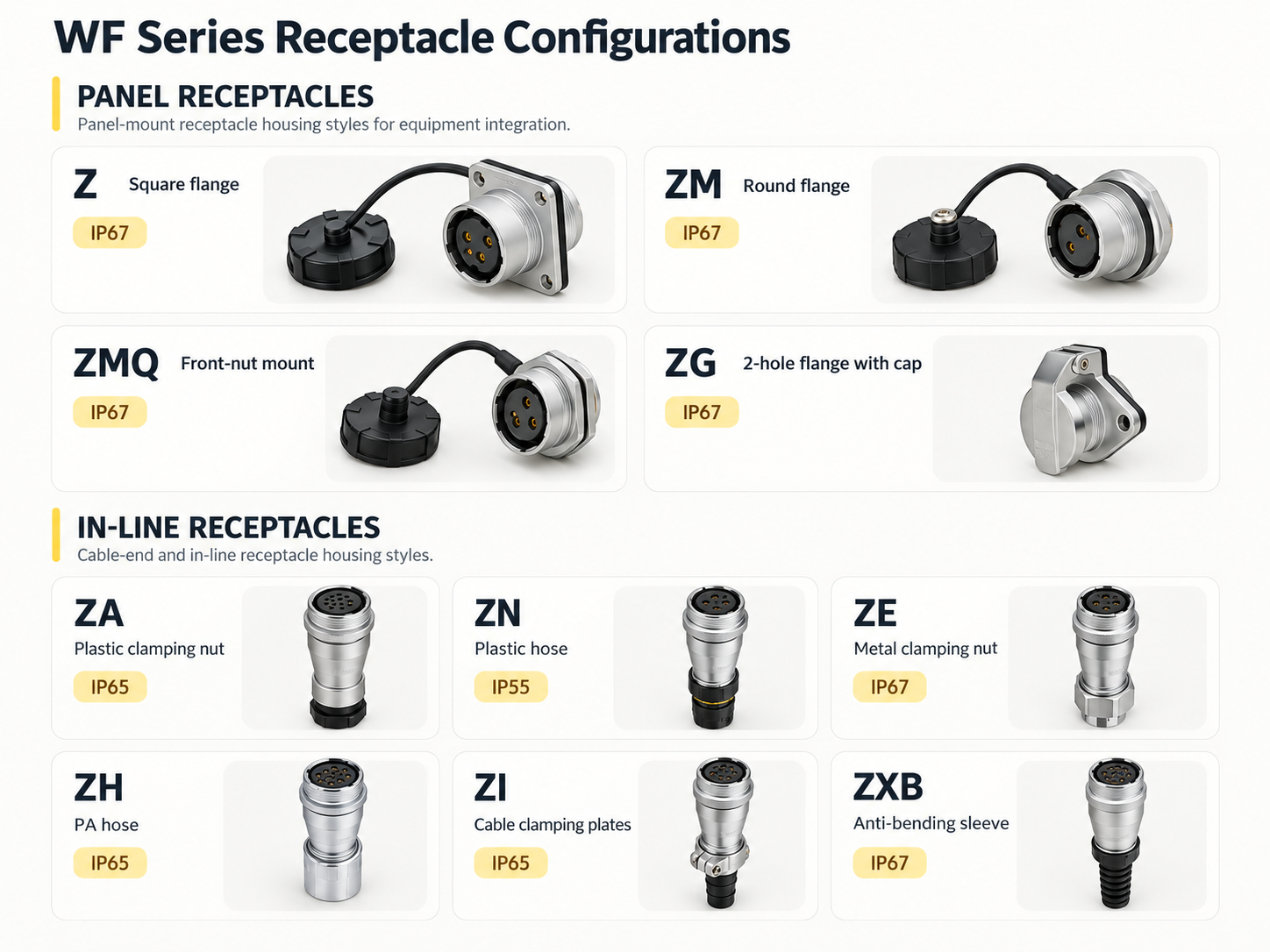

Receptacle housing configurations
Use these guides to identify housing style first. Then confirm the exact mating pair, shell size and selected option above.
03 / Ordering code reference
Part number system
Rebuilt as a clean infographic from the original content for easier reading and consistency with the page layout.
Check the ordering-code logic together with the selected product option to confirm shell style, contact gender, termination type and contact quantity.
04 / Dimensional drawings
Reference dimension drawings
Shown directly in the page for faster review.
Plug dimensions

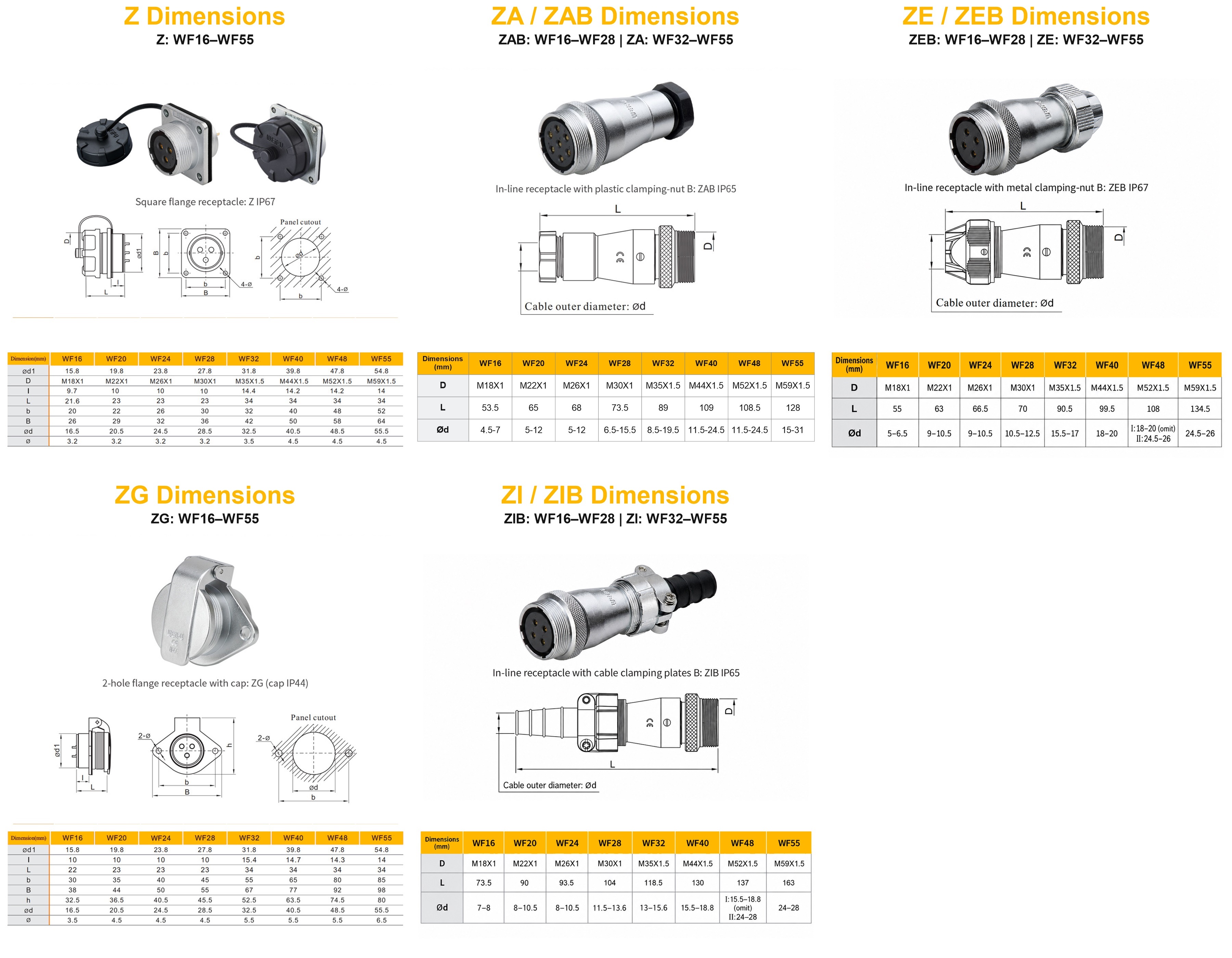

Receptacle dimensions
05 / Usage guidance
Applications & selection notes
Typical applications
- Industrial control and automation
- Machinery, motion systems and robotics
- Communication, monitoring and security equipment
- Equipment signal and power interfaces
Check before ordering
- Correct shell size and mating pair
- Contact count and contact arrangement
- Cable entry, termination and strain relief
- Voltage/current for the selected contact layout
- Environmental exposure and installation clearance
