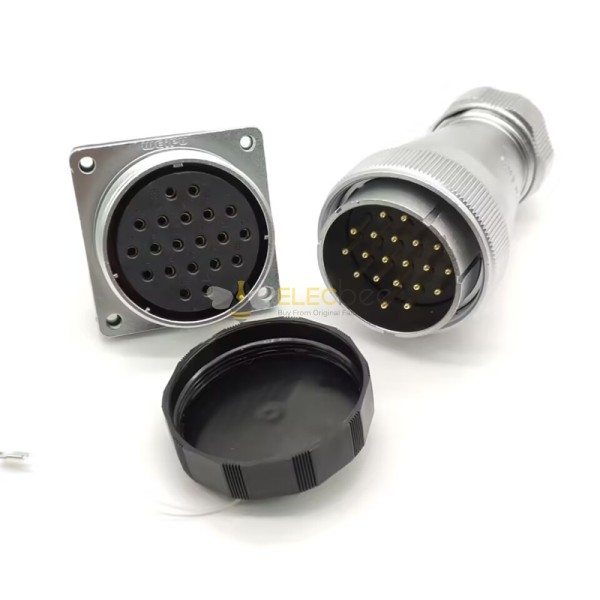

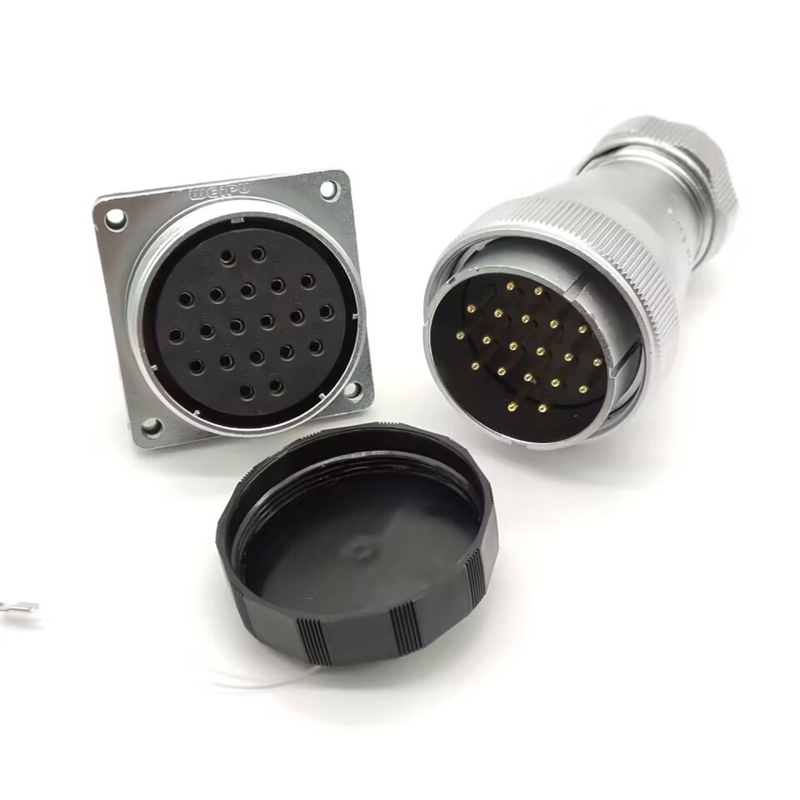

Elecbee WF48 series 20pin Male Plug and Female Socket TE+Z Straight Aviation Waterproof Connector

SKU: EB-WF48J20TE-WF48K20Z
Favorites
Key Features

Feature

  • Female socket, Male plug , Straight, waterproof, Sloder up, 20pin, 4-hole flange;
  • Termination Type:  sloder
  • Easy quick connect and disconnect coupling;
  • Options: 5/7/20/27/38/42 pins
  • Hole Diameter: 48mm
  • From the OEM Original Factory, same quality with much better price.

Main Application of WF48 Connectors:

  • Applications: used in aviation, navigation, computers, communications, navigation, anti-theft devices, transportation, machinery and electronics, etc.



Show More
Attribute
Value
Connector Type
Plug, Receptacle
Mounting Type
Panel Mount
Termination
Solder
Contact Type
Male,Female Pin
Shell Finish
Chrome Plated
Number of Positions
20 Pin
Operating Temperature
-40℃~+85℃
Ingress Protection
IP65
Rated Current
25A
Rated Voltage
500VAC
Features
Waterproof
Connector Series
WF48
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS
Cable Diameter
11AWG
Shell Size
48
Insulation Color
Black
Description

WF48   TE+Z   20pin
