Elecbee WF16 series Waterproof Aviation 4pin TI/Z Connector Straight cable square Receptacle Male Plug and Female Socket
SKU: EB-WF16J4TI-WF16K4Z
Favorites
Key Features
Features:
- Model Number: WF16
- Shell Material: Zinc alloy
- Coupling: Thread
- Termination Type: Solder
- Insulator: High-temperature PPS
- Temperature Range: -40°C~85°C
- Contact material: Brass with gold plating
- Hole Diameter: 16mm
- Number of Contacts: 2/3/4/5/7/9/10Pin
- Applications: used in aviation, navigation, computers, communications, navigation, anti-theft devices, transportation, machinery and electronics, etc.
Show More
Specifications
Number of Positions:
2 Pin3 Pin4 Pin5 Pin7 Pin10 Pin9 PinIn-Stock
Qty.
1
Unit Price
$ 7.57
Ext. Price
$ 7.57
$ 7.57
Specifications
Attribute
Value
Search
Connector Type
Plug, Receptacle
Mounting Type
Panel Mount
Termination
Solder
Contact Type
Male，Female Pin
Shell Finish
Chrome Plated
Number of Positions
4 Pin
Operating Temperature
-40℃~+85℃
Ingress Protection
IP65
Rated Current
5A
Rated Voltage
500VAC
Features
Waterproof
Connector Series
WF16
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS
Cable Diameter
18AWG
Shell Size
16
Insulation Color
Black
Description
* Series-level ranges. Exact ratings and contact counts vary by selected product configuration.
01 / Series highlights
Engineered for dependable connections
A shared description for the WF family, focused on the housing options customers actually need to compare.
01
Threaded locking
A secure coupling interface for mechanically retained connections.
02
Durable materials
Chrome-plated metal shells, PPS inserts and gold-plated brass contacts.
03
Housing flexibility
Straight, angled, panel-mount and in-line body configurations.
04
Ordering logic
Shell style, contact gender and contact quantity are decoded in the part number system below.
02 / Configuration guide
WF housing style guide
Rebuilt as clean product-style boards instead of the original crowded chart.
Configuration referenceCleaner image boardsShared across WF series

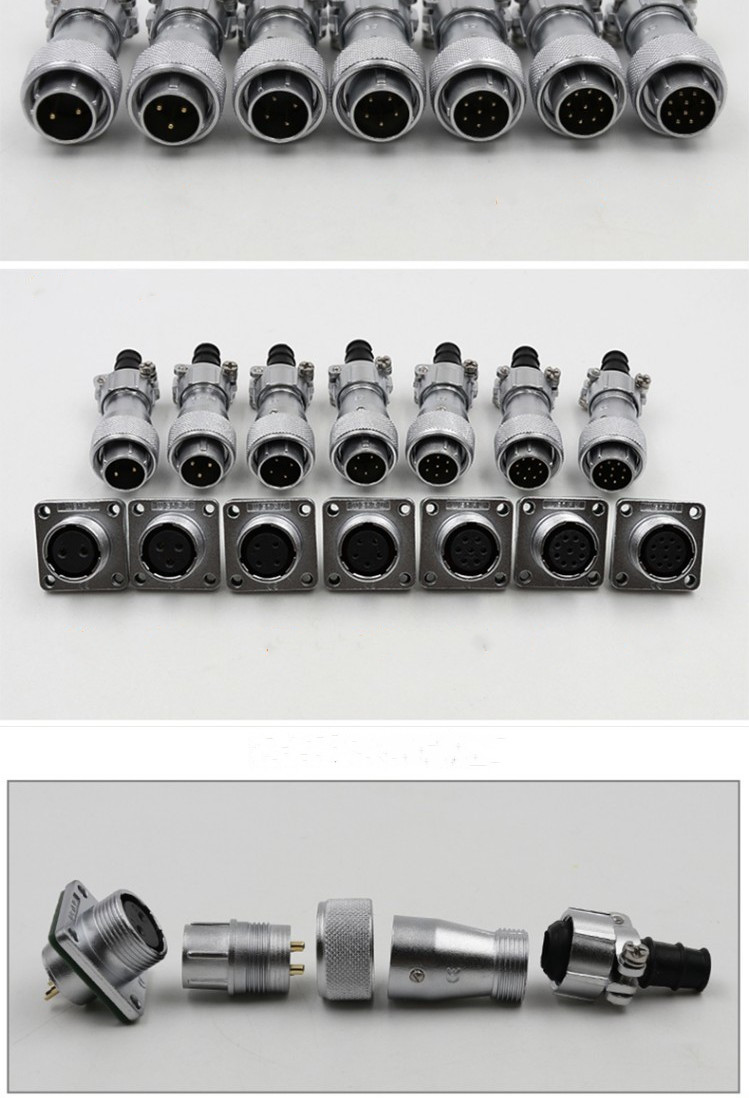

PLUGS
Plug housing configurations

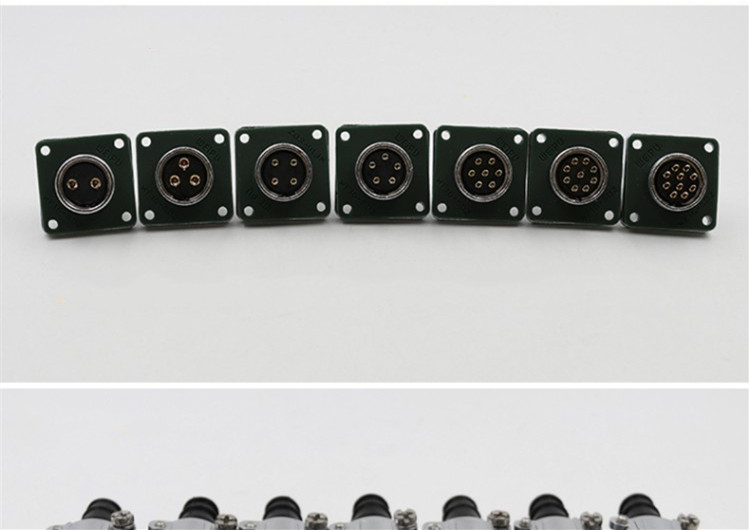

RECEPTACLES
Receptacle housing configurations
Use these guides to identify housing style first. Then confirm the exact mating pair, shell size and selected option above.
03 / Ordering code reference
Part number system
Rebuilt as a clean infographic from the original content for easier reading and consistency with the page layout.
Check the ordering-code logic together with the selected product option to confirm shell style, contact gender, termination type and contact quantity.
04 / Dimensional drawings

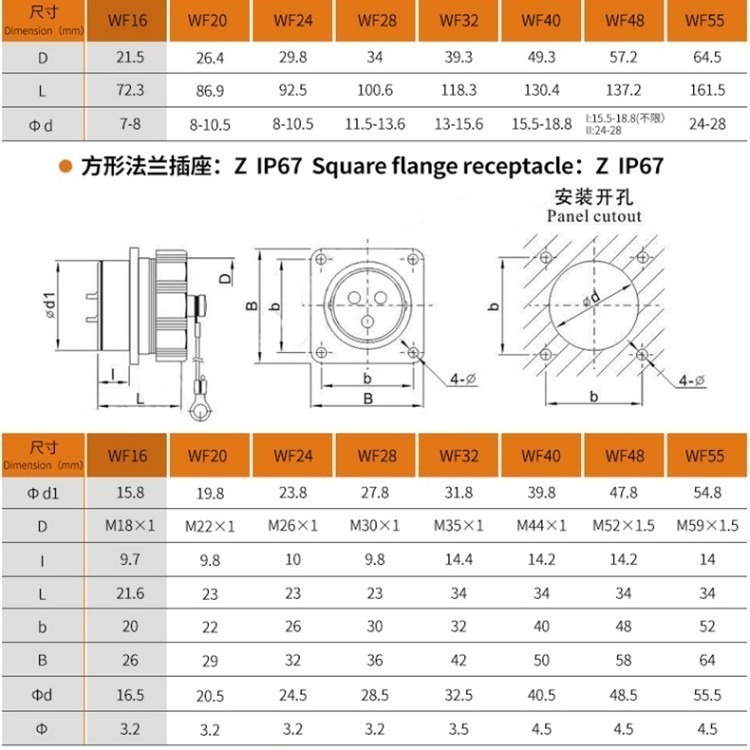

Reference dimension drawings
Shown directly in the page for faster review.

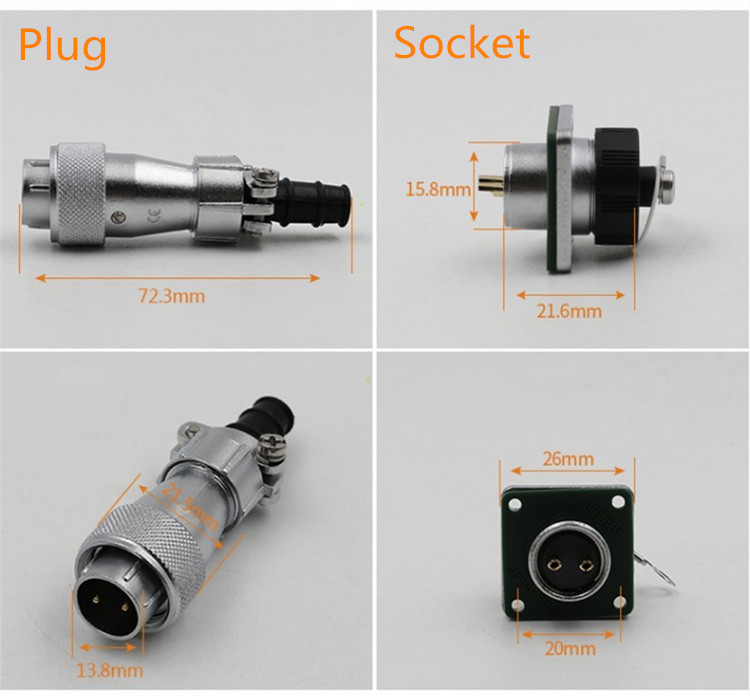

Plug dimensions
Receptacle dimensions
05 / Electrical specifications
Electrical ratings by contact arrangement
RATED CURRENT
5–150 A
RATED VOLTAGE
400–500 V AC
INSULATION
2000 MΩ
| SHELL SIZE | CONTACT OPTIONS | RATED CURRENT | RATED VOLTAGE | TEST VOLTAGE (AC, 1 MIN) |
CONTACT RESISTANCE |
|---|---|---|---|---|---|
| WF16 | 2–10, including B options | 5–15 A | 400–500 V AC | 1200–1500 V AC | 2.5 mΩ |
| WF20 | 2–15, including 6B | 5–25 A | 400–500 V AC | 1200–1500 V AC | 1–5 mΩ |
| WF24 | 2–19, including 12B | 5–25 A | 400–500 V AC | 1200–1500 V AC | 1–5 mΩ |
| WF28 | 2–35, including BB and B options | 5–60 A | 400–500 V AC | 1200–1500 V AC | 0.5–5 mΩ |
| WF32 | 4–19, including 8B and 10B | 10–50 A | 500 V AC | 1500 V AC | 0.5–2.5 mΩ |
| WF40 | 5–52 | 5–50 A | 400–500 V AC | 1200–1500 V AC | 0.5–5 mΩ |
| WF48 | 5–42 | 10–100 A | 500 V AC | 1500 V AC | 0.3–2.5 mΩ |
| WF55 | 4–61 | 10–150 A | 500 V AC | 1500 V AC | 0.2–2.5 mΩ |
All arrangements in the supplied solder-contact chart list an insulation resistance of 2000 MΩ. Wire size, contact diameter and individual rating vary by the selected contact arrangement; use the exact configuration table for final selection.
CONTACT LAYOUTS
Solder contact specification & face view
The complete reference chart preserves the male contact face views, contact diameter, rated current, voltage, test voltage, contact resistance, insulation resistance and wire-size data for each listed arrangement.
06 / Usage guidance
Applications & selection notes
Typical applications
- Industrial control and automation
- Machinery, motion systems and robotics
- Communication, monitoring and security equipment
- Equipment signal and power interfaces
Check before ordering
- Correct shell size and mating pair
- Contact count and contact arrangement
- Cable entry, termination and strain relief
- Voltage/current for the selected contact layout
- Environmental exposure and installation clearance
