Elecbee WF16-9pin Aviation Circular Connector with Cap Panel MountTI+ZG Male Plug and Female Socket Waterproof
SKU: EB-WF16J9TI-WF16K9ZG
Favorites
Key Features
Features:
- Model Number: WF16
- Shell Material: Zinc alloy
- Coupling: Thread
- Termination Type: Solder
- Insulator: High-temperature PPS
- Temperature Range: -40°C~85°C
- Contact material: Brass with gold plating
- Hole Diameter: 16mm

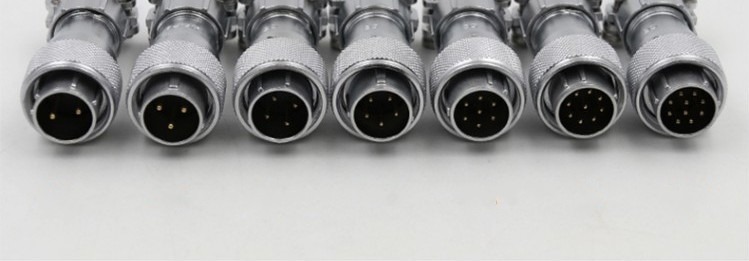

- Number of Contacts: 2/3/4/5/7/9/10Pin
- Applications: used in aviation, navigation, computers, communications, navigation, anti-theft devices, transportation, machinery and electronics, etc.
Show More
In-Stock
Qty.
1
Unit Price
$ 5.71
Ext. Price
$ 5.71
$ 5.71
Specifications
Attribute
Value
Search
Connector Type
Plug, Receptacle
Mounting Type
Panel Mount
Termination
Solder
Contact Type
Male，Female Pin
Shell Finish
Chrome Plated
Number of Positions
9 Pin
Operating Temperature
-40℃~+85℃
Ingress Protection
IP44
Rated Current
5A
Rated Voltage
400VAC
Features
Waterproof
Connector Series
WF16
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS
Cable Diameter
18AWG
Shell Size
16
Insulation Color
Black
Description
