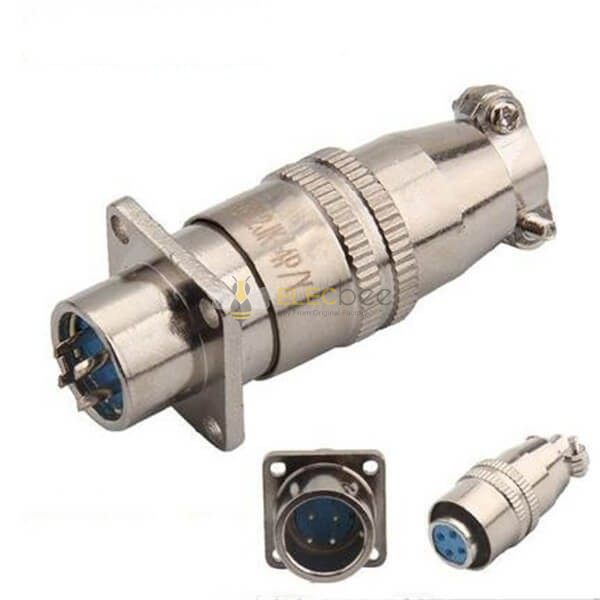

Elecbee Waterproof XS12 Square Flange Aviation Connector 4Pin Male Female Connector

SKU: EB-408-6006
Favorites

Key Features

Quick Connection: This XS12 4 pin straight circular connector set uses a push-pull ball lock for fast mating and release and includes a plug and receptacle.
Contact Finish: Gold-plated copper alloy contacts provide good conductivity and resist corrosion and oxidation.
Compact Installation: The compact, lightweight design supports four hole flange mounting with solder cup termination. Rated for 3A and 250V. The receptacle is sealed.
Applications: This circular instrumentation connector supports communication, video, navigation, marine, rail and electromechanical equipment wiring.

Show More

Specifications

Number of Positions:
2 Pin3 Pin4 Pin5 Pin6 Pin7 Pin
In-Stock
Qty.
1
Unit Price
$ 2.08
Ext. Price
$ 2.08
$ 2.08
Qty.
Unit Price
Ext. Price
10+
$1.98
$ 19.80
100+
$1.77
$ 177.00
Inquiry for more quantity?
Specifications
Show Similar Products >
Attribute
Value
Search
Connector Type
Plug, Receptacle
Mounting Type
Panel Mount
Mounting Feature
Four Flange
Termination
Solder Cup
Contact Type
Male，Female Pin
Shell Finish
Nickel Plated
Number of Positions
4 Pin
Operating Temperature
-20℃~+85℃
Rated Current
3A
Rated Voltage
250V
Connector Series
XS12
Color
Silver
Fastening Type
Push-on
Orientation
Straight
Shell Material
Zinc Alloy
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
Bakelite
Insulation Color
Blue
Show Similar Products >
Description
XS12 connector assembly with flange and cable clamp
XS12 · PLUG & RECEPTACLE

A connection built
around your mounting.

Push-pull circular connectors with cable, round-panel and square-flange forms. Choose the mounting interface and then match the contact arrangement.

2–7 contactsSolder terminationSilver-plated copper
Mating interfacesMaterials & structureMounting & dimensionsContact arrangements

Two interfaces, one matched connection

XS12 female cable plug and male square-flange receptacle
01

Female cable plug

The blue insert carries the sockets; the rear clamp holds the cable at the inlet.

02

Male receptacle

The pictured receptacle carries pins and mounts by its flange. Round-panel and inline styles have different mounting hardware.

The pictured pair illustrates the standard arrangement. Confirm contact gender and mating direction for reverse-contact versions.

Materials, shown where they work

Five numbered construction points on the XS12 assembly
1

Silver-plated copper contacts

The illustrated XS12 construction specifies silver-plated copper contacts. Match the contact finish to the selected part.

2

Bakelite insulator

The blue insulating insert locates and separates the contacts.

3

Mounting flange and holes

Fixing points on the illustrated square receptacle.

4

Nickel-plated zinc-alloy shell

The illustrated housing has a sandblasted, nickel-plated finish and grip rings around the cable-side body.

5

Two-screw rear cable clamp

Two retaining screws secure the cable inlet; the clamp opens for assembly or removal.

Mounting styles, with their dimensions

Select the mounting form, then check the opening, connector dimensions and fixing positions in its drawing.

Cable plug

Cable plug · dimensions

Round panel receptacle

Round panel receptacle · dimensions

Inline cable receptacle

Inline cable receptacle · dimensions

Square-flange receptacle

Square-flange receptacle · dimensions
Additional threaded panel version
XS12 additional plug and threaded panel receptacle dimensional photographs
XS12 additional section and mounting drawings

This drawing group shows another configuration. Its quoted dimensions are not merged with the preceding plug and flange dimensions.

Dimensions and contact patterns apply to the illustrated configurations. Match the exact part, mounting style and mating orientation before making the panel or wiring the connector.

Contact count is only the first check

234567

Match the keying, contact gender and viewing direction as well as the number of contacts. The following drawing shows solder-cup arrangements. Two different 2-contact layouts are illustrated (positions 1/2 and 2/4); match the numbered positions, not only the contact count. The six-contact version is identified with the center contact not fitted.

XS12 solder-cup arrangements and six-pin center-not-fitted note
See the 2–7 contact product examples
XS12 female plug examples in 2 through 7 contact versions
XS12 male receptacle examples

Connection reference

ItemXS12 series
Contact choices2 / 3 / 4 / 5 / 6 / 7
Panel-cutout reference12 mm
ConnectionPush-pull ball lock
TerminationSolder

Check the exact mounting drawing and electrical rating for the selected part. A shared series name does not make different mounting or contact variants interchangeable.

Complete the connection

01

Match the interface

Use the same series, contact count and compatible pin/socket arrangement on both halves.

02

Check the installation

Confirm panel thickness, opening, fixing method, cable diameter and clearance for the cable clamp.

03

Select the supplied part

Choose a plug, receptacle or matched set as listed for the selected item. Sealing and electrical ratings must be checked for that part.
