Elecbee MMDVM HS HAT Digital Radio Hotspot Board, UHF 433-900 MHz or VHF 144-220 MHz, 0.5 ppm, DMR P25 YSF D-Star, for Raspberry Pi

SKU: 1718374
Favorites

Key Features

MULTI-MODE DIGITAL RADIO HOTSPOT: MMDVM HS HAT expansion board supports DMR, P25, YSF System Fusion and D-Star digital communication modes when installed in a compatible Raspberry Pi and Pi-Star setup.

SELECT UHF OR VHF VERSION: Choose the UHF 433-900 MHz version or the VHF 144-220 MHz version for the required operating band. These are separate board options and one board does not cover both ranges.

0.5 PPM FREQUENCY STABILITY: Uses a 32-bit ARM processor with 0.5 ppm frequency stability and up to 10 mW RF output. Firmware is preloaded and supports software-based upgrading.

RASPBERRY PI AND PI-STAR SUPPORT: Designed for compatible Raspberry Pi boards, including Raspberry Pi Zero. Onboard Tx, Rx, PTT and Mode LEDs show operating status, and a reserved connector supports an optional OLED display.

65 x 30 MM ANTENNA KIT: This onboard-antenna version also includes one separate antenna; the onboard and external antennas cannot operate simultaneously. Package includes 1 hotspot board and 1 antenna. Raspberry Pi, OLED display, case, power supply and other accessories are not included.

Show More
In-Stock
Qty.
1
Unit Price
$ 15.99
Ext. Price
$ 15.99
$ 15.99
Qty.
Unit Price
Ext. Price
10+
$15.35
$ 153.50
100+
$14.39
$ 1439.00
Inquiry for more quantity?
Description

MMDVM HS HAT · 0.5 PPM

Digital Radio Hotspot Board for Raspberry Pi

A compact MMDVM gateway expansion board for building a compatible Pi-Star digital radio hotspot supporting DMR, P25, YSF System Fusion and D-Star.

Elecbee MMDVM HS HAT digital radio hotspot board and included antenna

DIGITAL RADIO MODES

One Hotspot Board for Four Digital Modes

The MMDVM HS HAT handles DMR, P25, YSF System Fusion and D-Star modes through a compatible Raspberry Pi and Pi-Star installation. The 32-bit ARM processor manages the digital radio interface while onboard LEDs provide visible operating status.

DMR Digital Mobile Radio
P25 P25 digital mode
YSF System Fusion
D-Star D-Star digital mode

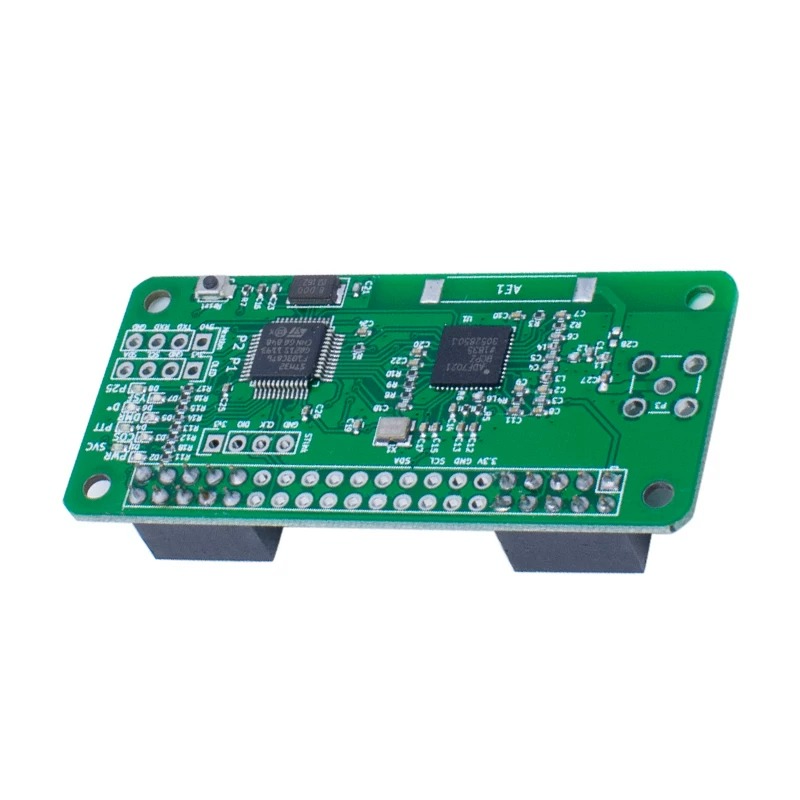

Front component view of the MMDVM HS HAT digital radio hotspot board

CHOOSE THE CORRECT BAND

Separate UHF and VHF Versions

Select the version that matches the required operating band. The UHF and VHF options are separate products; a single board does not provide simultaneous coverage of both listed frequency ranges.

UHF Version 433-900 MHz
VHF Version 144-220 MHz
Selection Rule Choose one frequency version when ordering

TECHNICAL DATA

Key Specifications

Brand Elecbee
Board Type MMDVM HS HAT digital radio hotspot expansion board
Processor 32-bit ARM processor
Frequency Stability 0.5 ppm
RF Output Up to 10 mW
Supported Modes DMR, P25, YSF System Fusion and D-Star
Status Indicators Tx, Rx, PTT and Mode LEDs
Software Pi-Star
Host Platform Compatible Raspberry Pi boards, including Raspberry Pi Zero
Board Size Approximately 65 x 30 mm

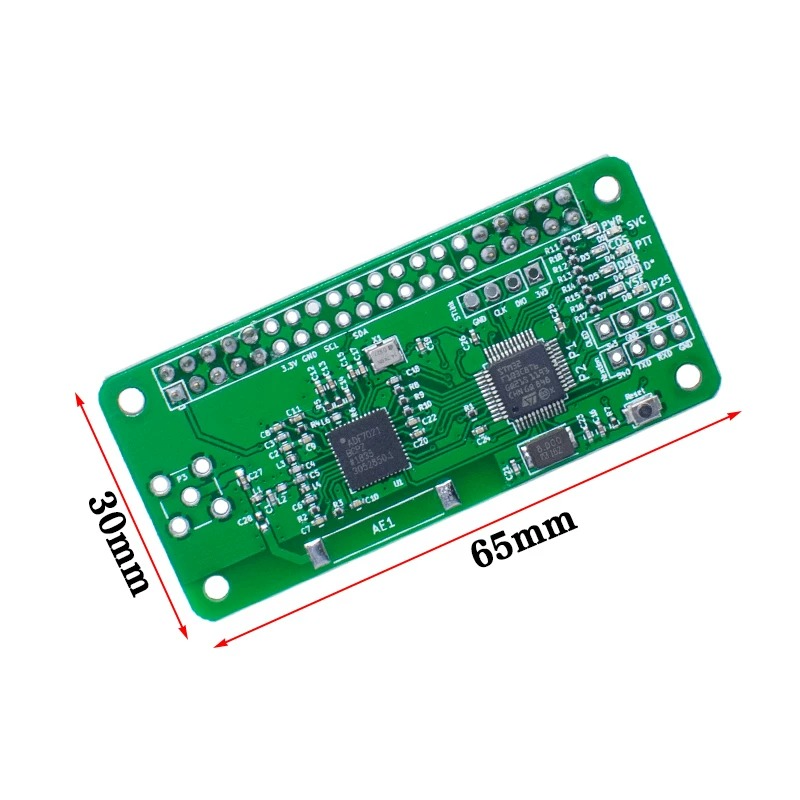

MMDVM HS HAT hotspot board dimensional view showing 65 by 30 millimeters

RASPBERRY PI INTEGRATION

GPIO HAT Installation with Pi-Star

The two GPIO socket rows mount the hotspot board on a compatible Raspberry Pi, including Raspberry Pi Zero. Firmware is preloaded and can be upgraded through supported software. Pi-Star provides the host software environment for configuration and operation.

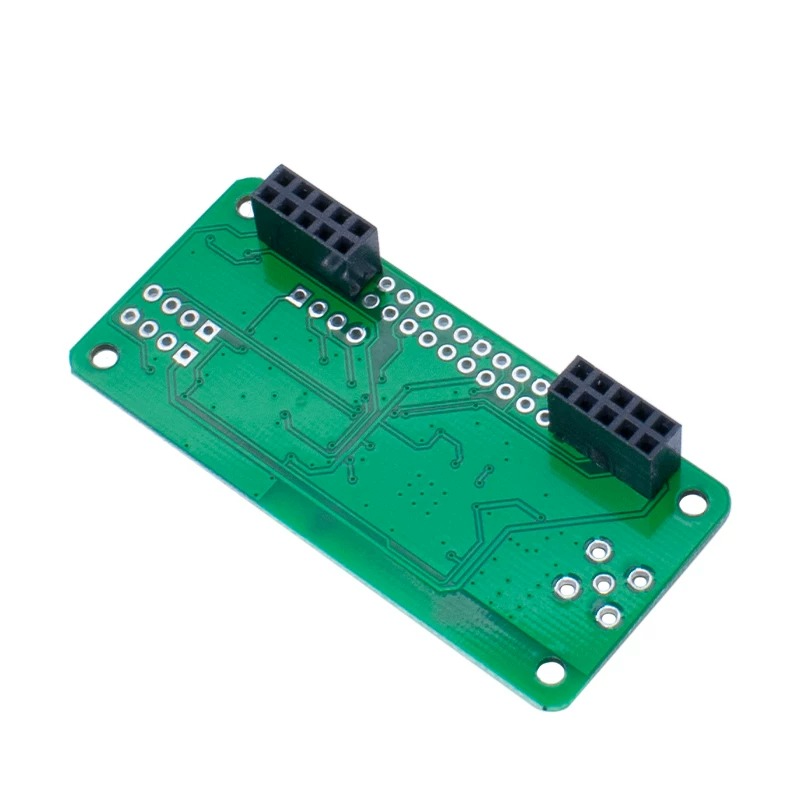

Rear view of the MMDVM HS HAT board with Raspberry Pi GPIO socket headers

ANTENNA AND DISPLAY OPTIONS

Use One Antenna Path at a Time

This version includes an onboard antenna path and one separate antenna. The onboard and external antennas cannot operate simultaneously; configure and use only the intended antenna path.

A connection position is reserved for an optional OLED display. The OLED screen is not included and compatibility must be confirmed before installation.

Important Compatibility Notes Select the correct UHF or VHF version before ordering. Raspberry Pi compatibility, Pi-Star configuration and operating frequencies must match the intended radio system. Direct PC connection is not plug-and-play and requires a user-provided compatibility and connection solution.

Package Contents

1 x MMDVM HS HAT digital radio hotspot board 1 x antenna Raspberry Pi, OLED display, case, power supply and other accessories are not included.
