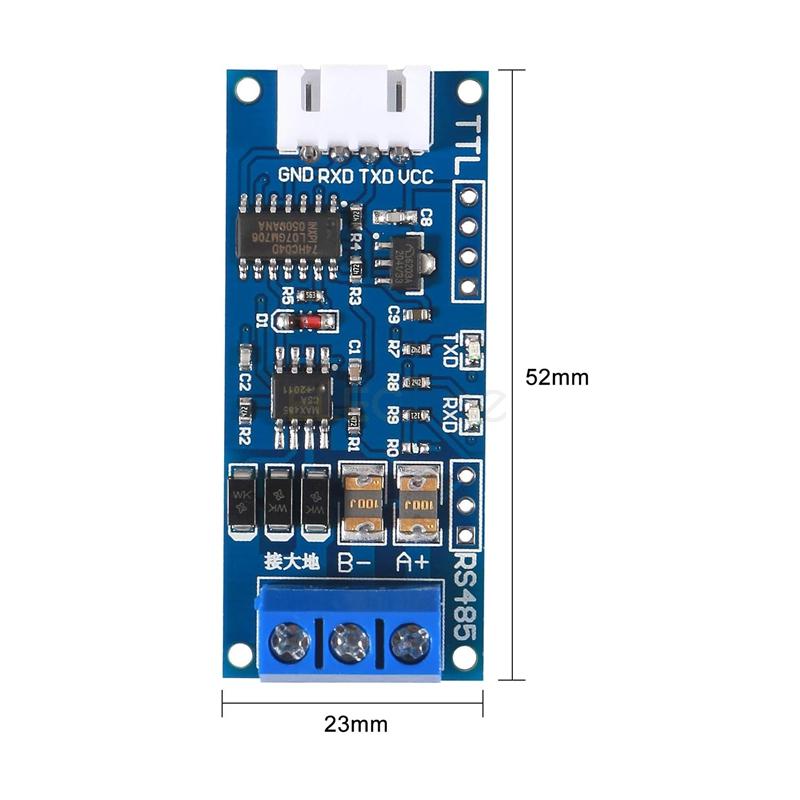

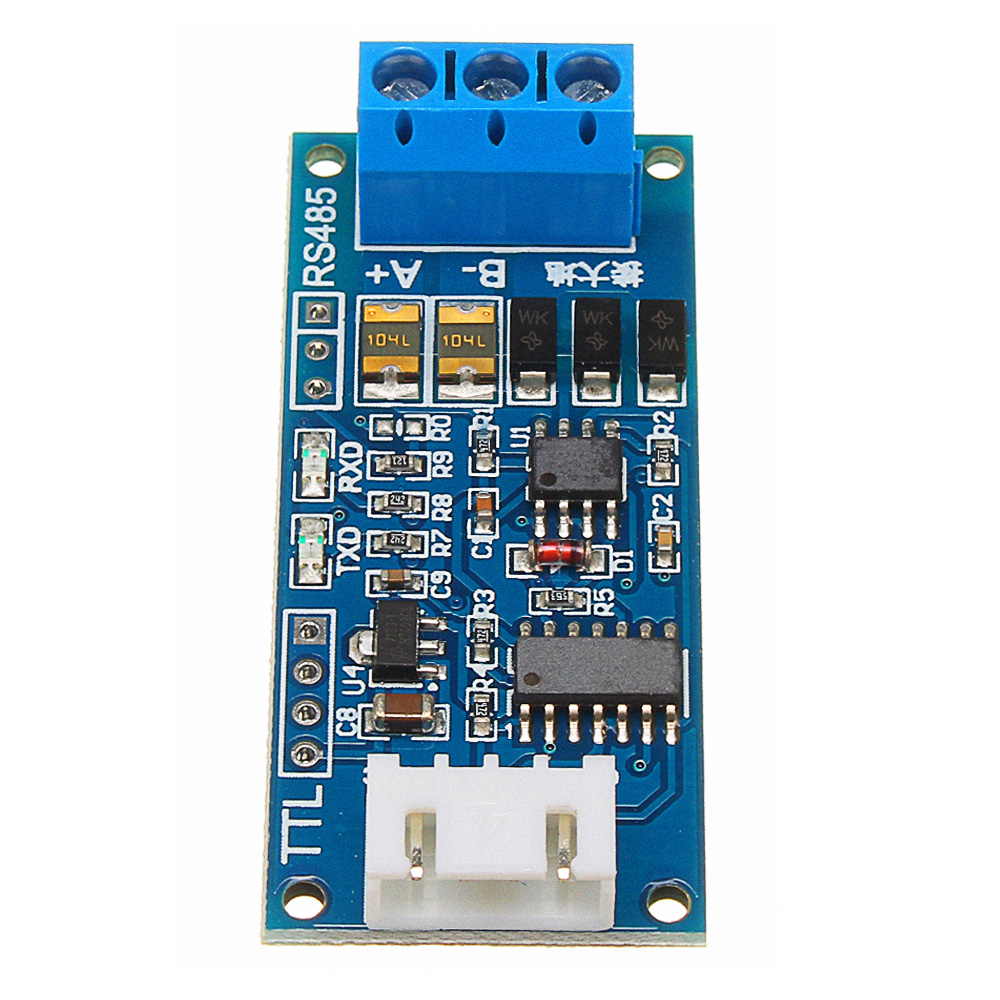

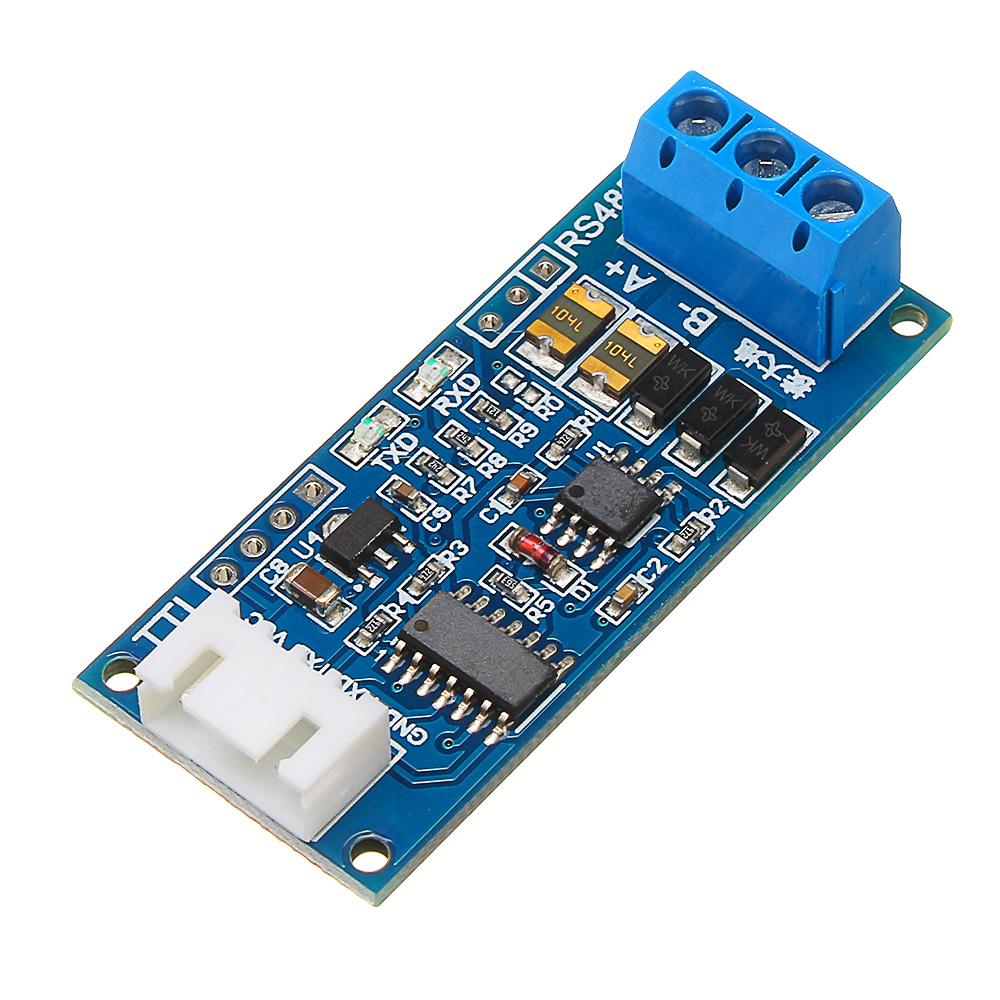

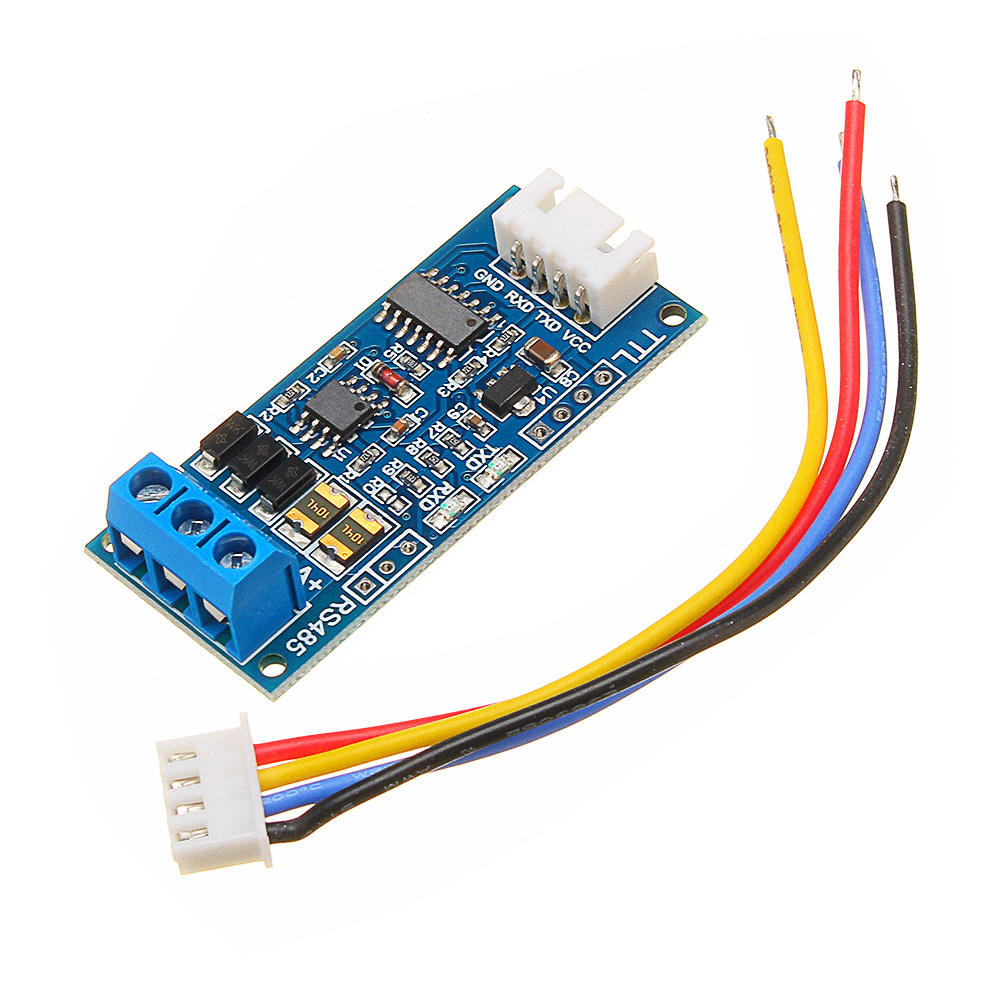

Elecbee Industrial RS485 to TTL Converter Module Automatic Flow Control 3.0V-30V Wide Voltage Compatible with 3.3V/5V Systems with Silicone Wires
SKU: EB0048933
Favorites
Key Features
Seamless Signal Integration: Features a wide 3.0V to 30V power supply range with full 3.3V and 5.0V logic level compatibility for versatile system matching.
Hassle-Free Communication: Integrated automatic flow control technology handles direction switching internally, allowing you to operate RS485 as easily as a standard serial port.
Superior Environmental Protection: Industrial-grade design with lightning protection and high EMC/EMI performance ensures stable operation in harsh field conditions from -40°C to +85°C.
Long-Distance Reliability: Supports reliable data transmission up to 800 meters and features a switchable 120-ohm termination resistor (R0) to prevent signal reflection.

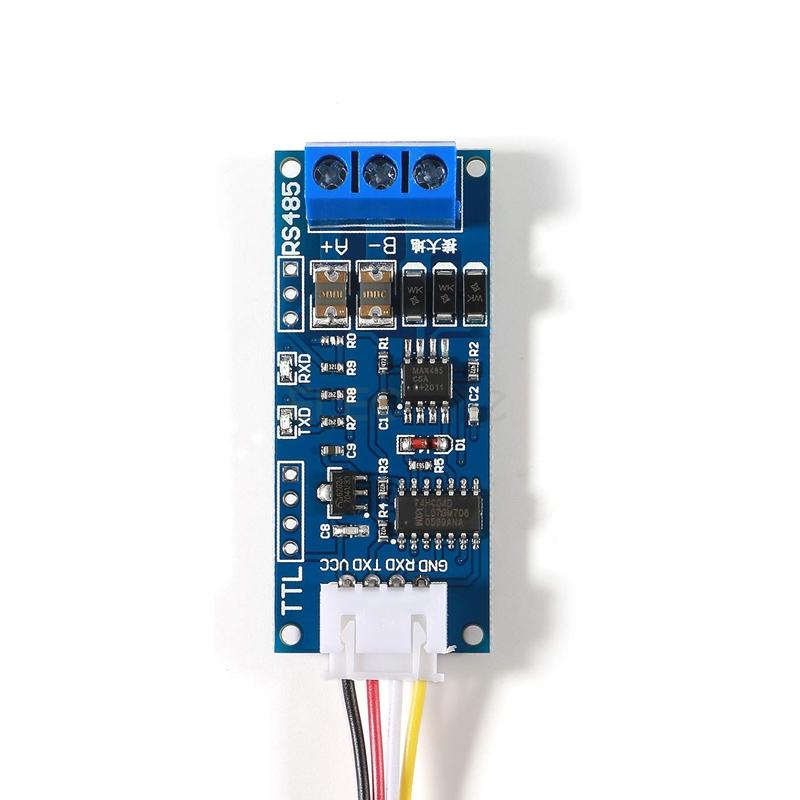

Real-Time Diagnostics: Equipped with dedicated RXD and TXD signal indicators, providing immediate visual confirmation of data transmission and reception status.
Show More
Specifications
Attribute
Value
Search
Wireless Capability
Bluetooth + Cellular
Model
RS485
Description

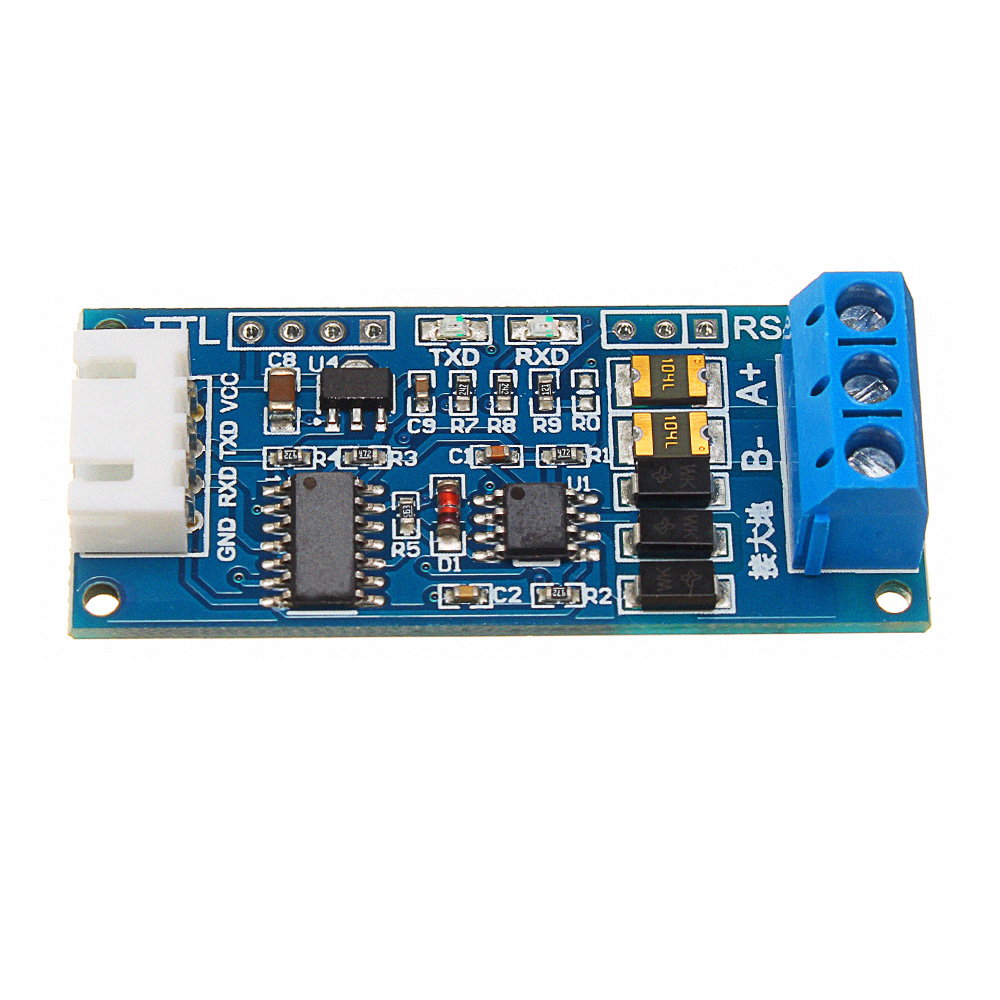

TTL to RS485 module Hardware automatically flows to the control board, RS485 to TTL signal microcontroller serial port

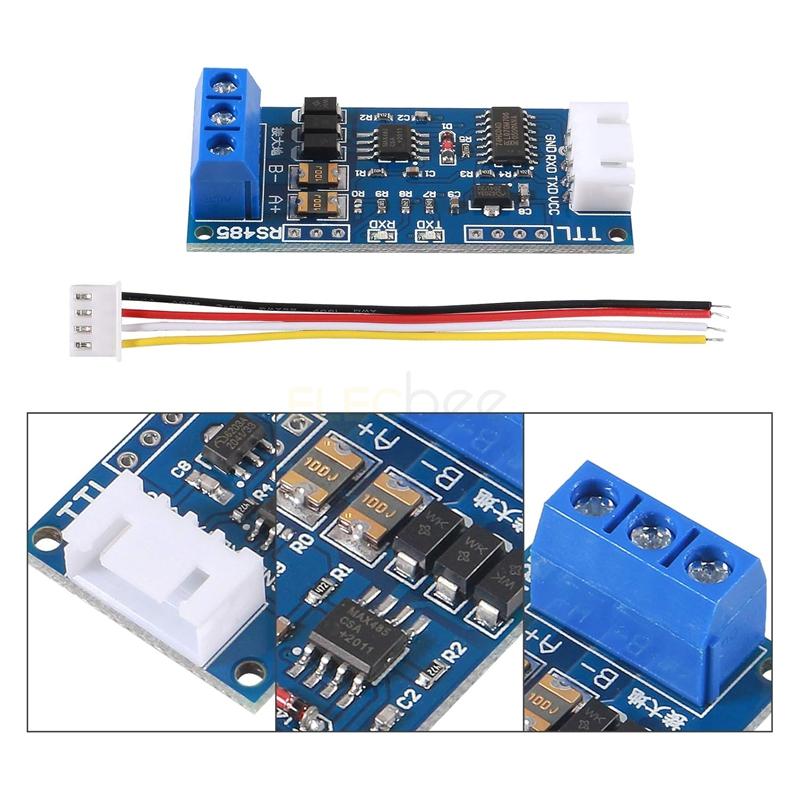

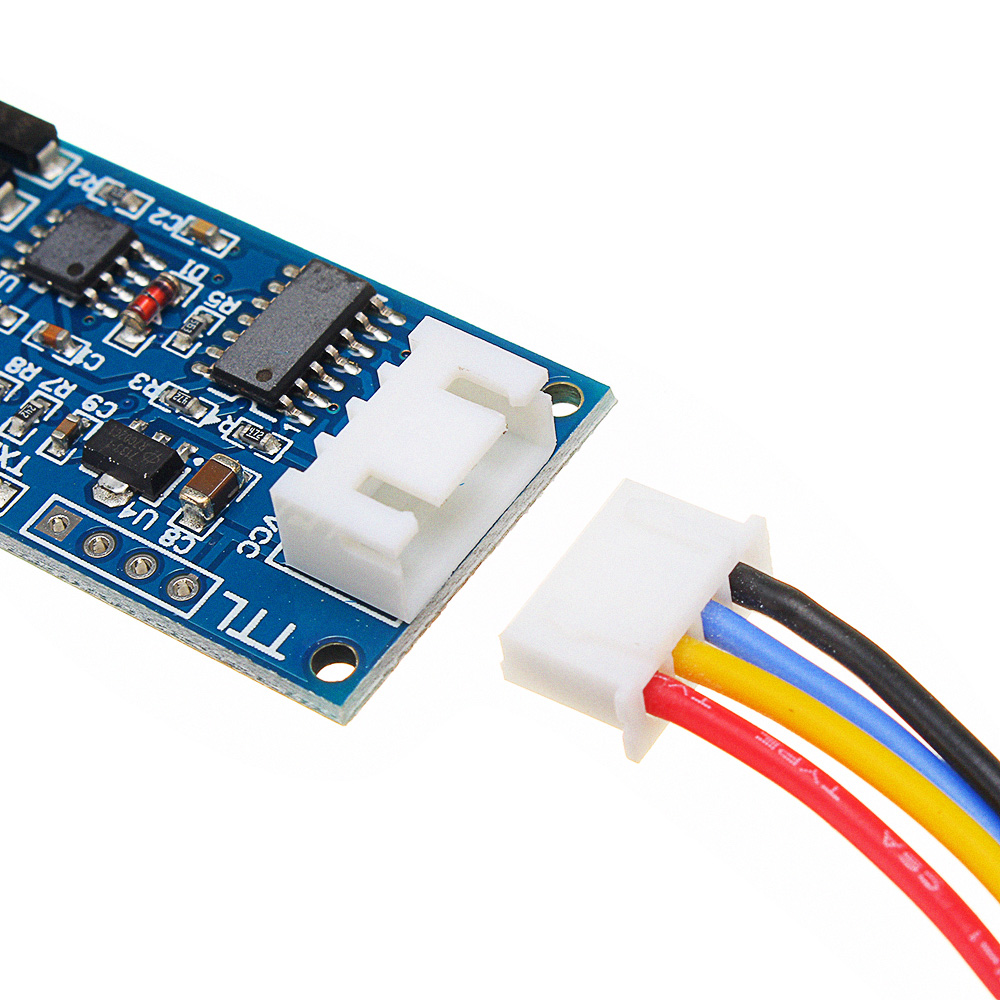

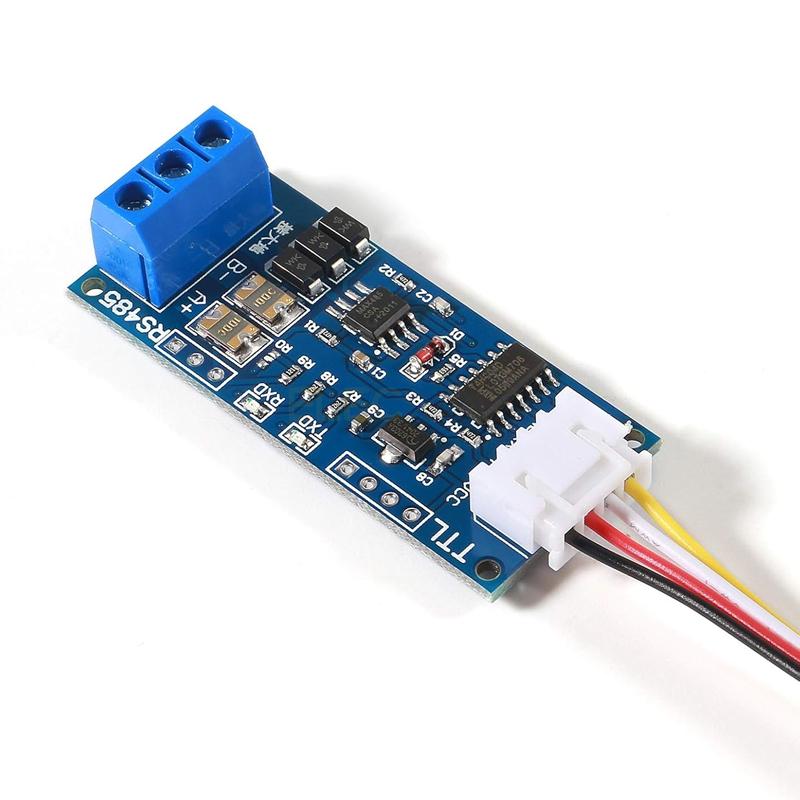

The power supply of this product is a wide voltage (3.0V~40V), which realizes the compatibility of 3.3V system and 5.0V system, and can match 3.3V and 5.0V signals. This product comes with wiring terminals and silicone wires, which can be directly wired and used. All original imported chips are used, with powerful performance, lightning protection design, strong anti-interference ability, and industrial grade.
This transparent transmission module realizes the conversion between TTL signals and RS485 signals, but everyone must know that 485 is half-duplex communication. This communication method can realize two-way communication, but it cannot be carried out in two directions at the same time, and must be carried out alternately; that is, each section of the communication channel can be a sender or a receiver, but at the same time, information can only be transmitted in one direction.
The module realizes the automatic flow control of RS485 signals and the automatic switching of the receiving and sending directions. Using this module is as simple as operating a serial port.
Baud rate: 110~256000bps
Module features:

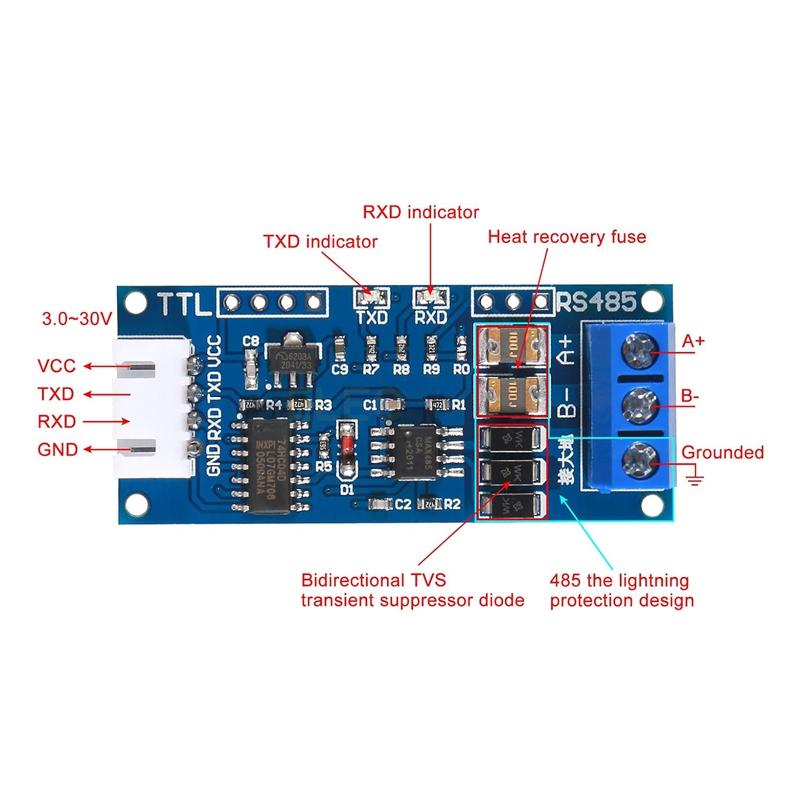

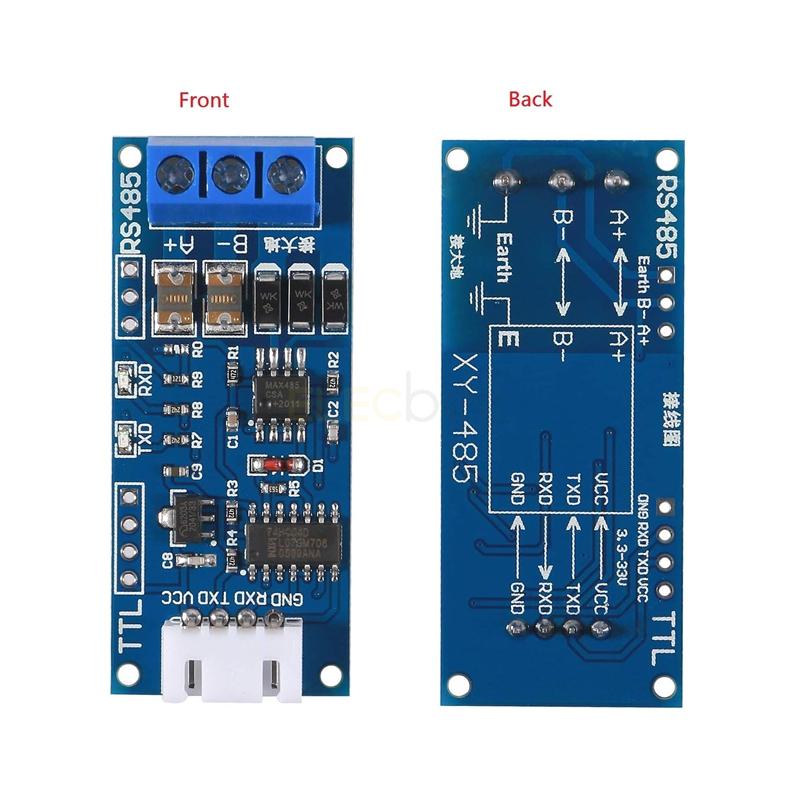

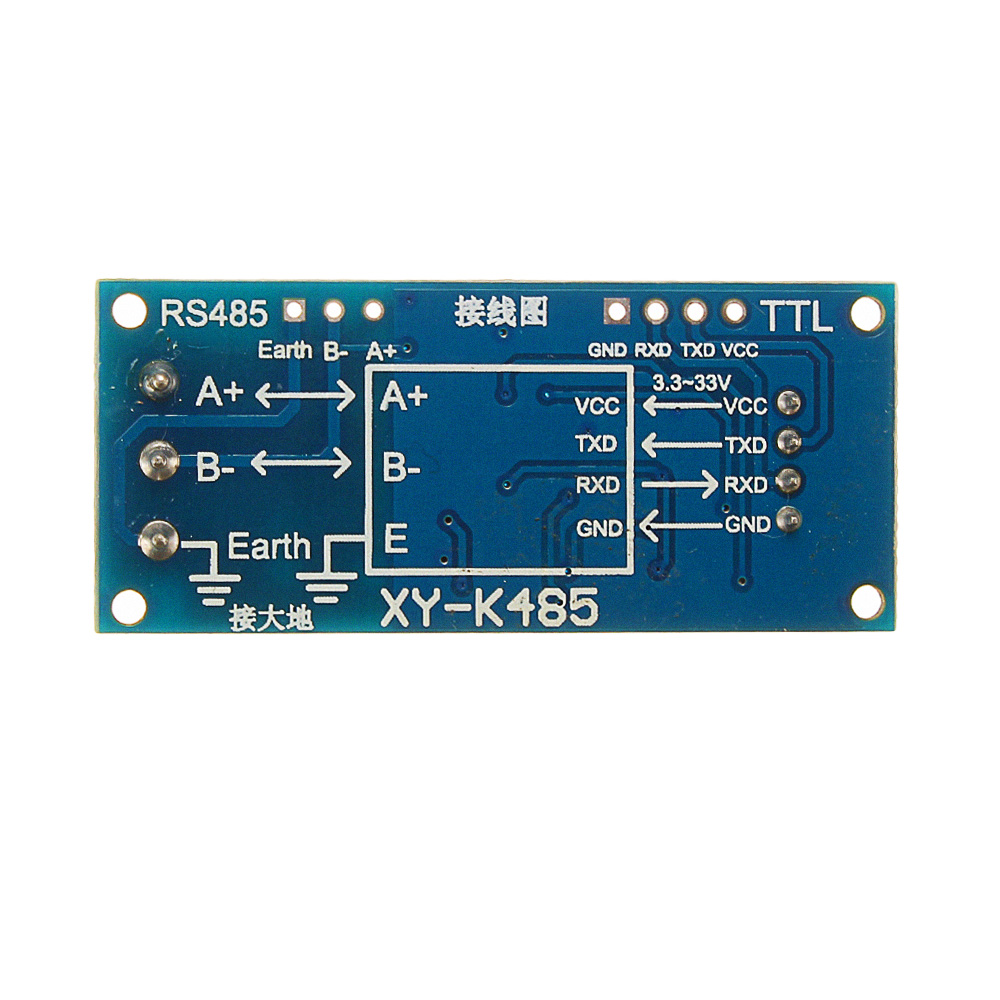

(1) This module fully considers the 485 bus lightning protection design and anti-interference design, with extremely high EMC (electromagnetic compatibility) and EMI (electromagnetic anti-interference) performance. When transmitting over long distances in the wild, connecting the "ground connection" end of the module to the ground can play a good role in anti-interference and lightning protection, making the 485 bus safer; it can be disconnected from the ground when transmitting over short distances indoors.

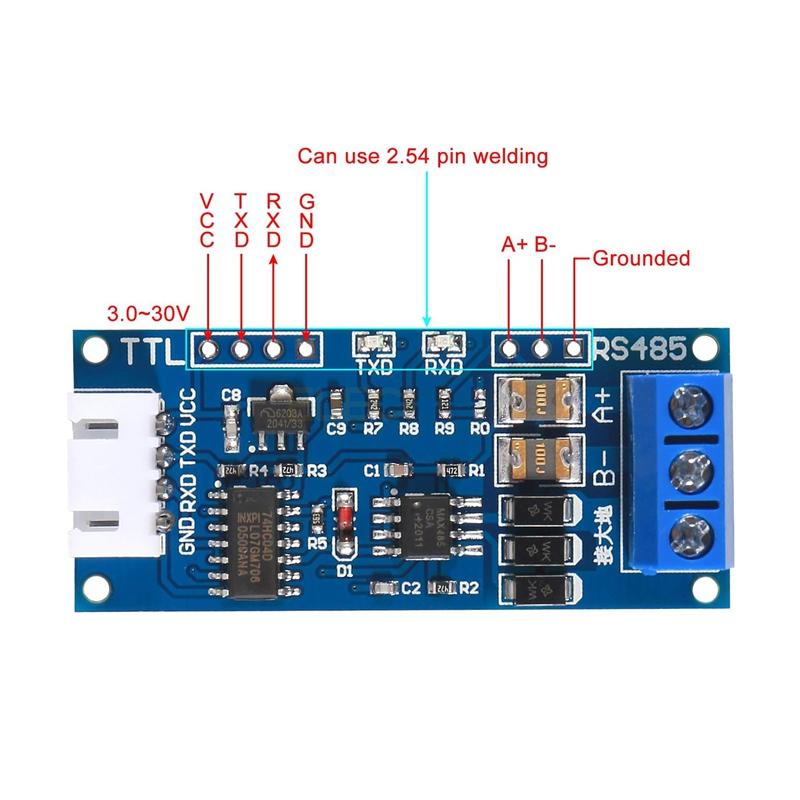

(2) With standard 2.54 pitch pin headers, it is convenient for your secondary development
(3) With 120 ohm matching resistors, shorting R0 can enable the matching resistors. It is recommended to short-circuit for long-distance transmission.
(4) Supports multi-machine communication, and at least 40 nodes can be connected to the same network
(5) Can be hot-swapped, and there will be no signal deadlock
(6) Anti-interference routing and copper laying methods to prevent signal interference
Package including:
1 x TTL to RS485 Module

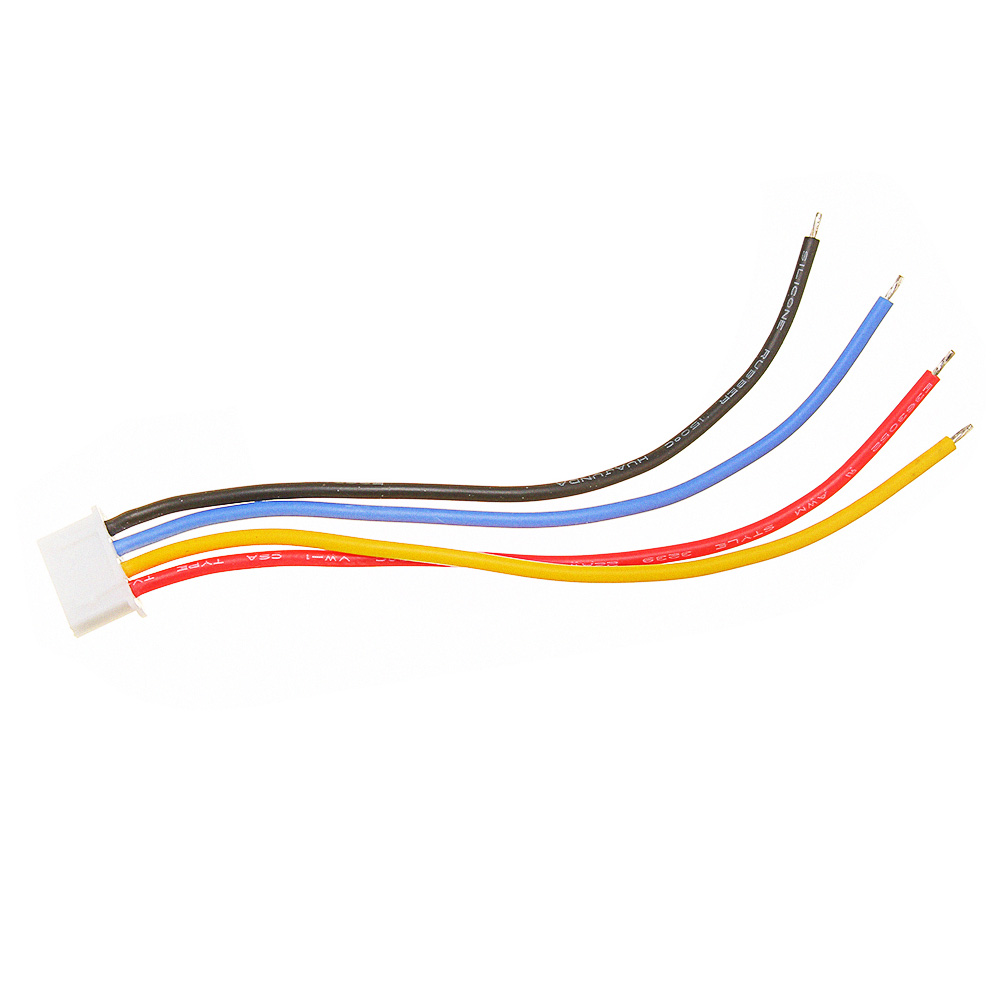

1 x Cable
