Elecbee TTGO T-Beam ESP32 v0.7 - LoRa 433/868/915MHz + WiFi/Bluetooth + GPS NEO-6M | SMA Antenna 18650 Support

SKU: EB0043005

Favorites

Key Features

Features:

Tri-Band LoRa & ESP32 Powerhouse: Features ESP32 (WiFi/Bluetooth, 4MB Flash) and LoRa (433/868/915MHz) for long-range IoT projects. +20dBm TX power and -139dBm RX sensitivity ensure reliable communication up to 10km.
Precision GPS Tracking: Built-in NEO-6M GPS module with ceramic antenna and data backup battery. Operates at 9600 baud rate for real-time location tracking in drones, asset monitoring, and outdoor applications.

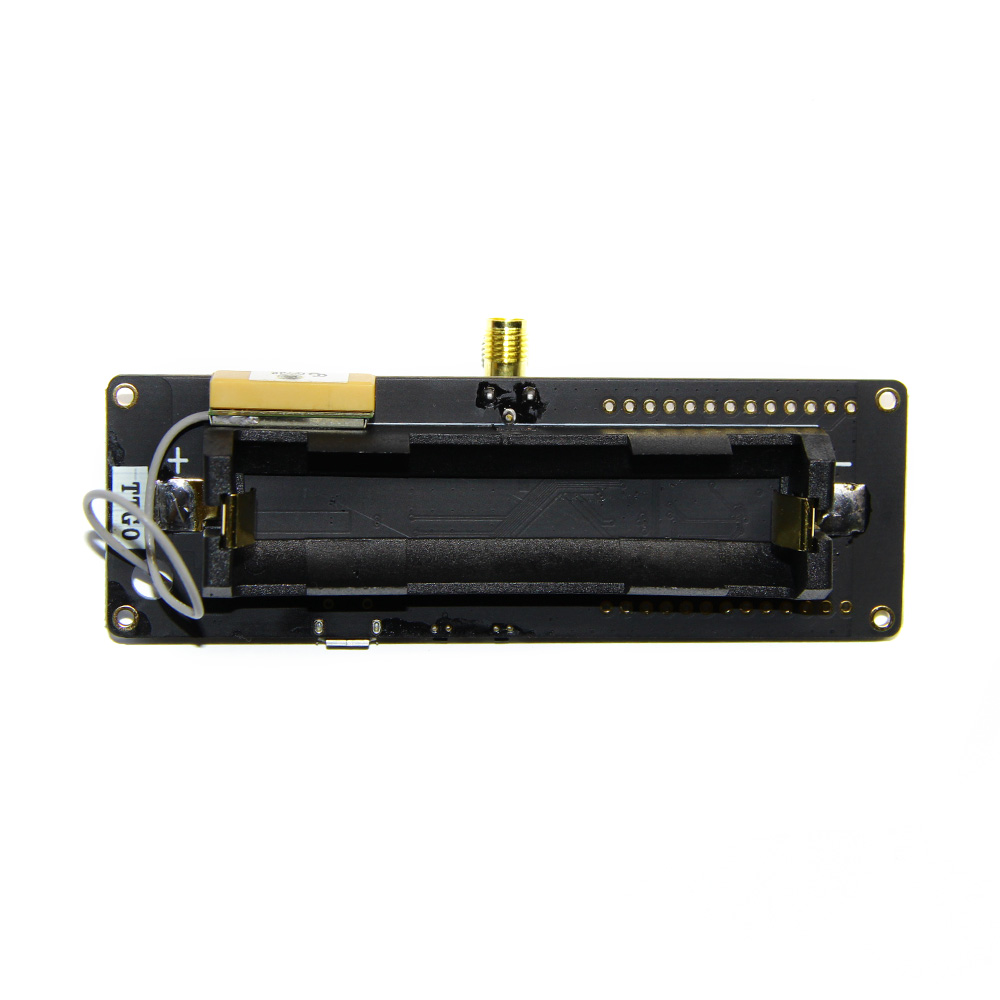

Ultra-Low Power & Battery Management: AXP192 power management supports 18650 batteries with 2A charging. Achieves 0.2μA sleep current and 1.5μA idle current, ideal for battery-powered deployments lasting months.
Industrial-Grade Reliability: Operates in -40℃ to +85℃ environments. Features automatic frequency correction, digital RSSI, and fast wake-up for stable performance in harsh conditions.
Upgraded v0.7 Design: Includes GPIO35 pin replacement, reduced sleep current, and SMA antenna. Note: This is the v0.7 model. For the latest version, see TTGO T-Beam V1.1 (Product ID: 1609523).

Specifications

Show Similar Products >

Description

ESP32
ESP32 Version: REV0.7
WIFI
bluetooth
4MB Flash
3D Antenna

LORA
Working voltage: 1.8~3.7v
Acceptable current: 10~14mA
Transmit current: 120mA@+20dBm
               90mA@+17dBm
              29mA@+13dBm
Operating frequency: 433MHz/868MHz/915MHz
Transmit power: +20dBm
Receive sensitivity: -139dBm@LoRa &62.5Khz&SF=12&146bps
-136dBm@LoRa &125Khz&SF=12&293bps
-118dBm@LoRa &125Khz&SF=6&9380bps
-123dBm@FSK&5Khz&1.2Kbps
Frequency error: +/-15KHz
FIFO space: 64Byte
Data rate: 1.2K~300Kbps@FSK
                  0.018K~37.5Kbps@LoRa
Modulation Mode: FSK, GFSK, MSK, GMSK, LoRa TM, OOK
Interface form: SPI
Sleep current: 0.2uA@SLEEP
                          1.5uA@IDLE
Operating temperature: -40℃- +85℃
Digital RSSI function
Automatic frequency correction
Automatic gain control
RF wake-up function
Low voltage detection and temperature sensor
Fast wake-up and frequency hopping
Highly configurable data packet handler

GPS
GPS modules NEO-6M, 3V-5V power supply Universal
Destined module with ceramic antenna, signal super
Save the configuration parameter data EEPROM Down
With data backup battery
There are LED signal indicator
Default Baud Rate: 9600
Power
IP5306
2A Bat
tery Management

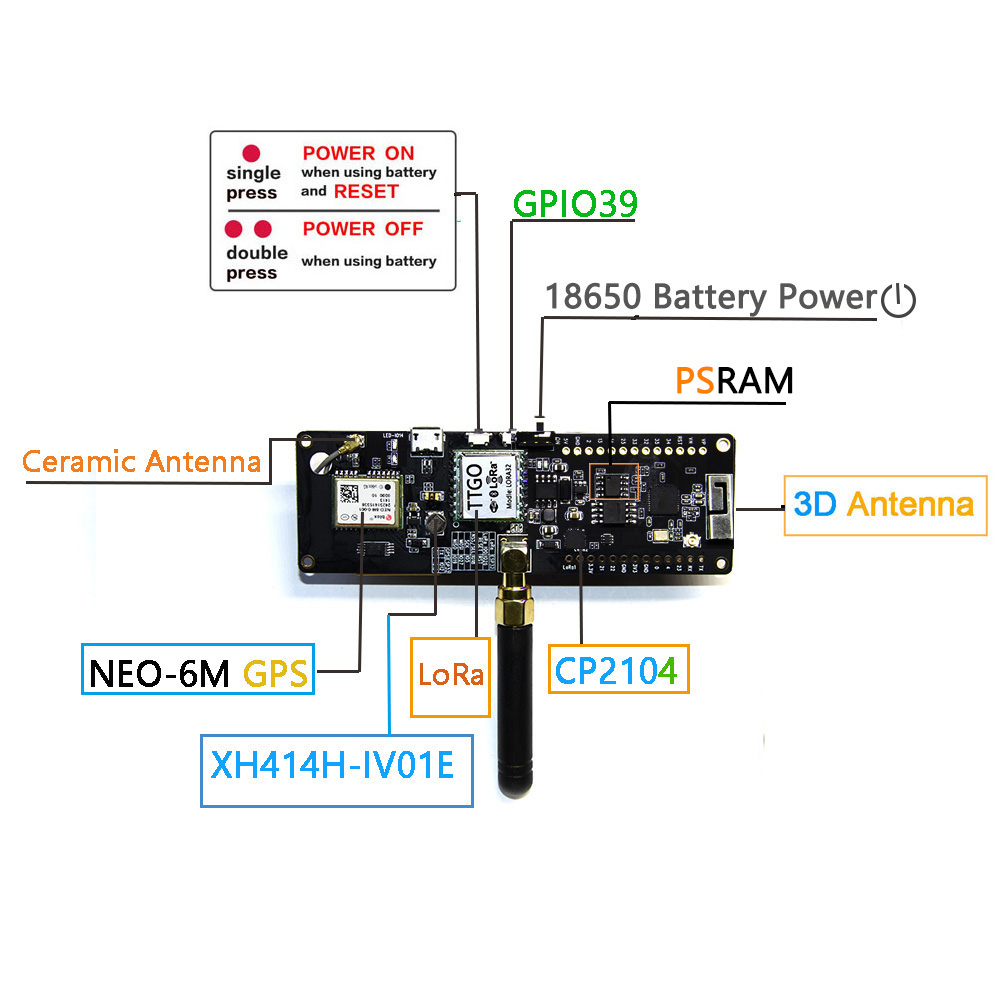

LED indicator: There are 4 LEDs show the battery status in real time.
Power button: Click one time will start. Fast click 2 times will shut down.

Product Details:
LILYGOreg-TTGO-T-Beam-ESP32-433868915Mhz-v07-WiFi-Wireless-bluetooth-Module-ESP-32-GPS-NEO-6M-SMA-LO-1320390

LILYGOreg-TTGO-T-Beam-ESP32-433868915Mhz-v07-WiFi-Wireless-bluetooth-Module-ESP-32-GPS-NEO-6M-SMA-LO-1320390

Product Upgrade Content:

1. Pin GPIO34 pin is replaced with GPIO35

2. Replace the charging IC (TP5400) with the power management AXP192

3.GPS TX, RX pin replacement

4. Power on and remove, replace with button to open

5. Reduced sleep current

6. GPS battery replacement

7. This item is out of stock now, please buy the new version>>> V1.1 version: Product ID 1609523 <<<

8. CN warehouse chip: CH9102X, UK warehouse chip: CP2104

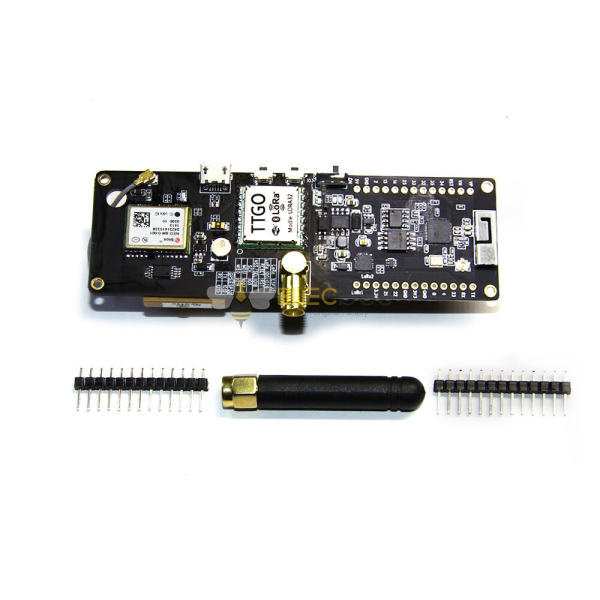

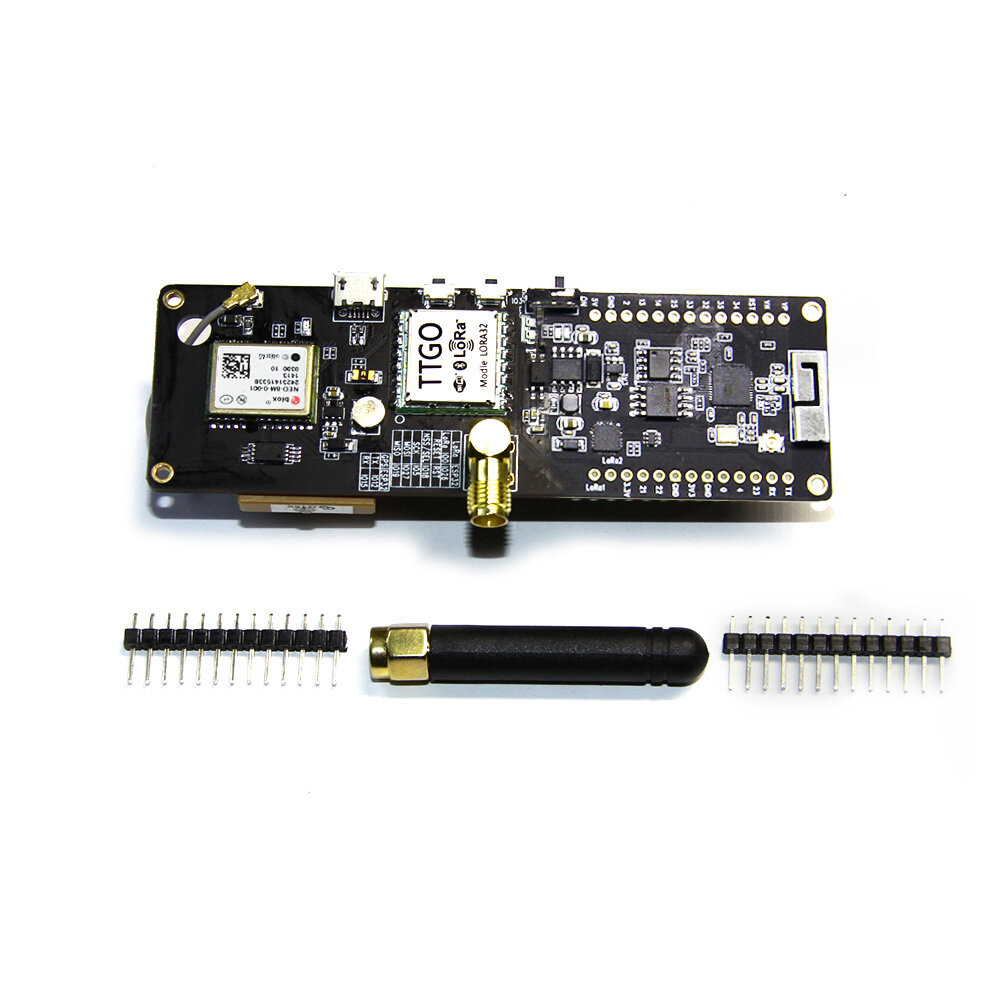

Package includes:
1 x TTGO T-Beam ESP32
1 x Antenna
2 x Pin
LILYGOreg-TTGO-T-Beam-ESP32-433868915Mhz-v07-WiFi-Wireless-bluetooth-Module-ESP-32-GPS-NEO-6M-SMA-LO-1320390
