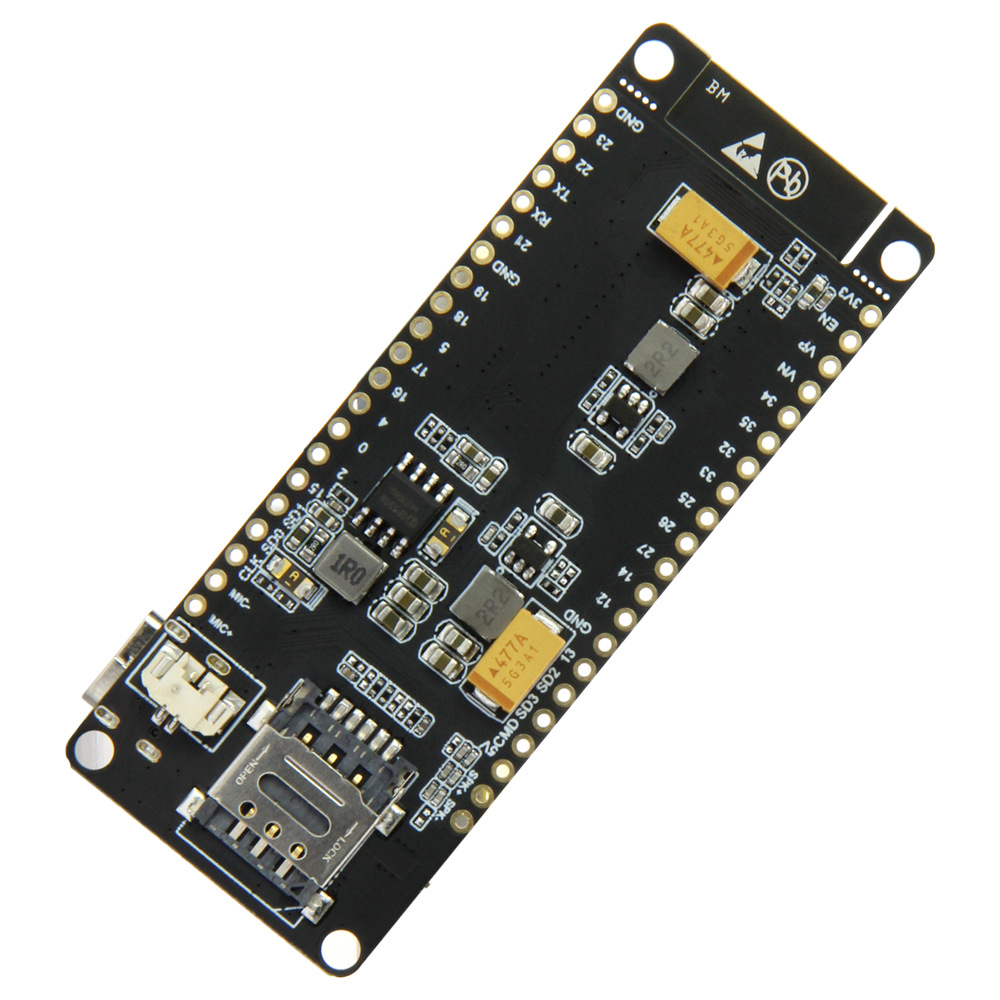

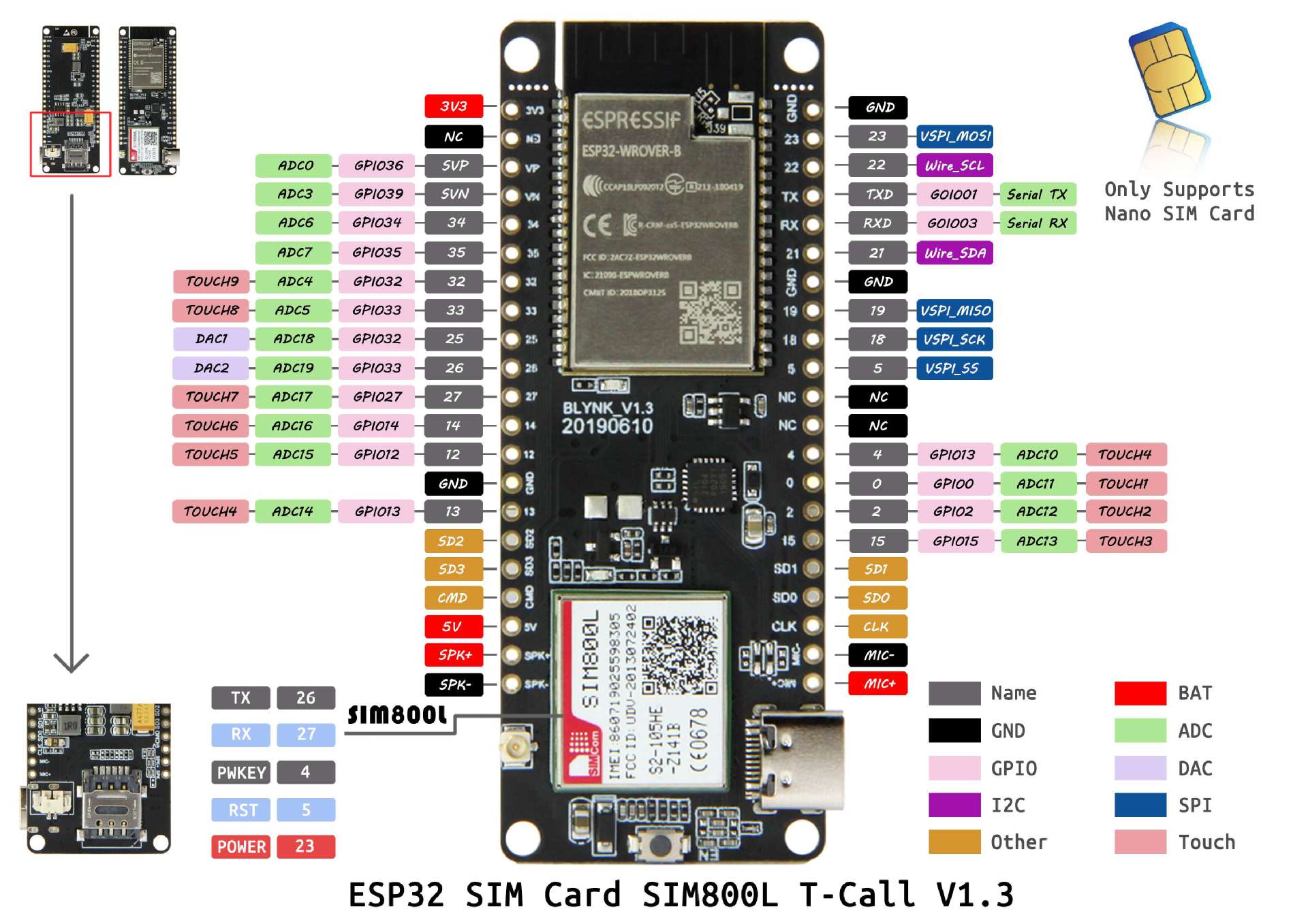

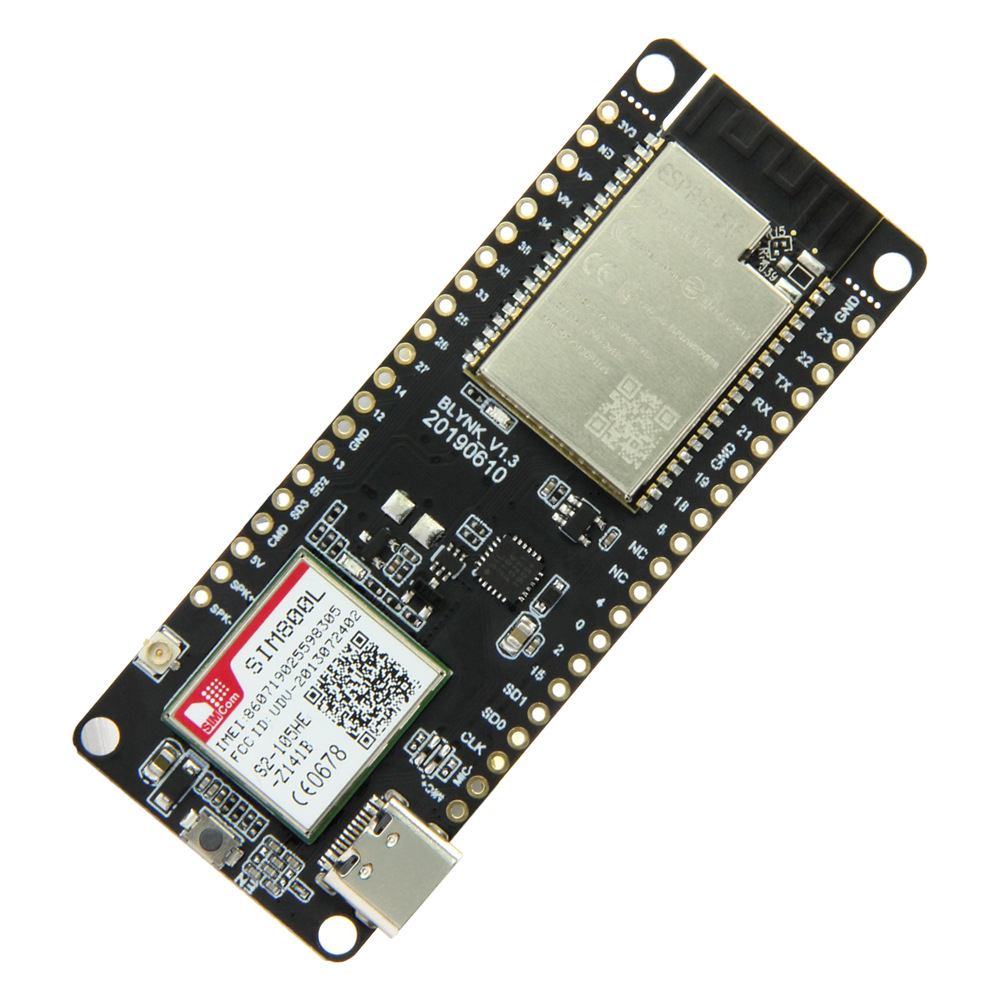

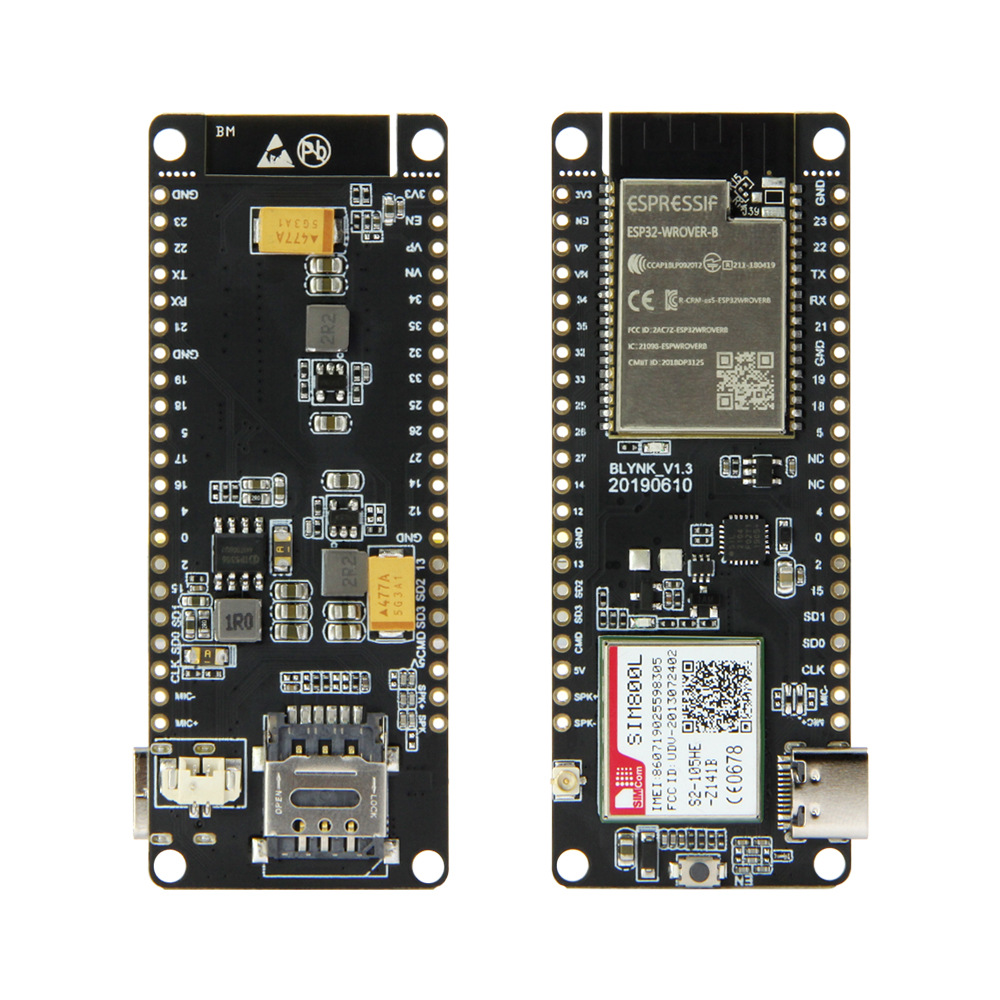

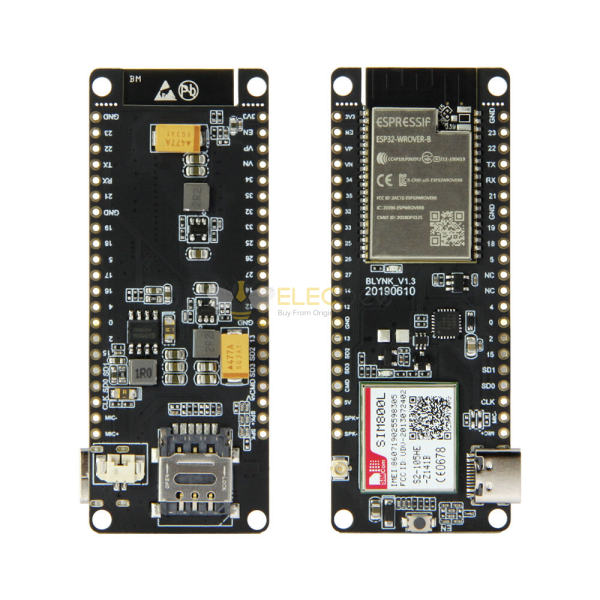

Elecbee T-Call V1.3 V1.4 ESP32 Wireless Module GPRS Antenna SIM Card SIM800L Board
SKU: EB0042648
Favorites
Key Features
| Hardware Specifications | |
| Chipset | ESPRESSIF-ESP32 240MHz Xtensa® dual-core 32-bit LX6 microprocessor |
| FLASH | QSPI flash 4MB / PSRAM 8MB |
| SRAM | 520 kB SRAM |
| Button | Reset |

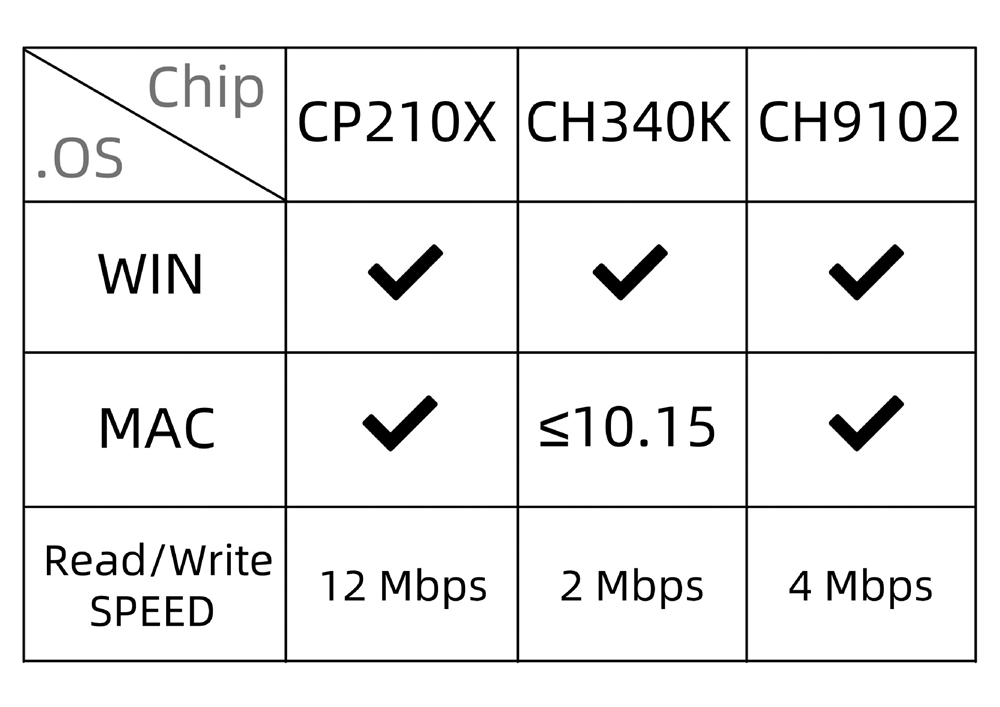

| USB to TTL | CP2104/CH9102F/CH304K (Optional) |
| Modular interface | UART, SPI, SDIO, I2C, LED PWM, TV PWM, I2S, IRGPIO, capacitor touch sensor, ADC, DACLNA pre-amplifier |
| On-board clock | 40MHz crystal oscillator |
| Working voltage | 2.7V-3.6V |
| Working current | About 70mA |
| Sleep current | About 300uA |
| SIM card | Only supports Nano SIM card |
| Working temperature range | -40℃ ~ +85℃ |

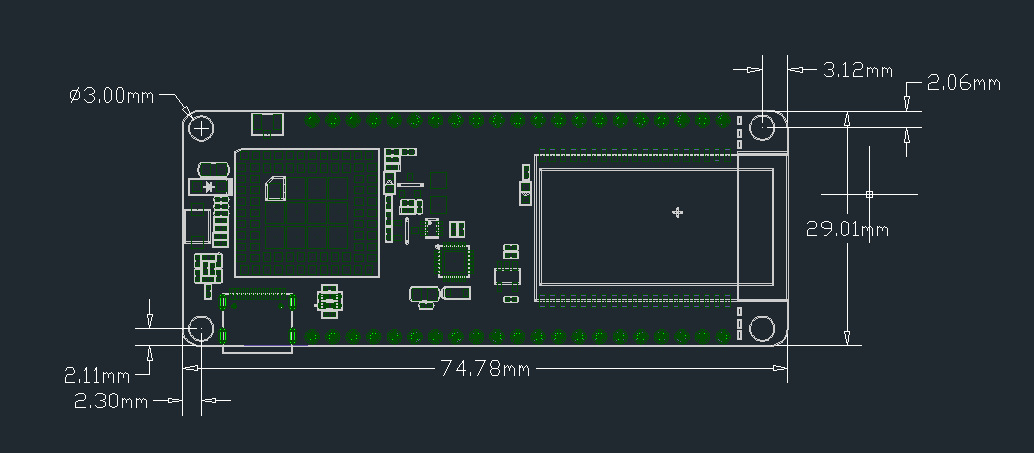

| Size&Weight | 78.83mm*28.92mm*8.06mm(11.77g) |
| Power Supply Specifications | |
| Power Supply | USB 5V/1A |
| Charging current | 500mA |
| Battery | 3.7V lithium battery |
| JST Connector | 2Pin 1.25mm |
| USB | Type-C |
| Wi-Fi | |
| Standard | FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC |
| Protocol | 802.11 b/g/n(802.11n, speed up to150Mbps)A-MPDU and A-MSDU polymerization, support 0.4μS Protection interval |
| Frequency range | 2.4GHz~2.5GHz(2400M~2483.5M) |
| Transmit Power | 22dBm |
| Communication distance | 300m |
| bluetooth | |
| Protocol | meet bluetooth v4.2BR/EDR and BLE standard |
| Radio frequency | with -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH |
| Audio frequency | CVSD&SBC audio frequency |
| Software specification | |
| Wi-Fi Mode | Station/SoftAP/SoftAP+Station/P2P |
| Security mechanism | WPA/WPA2/WPA2-Enterprise/WPS |
| Encryption Type | AES/RSA/ECC/SHA |
| Firmware upgrade | UART download/OTA(Through network/host to download and write firmware) |
| Software Development | Support cloud server development /SDK for user firmware development |
| Networking protocol | IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT |
| User Configuration | AT + Instruction set, cloud server, android/iOSapp |
| OS | FreeRTOS |
More Information: https://github.com/Xinyuan-LilyGO/TTGO-T-Call
Show More
In-Stock
Qty.
1
Unit Price
$ 30.99
Ext. Price
$ 30.99
$ 30.99
Specifications
Attribute
Value
Search
CPU Architecture
Xtensa LX6
Wireless Capability
Wi-Fi
Wi‑Fi Standard
802.11B/G/N
Clock Speed
240
Description
Version Information:
CN warehouse: 1.4V
USA, UK warehouse: 1.3V

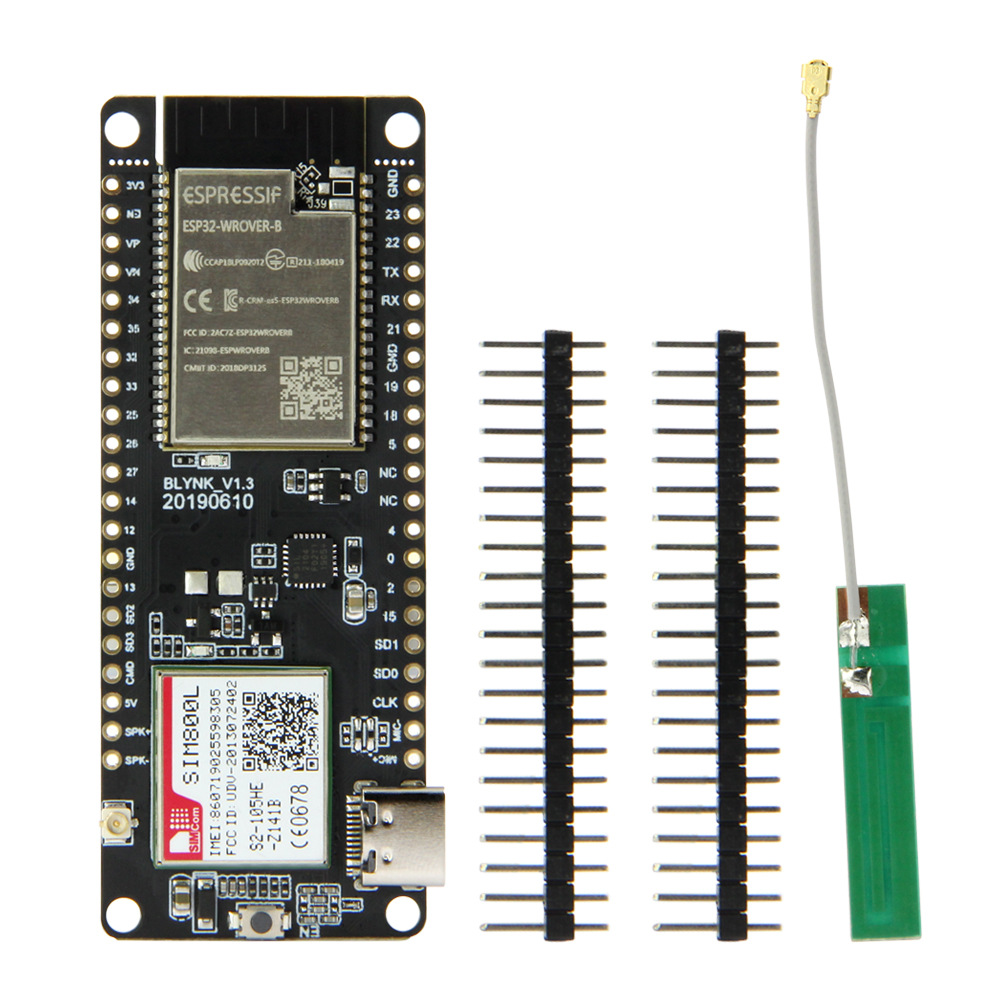

Package includes:
1 x T-Call
1 x Power cord
2 x Pin header
1 x GPRS antenna (9cm)
