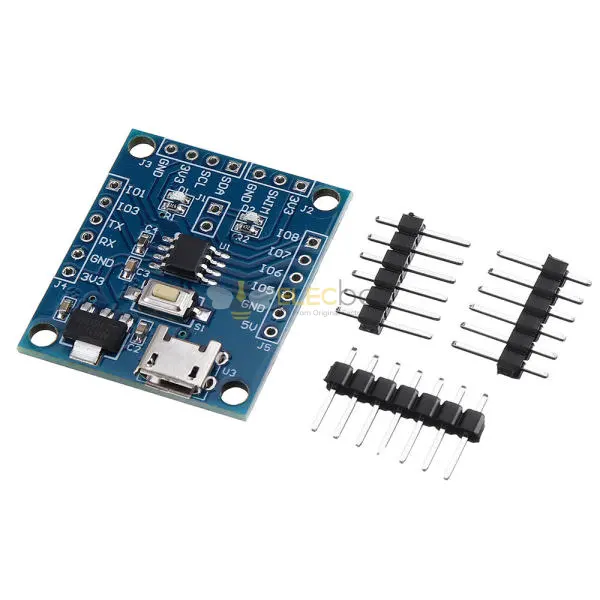

Elecbee STM8S001 J3 Development Board Small System Board Microcontroller Core Board STM

Name: Elecbee STM8S001 J3 Development Board Small System Board Microcontroller Core Board STM
Brand: Elecbee
SKU: EB0041894
Price: 9967 KRW
Availability: InStock

SKU: EB0041894

Favorites

Key Features

1. High-performance STM8 core, three-level instruction pipeline, main frequency up to 16M

2. 8K FLASH, 1K RAM, 128 BYTE real EEPROM

3. Three main clock sources can be selected: HSE, HSI, LSI

4. Low power modes: WAIT, ACTIVE-HALT, HALT

5. Can independently shut down the peripheral clock, power on & power off reset

6. Embedded 32 mid-range vectors, up to 5 external interrupts

7. Two 16-bit timers, one 8-bit basic timer

8. SPI single wire interface (up to 8M BIT / S), IIC (up to 400KB IT / S)

9. UART (SMART CARD, LRDA, LIN master mode)

10. 3-channel 10-bit ADC, single / continuous / buffered working mode

11. 5-channel universal IO port, embedded single-line download & simulation interface SWIM

Specifications

Show Similar Products >

Attribute

Value

MCU/SoC Model

STM8S001 Small

CPU Architecture

TIONIMAGE0

Memory

Arduino IDE

Show Similar Products >

Description

Package includes:

1 x Development Board

STM8S001-J3-Development-Board-Small-System-Board-Microcontroller-Core-Board-STM-1685264
