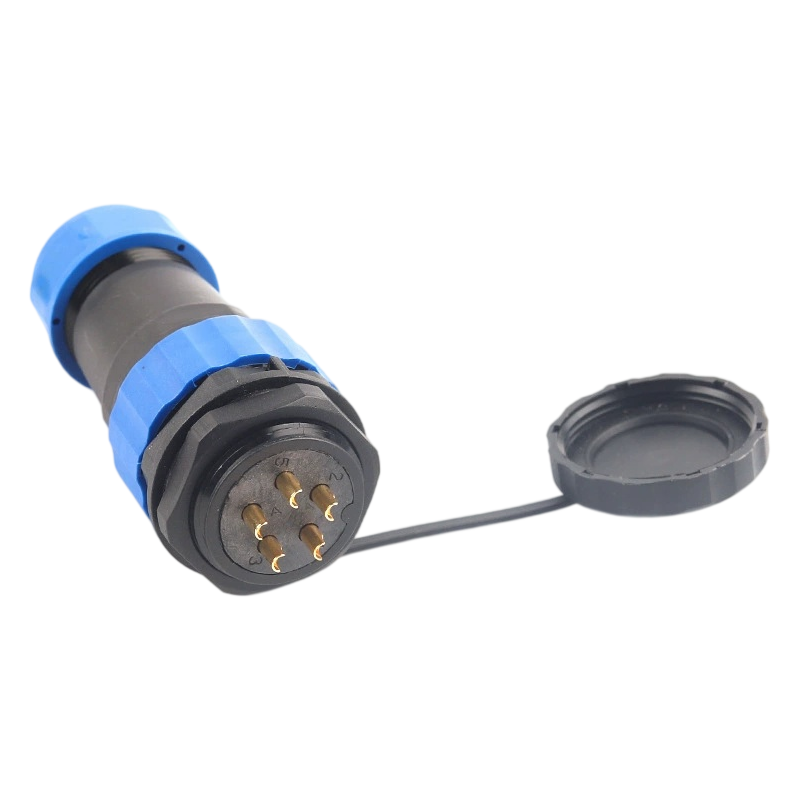

Elecbee SP29 Series Waterproof Aviation connector 5 pin Straight Solder Type Male Plug and Female Rear-nut mount Socket one pair
SKU: EB-410-3040
Favorites
Key Features
Features:
- SP29,5pin,Straight ,Plug,Socket,Rear-nut Mount,Panel mount
- With its IP68 rating, each product is excellent within harsh environments
- Easy quick connect and disconnect coupling
- High cost-effective with good quality
Show More
Specifications
Attribute
Value
Search
Connector Type
Plug, Receptacle
Mounting Type
Panel Mount
Mounting Feature
Bulkhead - Rear Side Nut
Termination
Solder
Contact Type
Male，Female Pin
Number of Positions
5 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-40℃~+85℃
Ingress Protection
IP68
Rated Current
25A
Rated Voltage
380V
Features
Waterproof
Connector Series
SP29
Color
Black, Blue
Fastening Type
Threaded
Orientation
Straight
Shell Material
PA66, PC
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS
Cable Diameter
12AWG
Shell Size
28
Insulation Color
Black
Description
SP29 Series Waterproof Connectors
SP29 Series is a large-size, high-performance IP68 waterproof circular connector designed for reliable power and signal connections in harsh and demanding environments. With up to 26 contacts and a rated current of 5–60A, it provides a rugged and dependable solution for heavy-duty industrial and outdoor applications.
- Large-Size Design: Built for high-power applications and demanding environments.
- IP68 Waterproof: Provides excellent protection against dust and water when mated.
- 2–26 Contacts: Supports flexible power and signal configurations.
- 5–60A Rated Current: Suitable for low- to high-power and heavy-duty applications.
- Gold-Plated Contacts: Ensures excellent conductivity, corrosion resistance, and long service life.
- Secure Threaded Coupling: Provides a stable and reliable connection under demanding conditions.
- Solder & Screw Termination: Offers flexible wiring and installation options.
- Custom Assembly: Cable assemblies can be customized according to specific requirements.
Applications: Outdoor testing and measuring equipment, telecommunications, motors, outdoor lighting, industrial equipment, marine systems, and other rugged outdoor applications.
