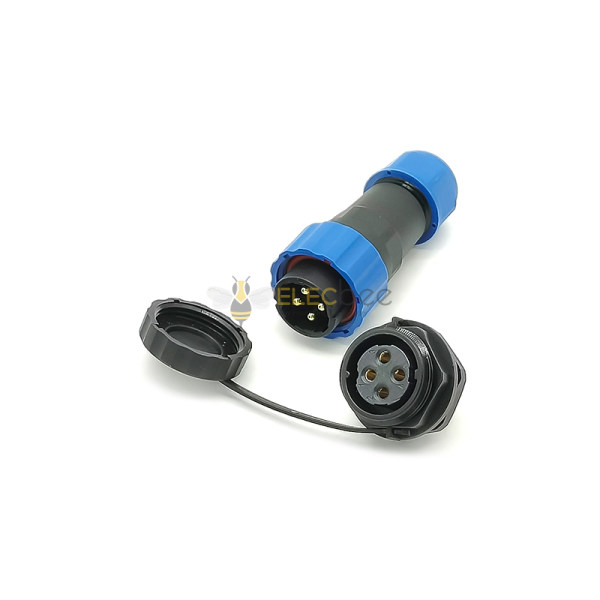

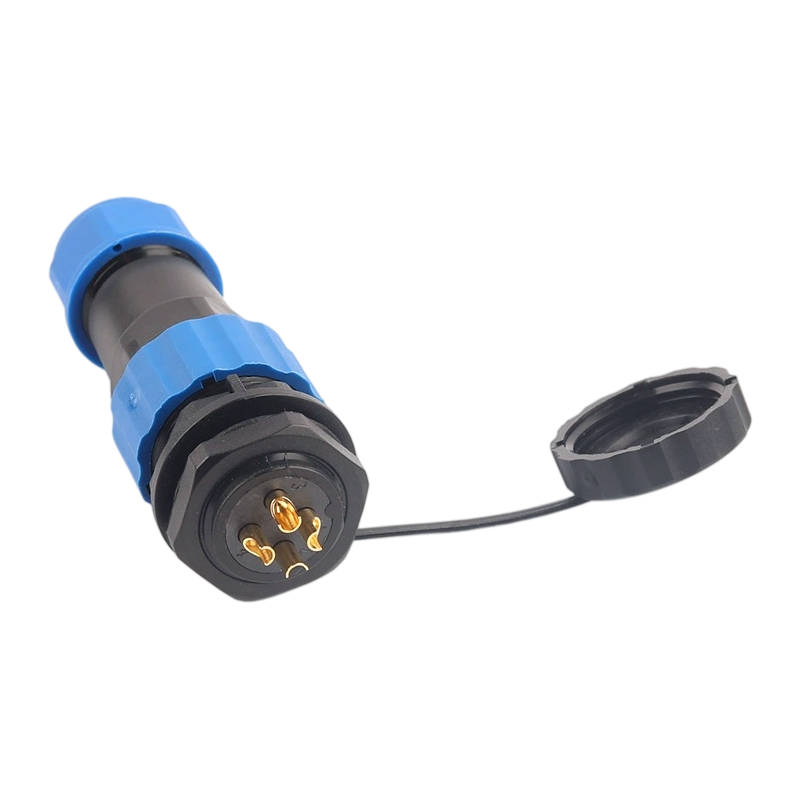

Elecbee SP21 Series Waterproof Aviation connector 4 pin Straight Solder Type Male Plug and Female Rear-nut mount Socket one pair

SP21 Series Waterproof Connectors

SP21 Series is a medium-sized IP68 waterproof circular connector designed for reliable power and signal connections in harsh outdoor and industrial environments. With 2–14 contacts, multiple mounting options, and a wide 5–25A current range, it provides flexible solutions for power and signal applications.

• Medium-Size Design: Combines reliable performance with practical installation space.
• IP68 Waterproof: Provides excellent protection against dust and water when mated.

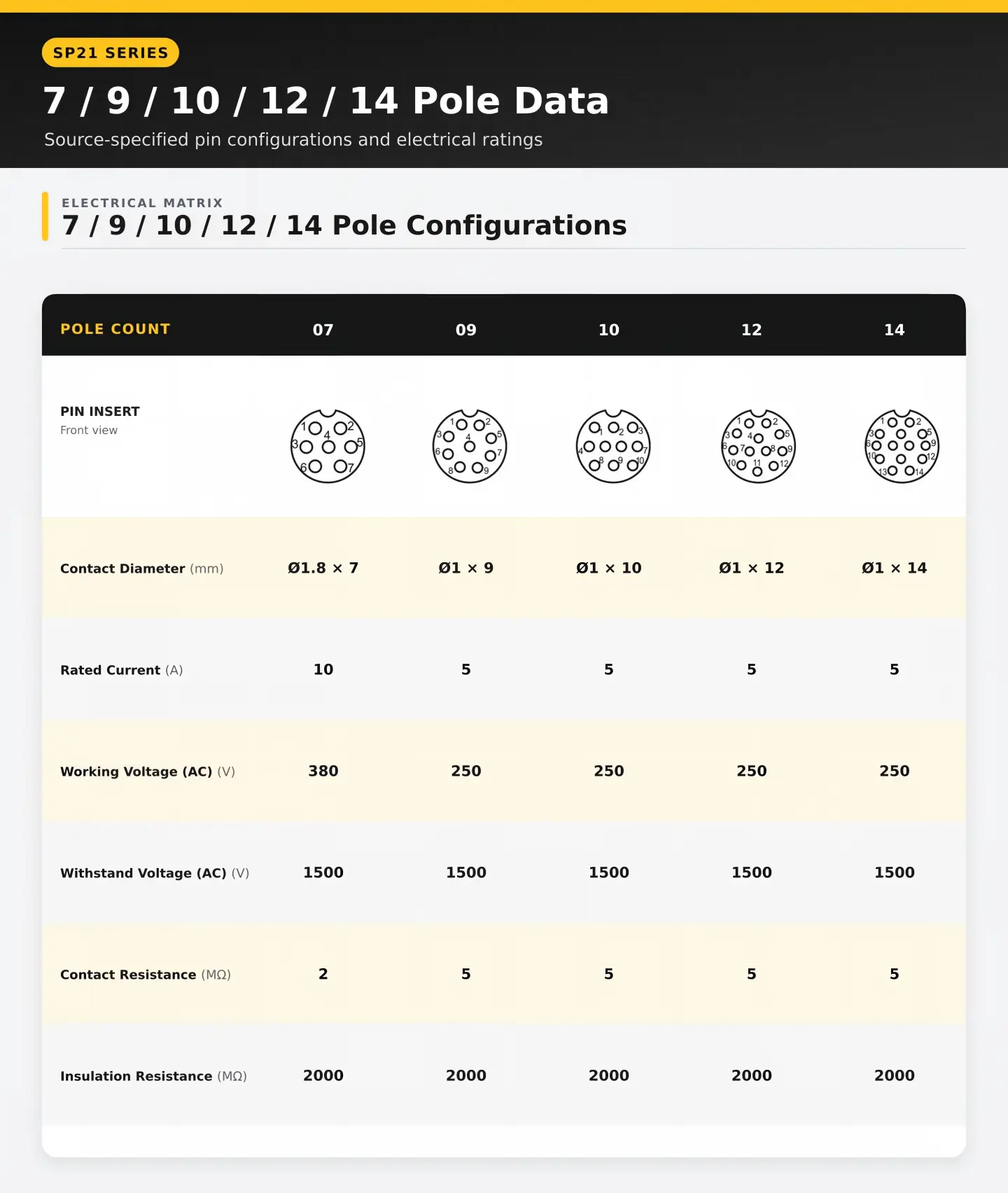

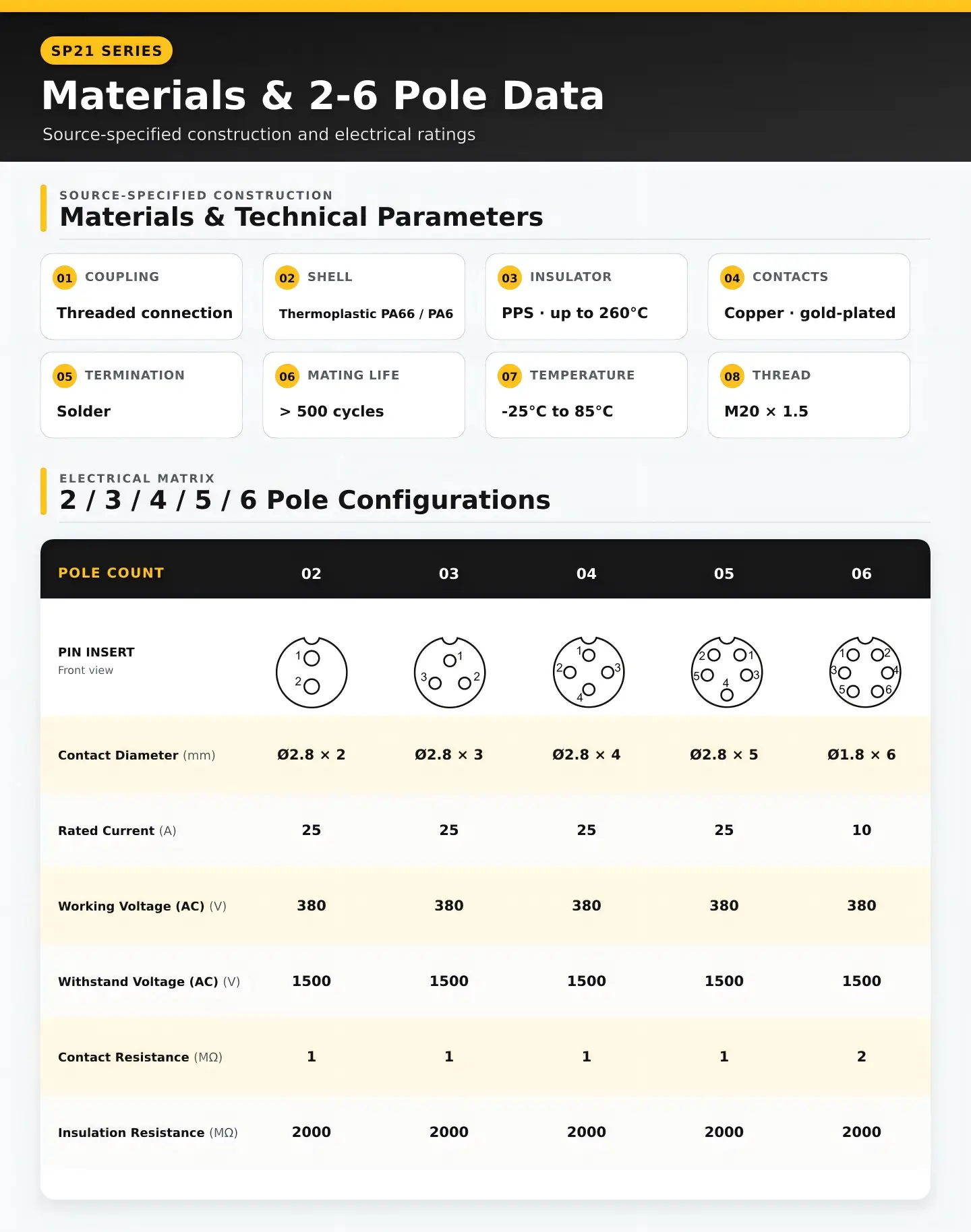

• 2–14 Contacts: Supports flexible power and signal configurations.
• 5–25A Rated Current: Suitable for low- to high-power circuit applications.
• Gold-Plated Contacts: Delivers excellent conductivity, corrosion resistance, and long service life.

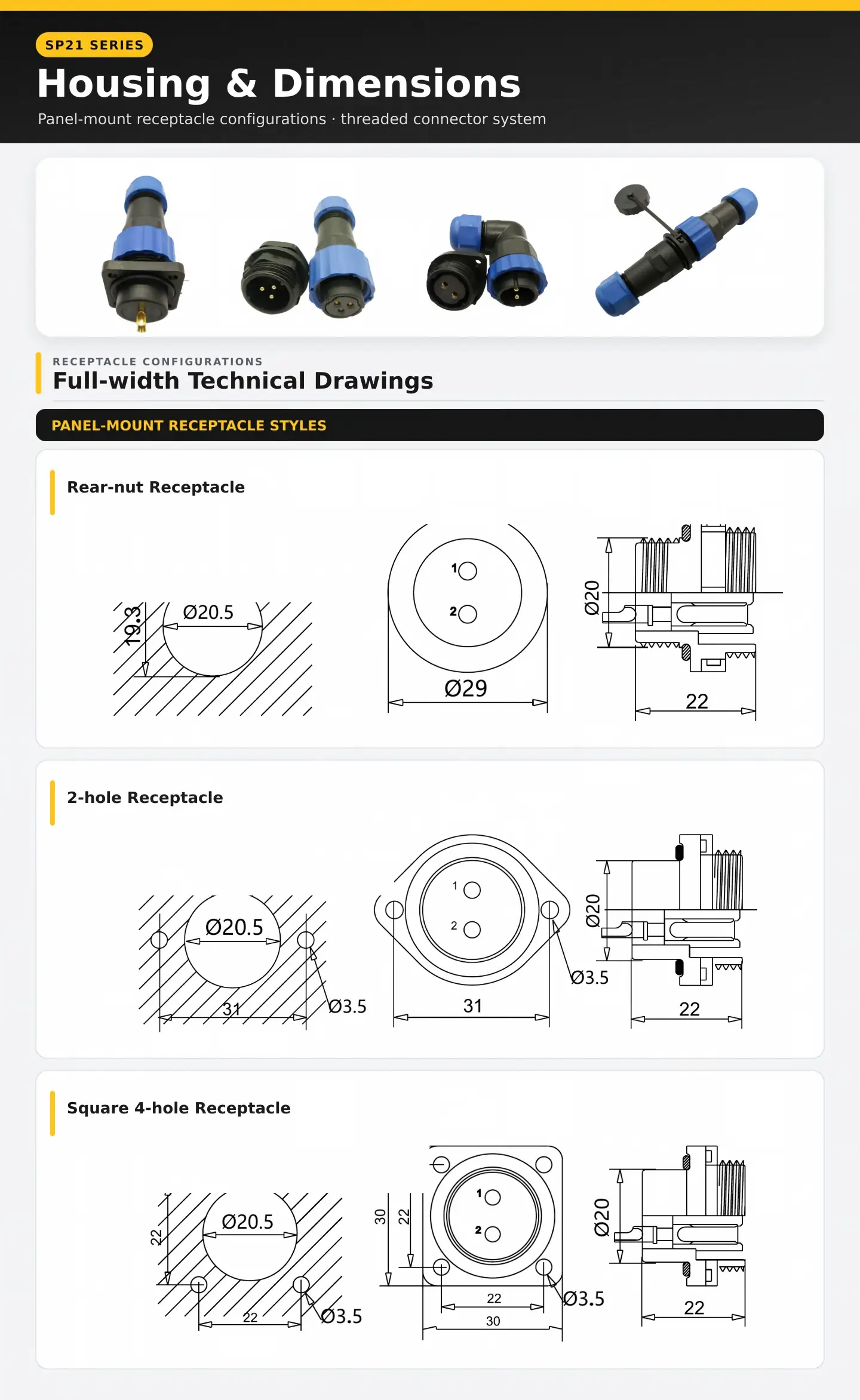

• Multiple Mounting Options: Available in panel-mount, cable-mount, and in-line configurations.
• Flexible Terminations: Supports solder, screw, and angled screw termination.

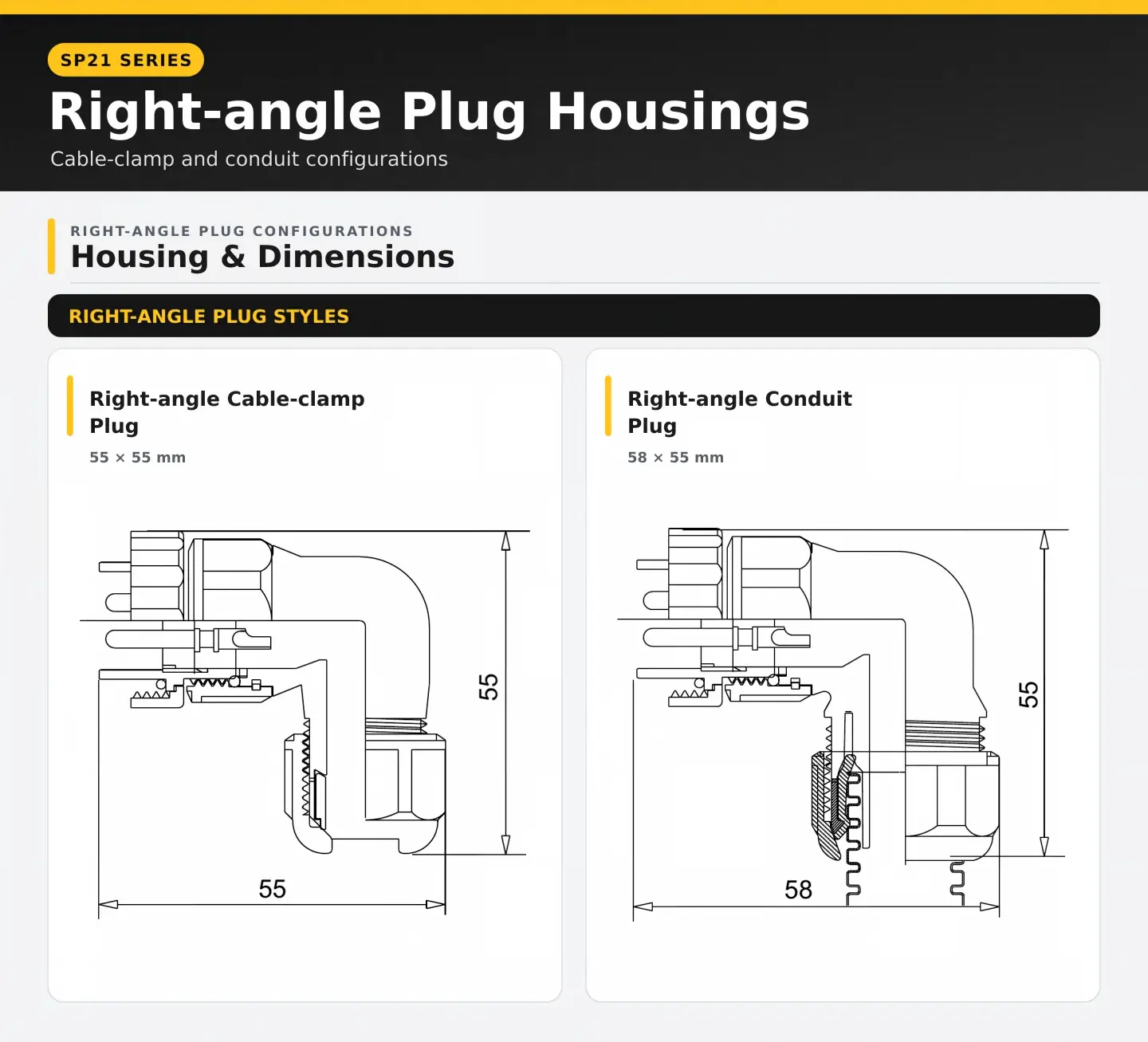

• 90° Cable-Mount Option: Ideal for cable routing in tight spaces and equipment control boxes.
• Secure Threaded Coupling: Ensures a stable and reliable connection in demanding environments.
• Custom Assembly: Cable assemblies can be customized according to pin count, cable OD, and length.

Applications: Outdoor testing and measuring equipment, renewable energy and solar systems, battery packs and chargers, motors and drives, sensors and instrumentation, LED lighting, agricultural equipment, industrial automation, and telecom cabinets.
