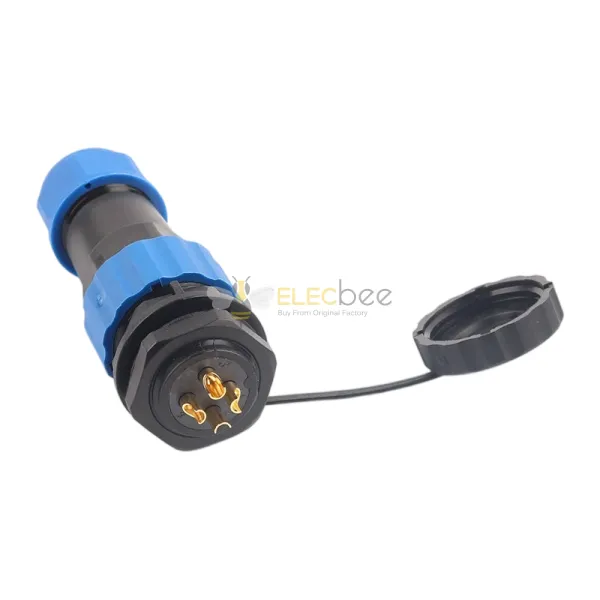

Elecbee SP21 Series Waterproof Aviation connector 4 pin Straight Solder Type Female Plug and Male Rear-nut mount Socket one pair
SKU: EB-410-2079
Favorites
Key Features
Features:
- SP21 Series Connector,Straight,Female Plug,Male Socket,Rear-nut Mount ,Solder Contact,4 Pin
- With its IP68 rating, each product is excellent within harsh environments
- Easy quick connect and disconnect coupling
- High cost-effective with good quality
Show More
Specifications
Number of Positions:
2 Pin3 Pin4 Pin5 Pin6 Pin7 Pin10 Pin12 Pin14 Pin9 PinSpecifications
Attribute
Value
Search
Connector Type
Plug, Receptacle
Mounting Type
Panel Mount
Mounting Feature
Bulkhead - Rear Side Nut
Termination
Solder
Contact Type
Male，Female Pin
Number of Positions
4 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-40℃~+85℃
Ingress Protection
IP68
Rated Current
25A
Rated Voltage
380V
Features
Waterproof
Connector Series
SP21
Color
Black, Blue
Fastening Type
Threaded
Orientation
Straight
Shell Material
PA66, PC
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS
Cable Diameter
12AWG
Shell Size
20
Insulation Color
Black
Description
