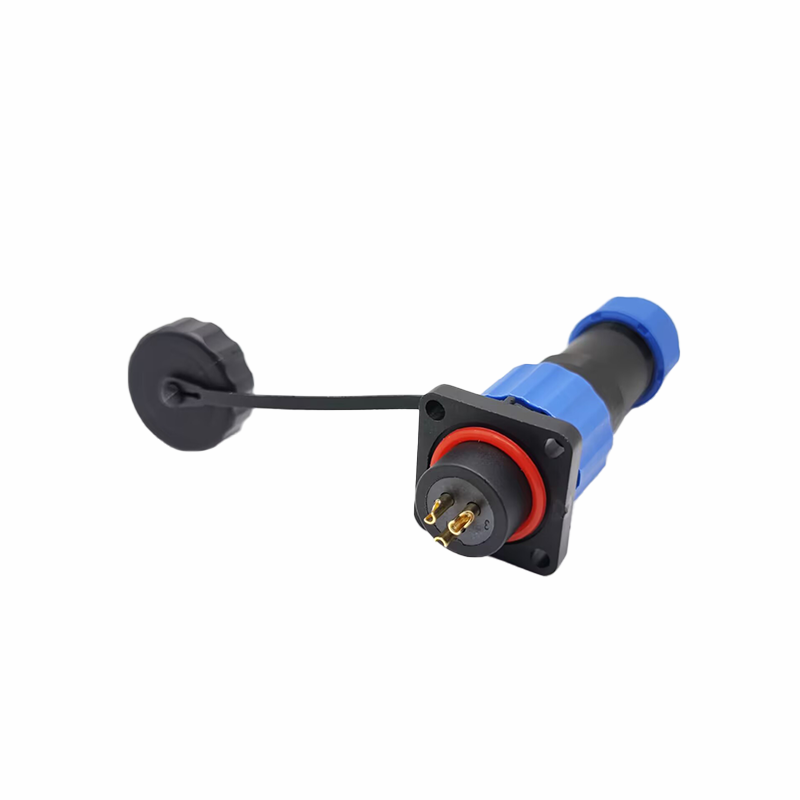

Elecbee SP21 Series Waterproof Aviation connector 3 pin Straight Solder Type Male Plug and Female 4-hole flange Socket one pair

SKU: EB-410-2118
Favorites
Key Features
  • Waterproof design for reliable outdoor use.
  • 3-pin straight solder type for easy installation.
  • Includes male plug and female socket pair.
  • 4-hole flange for secure and stable mounting.
  • Multi-contact compatible for flexible configurations.
Show More
Attribute
Value
Connector Type
Plug, Receptacle
Mounting Type
Panel Mount
Termination
Solder
Contact Type
Male,Female Pin
Number of Positions
3 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-40℃~+85℃
Ingress Protection
IP68
Rated Current
30A
Rated Voltage
500VAC
Features
Waterproof
Connector Series
SP21
Color
Black, Blue
Fastening Type
Threaded
Orientation
Straight
Shell Material
PA66, PC
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS
Cable Diameter
12AWG
Shell Size
21
Insulation Color
Black
