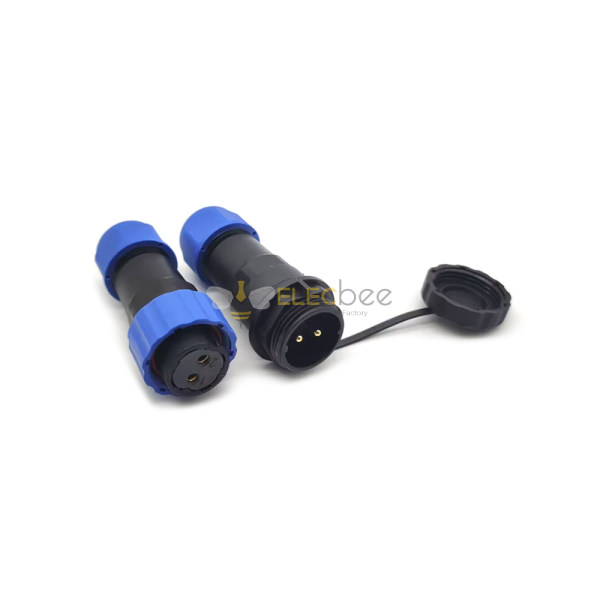

Elecbee SP21 Series Waterproof Aviation connector 2 Pin Straight Solder Type Female Plug and Male In-line cable Socket one pair
SKU: EB-410-2059
Favorites
Key Features
Features:
- SP21 Series Connector,Straight,In-Line Type,Male Socket, Female Plug,Solder Contact,2 Pin
- With its IP68 rating, each product is excellent within harsh environments
- Easy quick connect and disconnect coupling
- High cost-effective with good quality
Show More
Specifications
Attribute
Value
Search
Connector Type
Plug, Receptacle
Mounting Type
Cable Type
Termination
Solder
Contact Type
Male，Female Pin
Number of Positions
2 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-40℃~+85℃
Ingress Protection
IP68
Rated Current
30A
Rated Voltage
500VAC
Features
Waterproof
Connector Series
SP21
Color
Black, Blue
Fastening Type
Threaded
Orientation
Straight
Shell Material
PA66, PC
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS
Cable Diameter
12AWG
Shell Size
21
Insulation Color
Black
