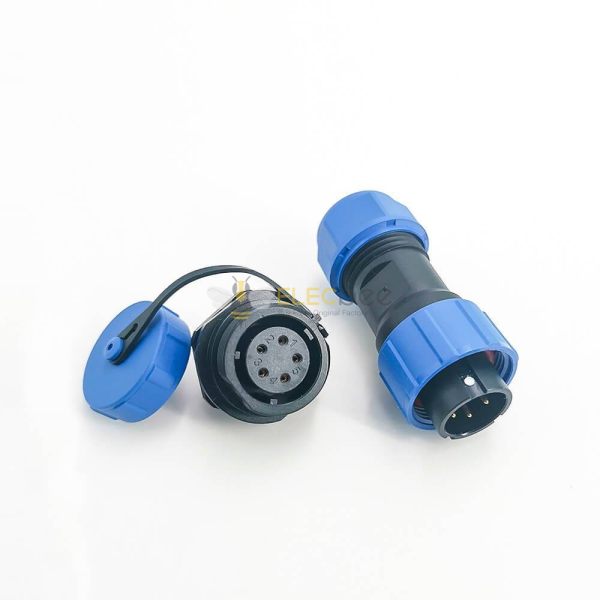

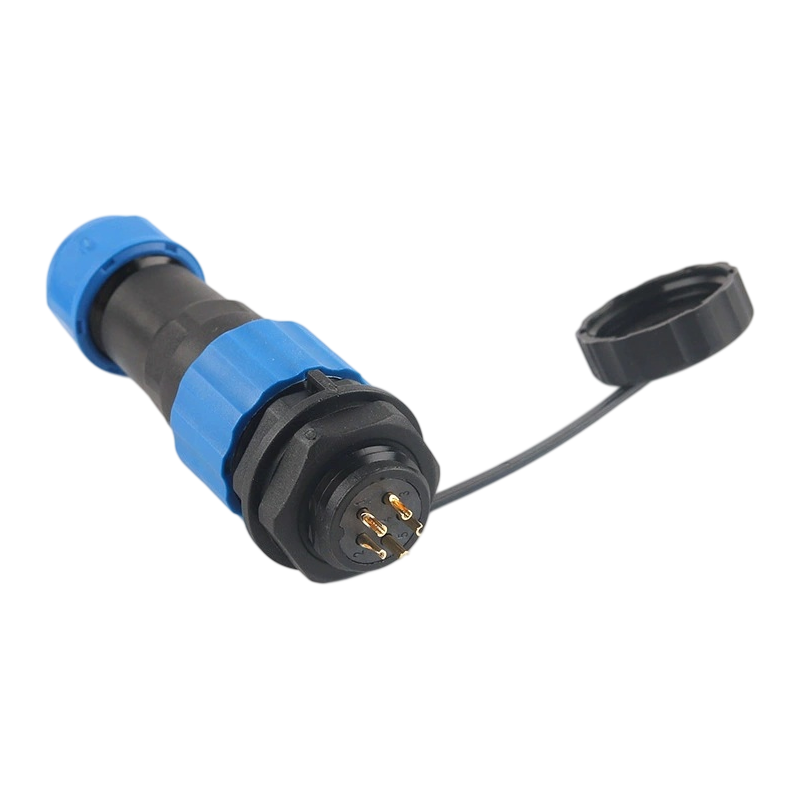

Elecbee SP17 Series Waterproof Aviation connector 5 pin Straight Solder Type Male Plug and Female Rear-nut mount Socket one pair
SKU: EB-410-1052
Favorites
Key Features
Features:
- sp17-ip68-series-5-pin-male-plug-female-circular-socket-aviation-connector
- With its IP68 rating, each product is excellent within harsh environments
- Easy quick connect and disconnect coupling
- High cost-effective with good quality
Show More
Specifications
Attribute
Value
Search
Connector Type
Plug, Receptacle
Mounting Type
Panel Mount
Mounting Feature

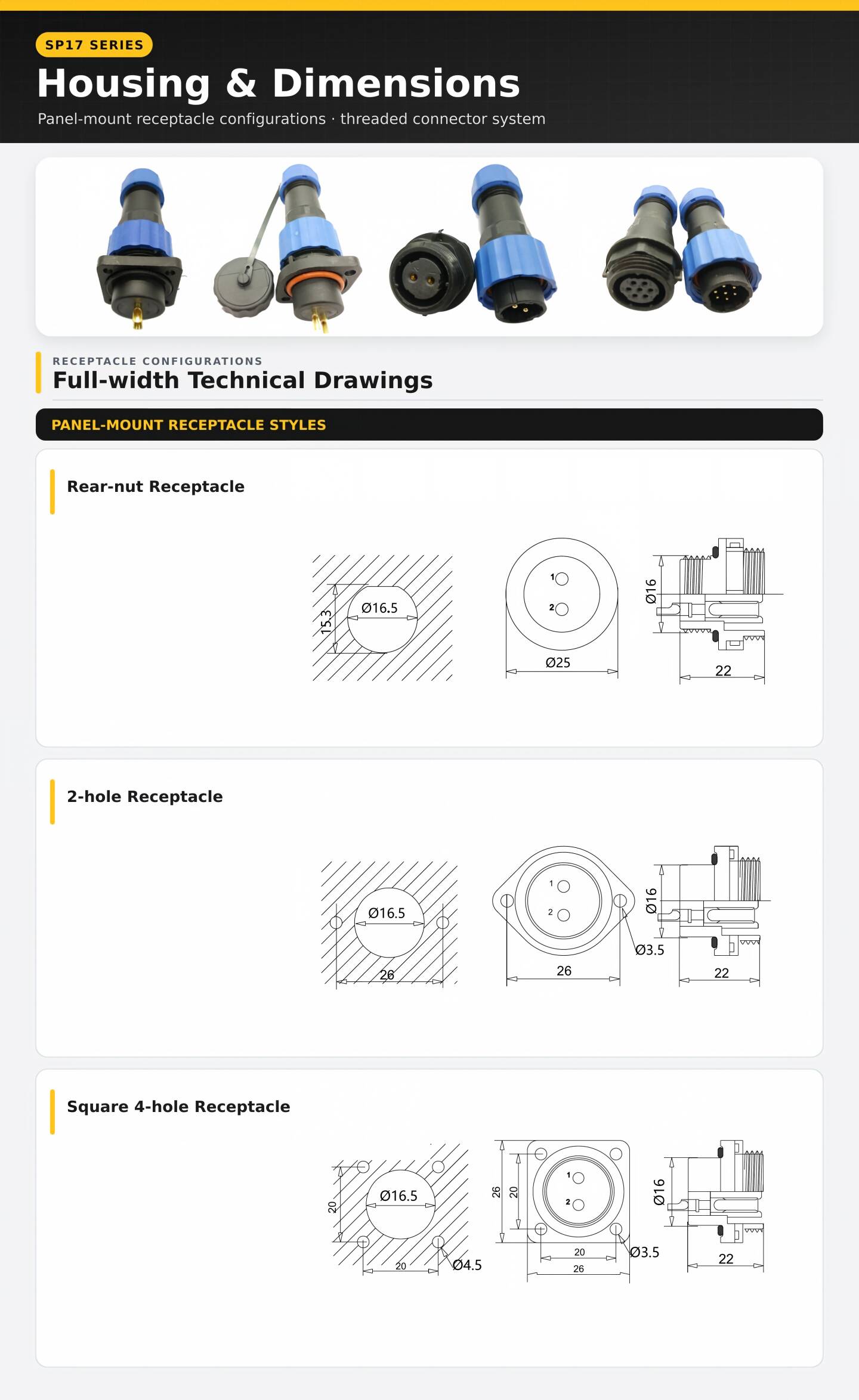

Bulkhead - Rear Side Nut
Termination
Solder
Contact Type
Male，Female Pin
Number of Positions
5 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-40℃~+85℃
Ingress Protection
IP68
Rated Current
5A
Rated Voltage
250V
Features
Waterproof
Connector Series
SP17
Color
Black, Blue
Fastening Type
Threaded
Orientation
Straight
Shell Material
PA66, PC
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS
Cable Diameter
18AWG
Shell Size
16
Insulation Color
Black
Description
SP17 Series Waterproof Connectors
SP17 Series is a medium-sized IP68 waterproof circular connector designed for reliable power and signal transmission in harsh environments. With 2–9 contacts, gold-plated contacts, threaded coupling, and UL certification, it provides secure and durable connections for demanding applications.
- Medium-Size Design: Balances compactness, durability, and reliable performance.
- IP68 Waterproof: Provides excellent protection against dust and water when mated.

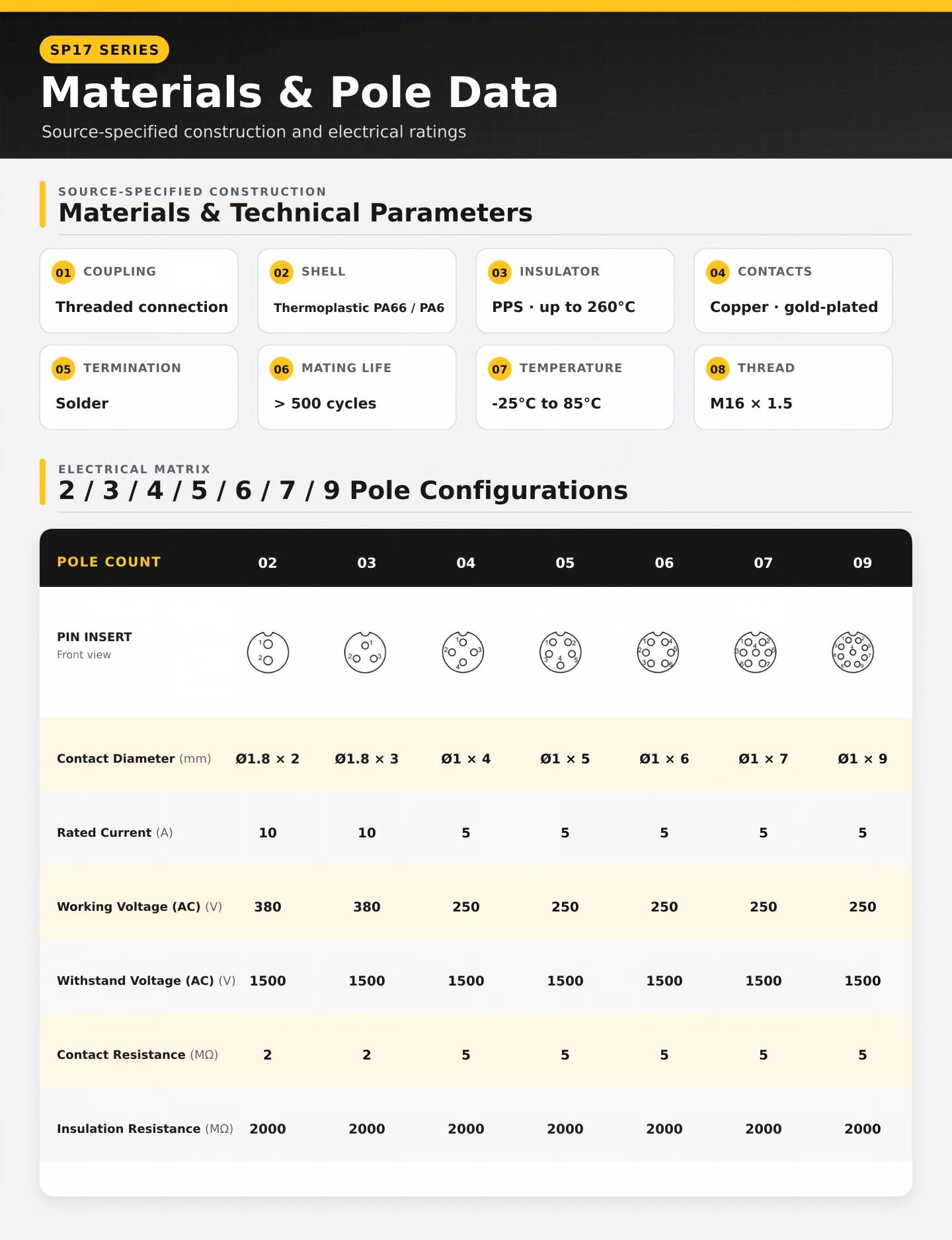

- 2–9 Contacts: Flexible contact configurations for various connection requirements.
- 5–10A Rated Current: Suitable for low- and medium-power applications.
- Gold-Plated Contacts: Ensures excellent conductivity, corrosion resistance, and durability.
- Solder & Screw Termination: Supports flexible wiring and installation options.
- Secure Threaded Coupling: Provides a stable connection in demanding environments.
- Custom Assembly: Cable assemblies can be customized to specific requirements.
Applications: Outdoor testing and measuring equipment, industrial automation, communication equipment, lighting systems, and other harsh-environment applications.
