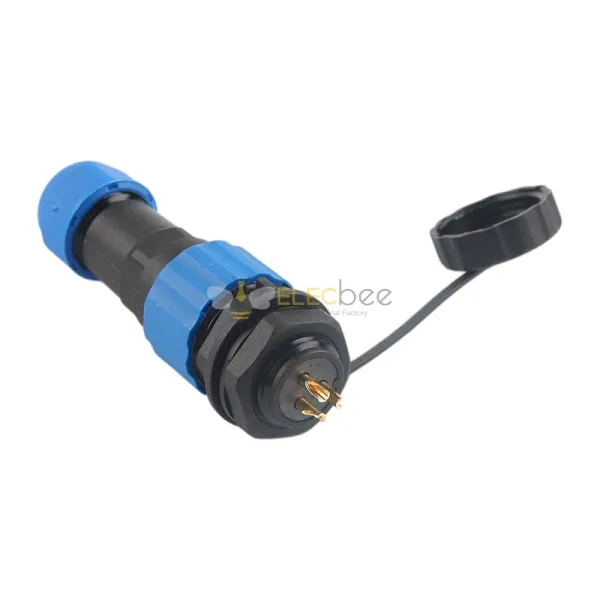

Elecbee SP17 In-line 3-Pin Circular Aviation Connector Set, IP68 Waterproof Plug and Socket, 10A 380V

SKU: EB-410-1044
Favorites

Key Features

High-Performance Electrical Specs: 3-pin configuration supporting 10A rated current and 380V operating voltage for reliable power transmission.

IP68 Waterproof Rating: Highest dustproof and waterproof protection levels, engineered for long-term underwater or outdoor deployment.

In-line Connectivity: Cable-to-cable (In-line) design enables quick connection and disconnection, simplifying field installation and maintenance.

Precision Contact Design: Features three $1.8mm$ diameter contacts with low 2 mΩ resistance and 1500V withstand voltage for signal integrity.

Industrial Grade Durability: Constructed with UV-resistant and corrosion-resistant materials for stable operation in harsh environmental conditions.

High Insulation Reliability: Delivers 2000 mΩ insulation resistance, ensuring safety in solar systems, motors, and outdoor lighting.

Show More
Attribute
Value
Connector Type
Plug, Receptacle
Mounting Type
Panel Mount
Termination
Solder
Contact Type
Male,Female Pin
Number of Positions
3 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-40℃~+85℃
Ingress Protection
IP68
Rated Current
10A
Rated Voltage
500VAC
Features
Waterproof
Connector Series
SP17
Color
Black, Blue
Fastening Type
Threaded
Orientation
Straight
Shell Material
PA66, PC
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS
Cable Diameter
14AWG
Shell Size
17
Insulation Color
Black
Description
