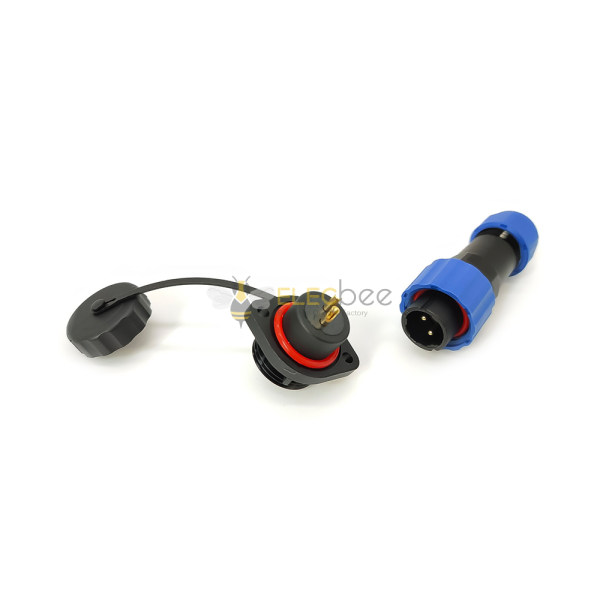

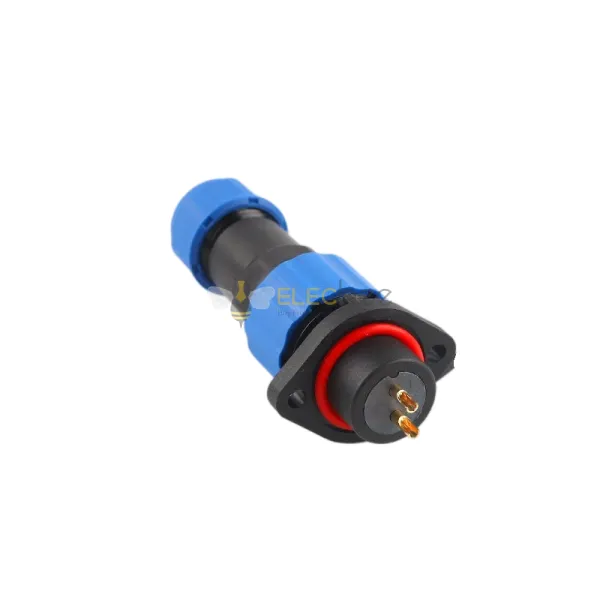

Elecbee SP17 Series Waterproof Aviation connector 2 Pin Straight Solder Type Male Plug and Female 2-hole flange Socket one pair

SKU: EB-410-1061
Favorites
Key Features

Features:

  • SP17 Series,Straight,Male Plug,Female Socket,2 Hole Flange, Panel Mount,Solder Contact,2 Pin
  • With its IP68 rating, each product is excellent within harsh environments
  • Easy quick connect and disconnect coupling
  • High cost-effective with good quality
Show More
Attribute
Value
Connector Type
Plug, Receptacle
Mounting Type
Panel Mount
Termination
Solder
Contact Type
Male,Female Pin
Number of Positions
2 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-40℃~+85℃
Ingress Protection
IP68
Rated Current
10A
Rated Voltage
500VAC
Features
Waterproof
Connector Series
SP17
Color
Black, Blue
Fastening Type
Threaded
Orientation
Straight
Shell Material
PA66, PC
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS
Cable Diameter
14AWG
Shell Size
17
Insulation Color
Black
Description
