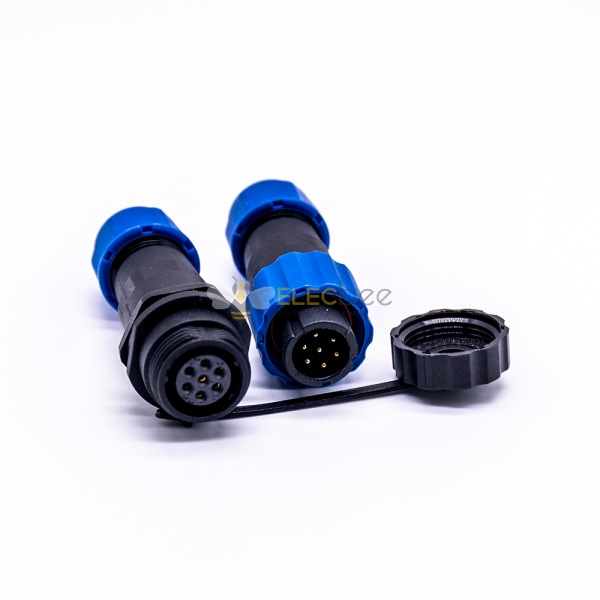

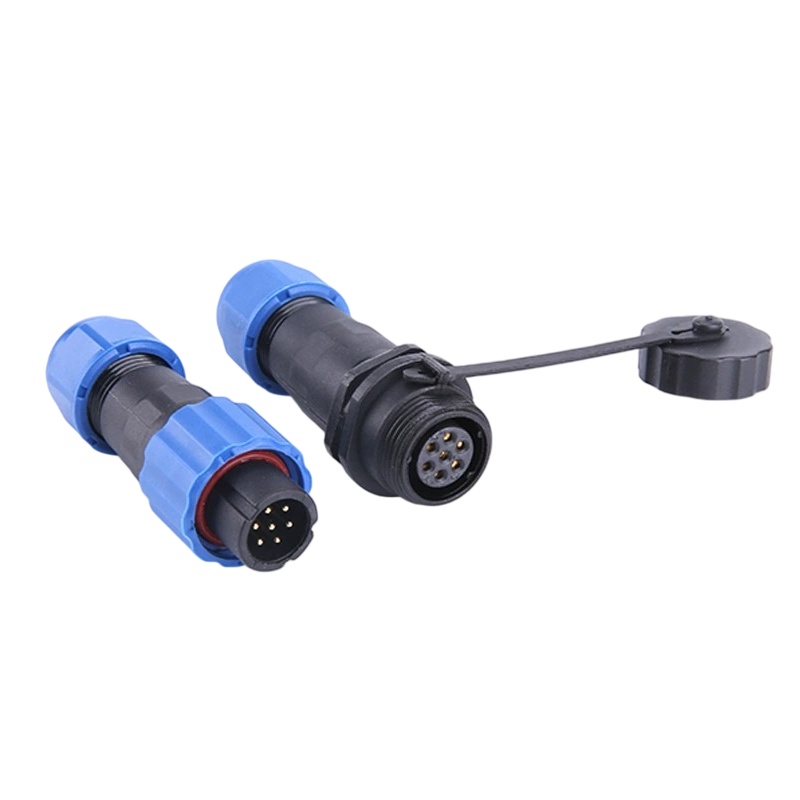

Elecbee SP13 Series Waterproof Aviation connector 7 pin Straight Solder Type Male Plug and Female In-line cable Socket one pair
SKU: EB-410-0035
Favorites
Key Features
Features:
- SP13 Series Connector,straight,In-Line Type,Female socket,Male Plug,Solder Contact,7 pin
- With its IP68 rating, each product is excellent within harsh environments
- Easy quick connect and disconnect coupling
- High cost-effective with good quality
Show More

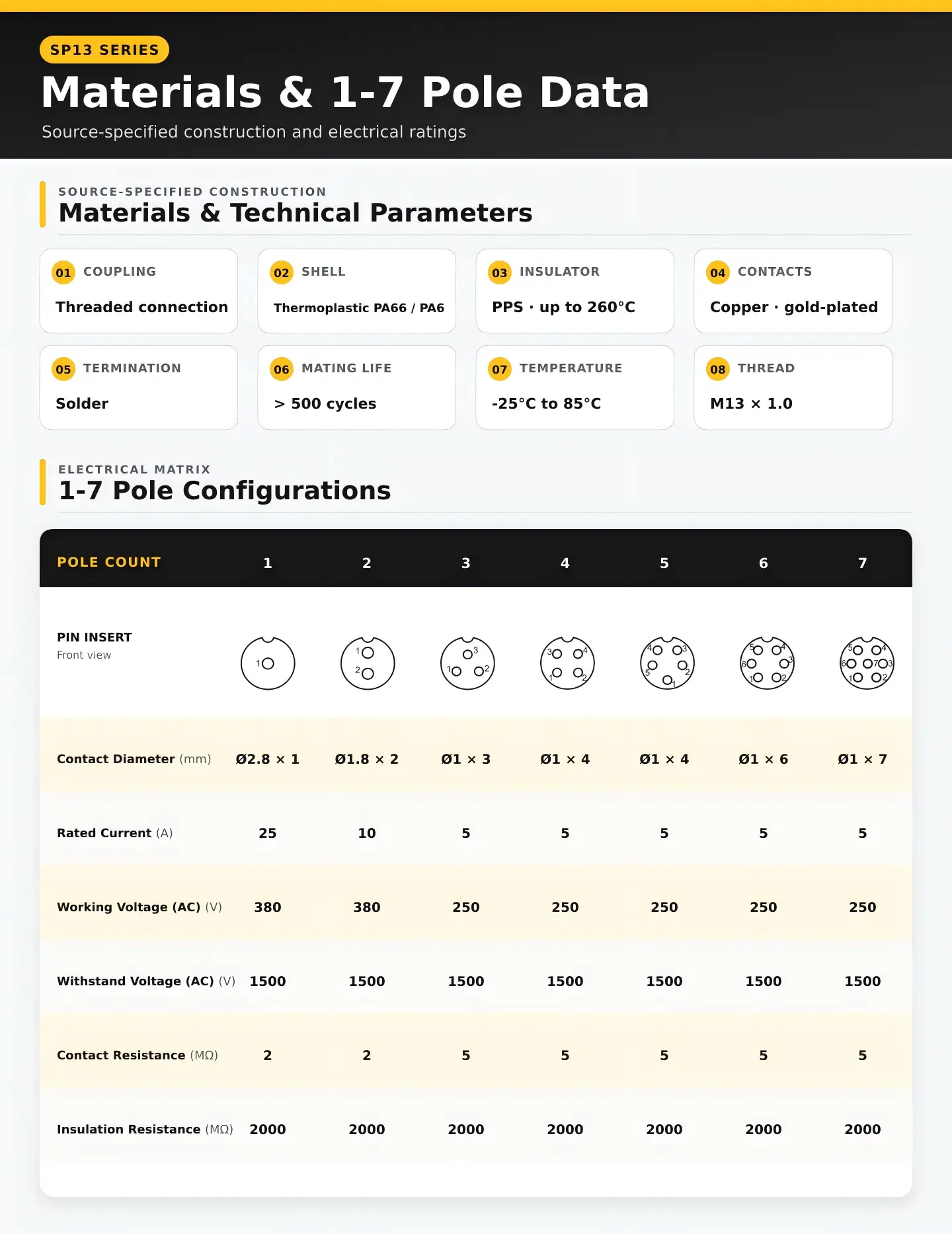

Specifications
Attribute
Value
Search
Connector Type
Plug, Receptacle
Mounting Type
Cable Type
Termination
Solder
Contact Type
Male，Female Pin
Number of Positions
7 Pin
Material Flammability Rating
UL94 V-0
Operating Temperature
-40℃~+85℃
Ingress Protection
IP68
Rated Current
5A
Rated Voltage
250V
Features
Waterproof
Connector Series
SP13
Color
Black, Blue
Fastening Type
Threaded
Orientation
Straight
Shell Material
PA66, PC
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS
Cable Diameter
18AWG
Shell Size
13
Insulation Color
Black
Description

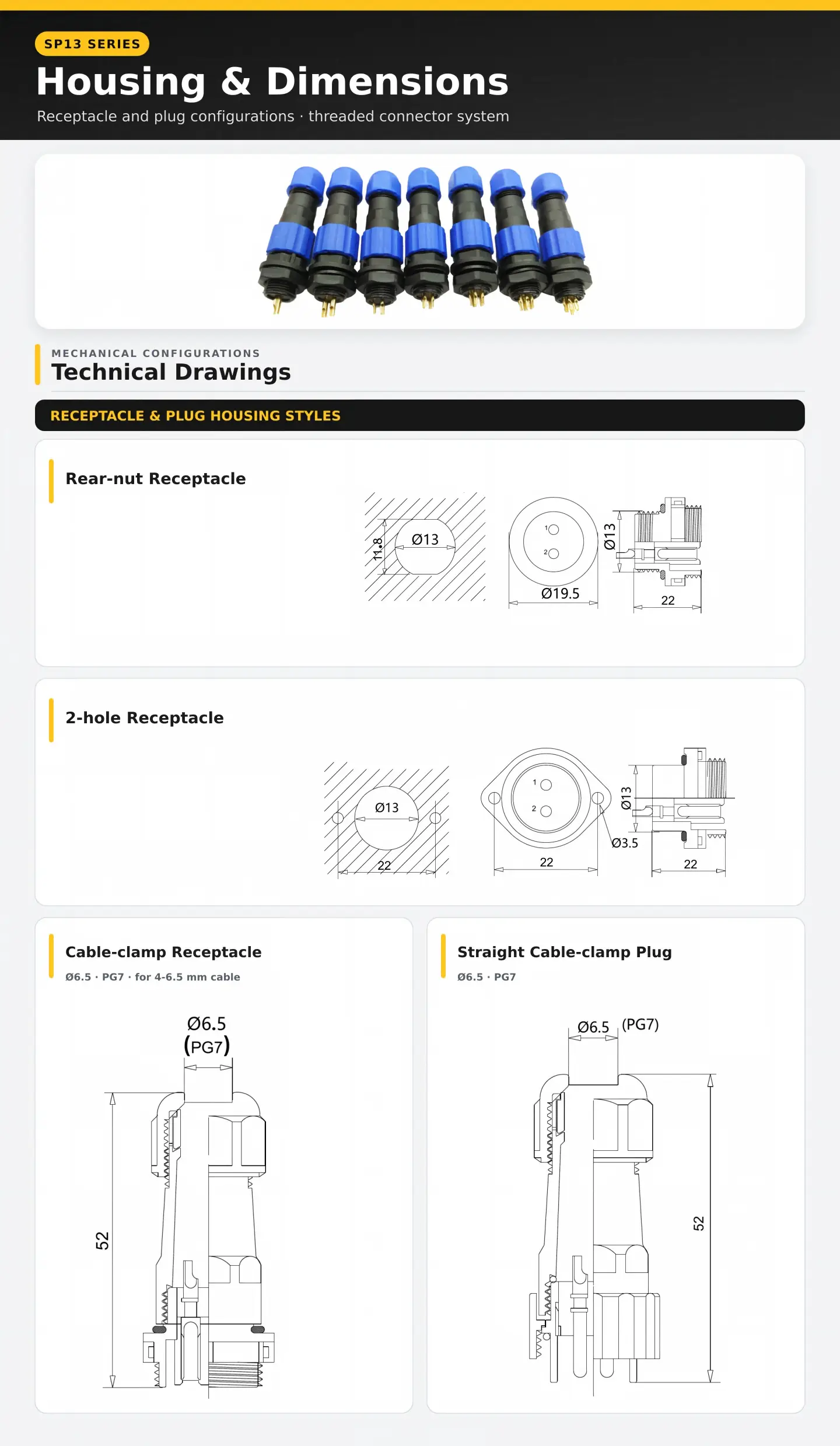

SP13 Series Waterproof Connectors
SP13 Series is a compact IP68 waterproof connector designed for space-limited applications that require reliable protection against dust and water. Available in 1–9 contacts, with panel mount, cable mount, and in-line options, it supports solder and horizontal screw termination for flexible installation.
- Compact Design: Space-saving solution for tight installation environments.
- IP68 Waterproof: Excellent protection against dust and water when mated.
- 1–9 Contacts: Flexible contact configurations for different connection requirements.
- 3–13A Rated Current: Suitable for low- and medium-power applications.
- Gold-Plated Contacts: Provides reliable conductivity and corrosion resistance.
- Secure Threaded Coupling: Ensures a stable and reliable connection.
- Custom Assembly: Cable assemblies can be customized to meet specific requirements.
Applications: Outdoor testing equipment, measuring instruments, lighting, industrial automation, communication equipment, and other space-constrained applications.
