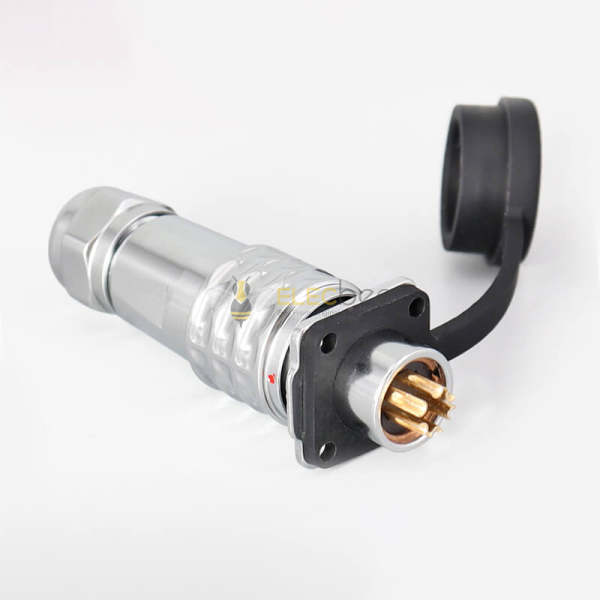

Elecbee SF12-6 Pin Plug+Socket Waterproof 4-Hole Flange Metal Aviation Quick Push-Pull Circular Industrial
SKU: EB-037-0013
Favorites
Key Features
Feature
- Sloder, Push-pull quick, Male plug , Female socket, 4-hole flange, Waterproof, 6pin
- Waterproof，IP67
- Low frequency
- Easy quick connect and disconnect coupling;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Main Application :
- Applications: used in aviation, navigation, computers, communications, anti-theft devices, transportation, machinery and electronics, etc.
Show More
Datasheet
In-Stock
Qty.
1
Unit Price
$ 15.67$ 18.43
Ext. Price
$ 15.67$ 18.43
$ 15.67$ 18.43
Specifications
Attribute
Value
Search
Connector Type
Plug, Receptacle
Mounting Type
Panel Mount
Termination
Solder
Contact Type
Male，Female Pin
Shell Finish
Chrome Plated
Number of Positions
6 Pin
Operating Temperature
-40℃~+85℃
Ingress Protection
IP67
Rated Current
5A
Rated Voltage
125VAC
Features
Waterproof
Connector Series
SF12
Color
Silver
Fastening Type
Push-on
Orientation
Straight
Shell Material
Brass
Contact Material
Brass
Contact Finish
Gold Plated
Insulating Materials
PPS
Cable Diameter
18AWG
Shell Size
12
Insulation Color
Black
Key
A Code
Description
Connection method： Push-pull Quick

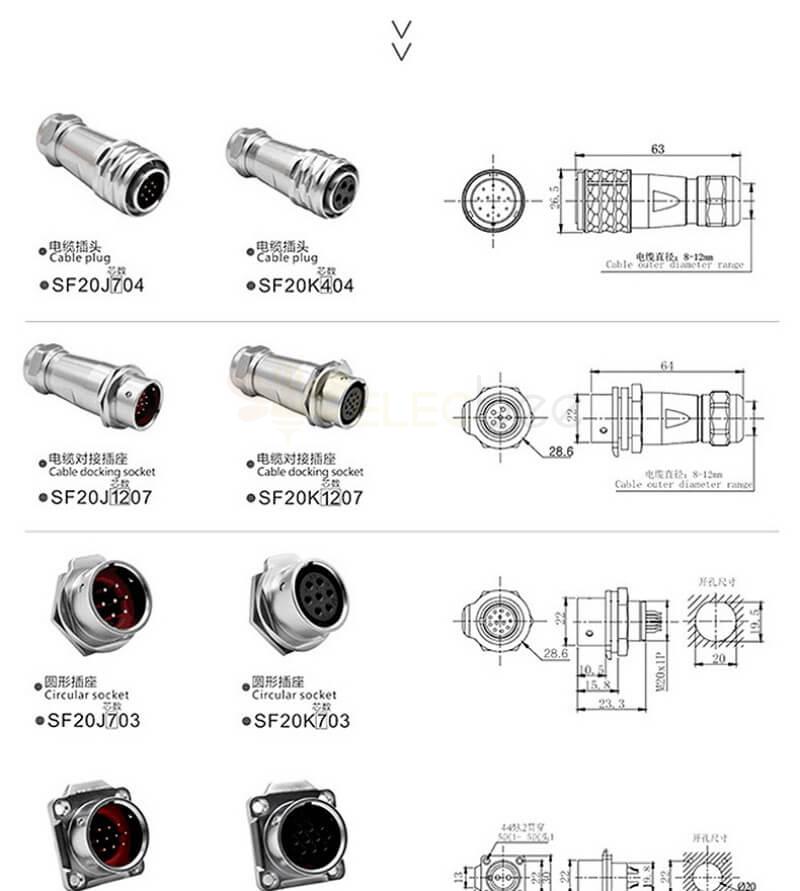

SF6 options: 2,3,4,5 pin
SF12 options:2,3,4,5,6,7,9 Pin
SF20 option：2,3,4,5,6,7,9,10,12 pin
Electrical Characteristics
- Rated current:25A (2,3,4,5pin）
- Rated current:15A (6pin）
- Rated current:10A (7pin）
- Rated current:5A (8,9,10,12pin）
- Rated voltage:500V
- Ø1.00mm Center Contact Resistance≤5 mΩ(Milliohms max.)
- Ø2.5mm Center Contact Resistance≤1 mΩ(Milliohms max.)
- Ø1.5mm Center Contact Resistance≤2.5 mΩ(Milliohms max)
- Ø2.0mm Center Contact Resistance≤2.5 mΩ(Milliohms max)
- Insultation Resistance ≧2000 mΩ (Milliohms min.)
Mechanical Characteristics
- Coupling: Push-pull Quick
- Mating Durability: ≧500 cycles
Environmental Characteristics
- Environmental Characteristics:-45℃~+85℃
Material:
| Part | Material | Finish |
| Body | Copper chrome plating | Copper chrome plating |
| Center Contact Pin | Copper gold plating | Copper gold plating |
| Insulator | PPS | Black |
