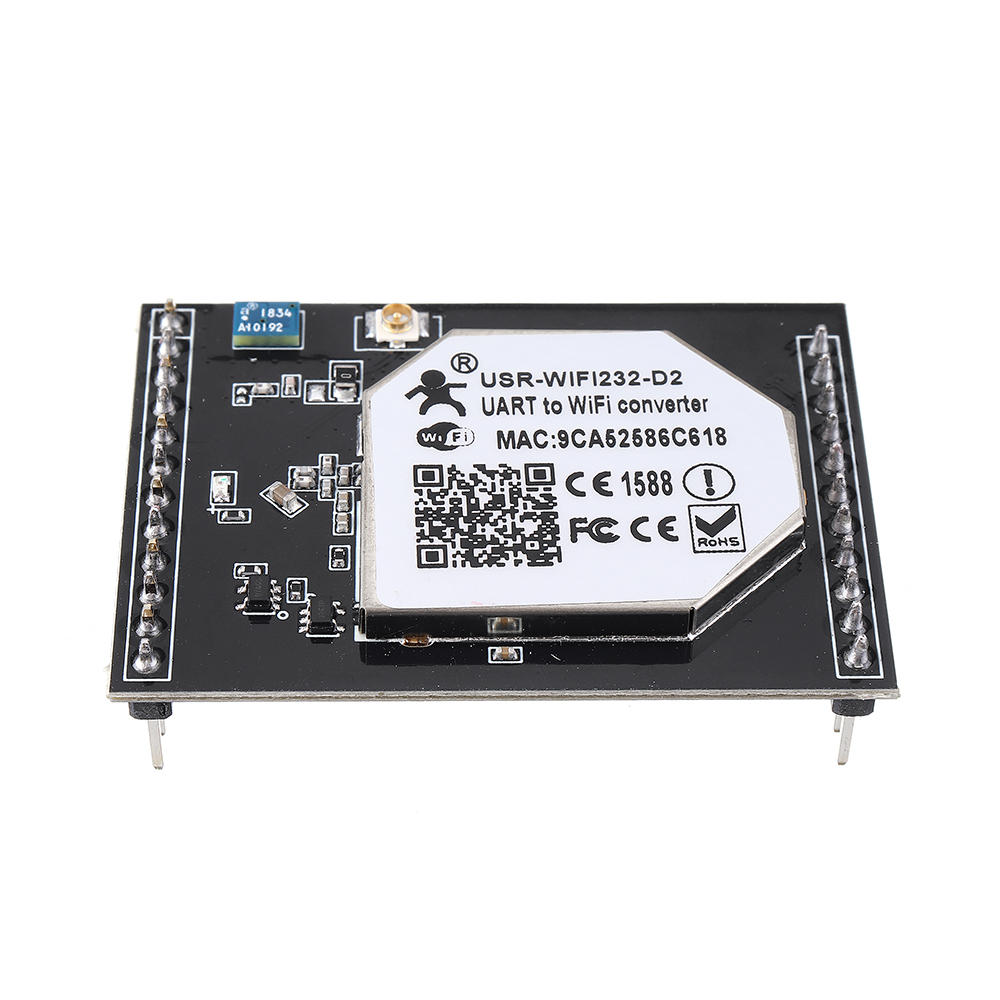

Elecbee Serial to WiFi Module Embedded Serial-to-Ethernet Dual Port Wireless WiFi 232 D2

SKU: EB0045260

Favorites

Key Features

Item	Index	Description
Wireless parameter	Standard certification	FCC/CE/ROHS/TELEC
	Wireless standard	802.11 b/g/n
	Frequency Range	2.412GHZ-2.484GHZ
	Frequency Range	802.11b: +20dBm (Max.)
	Transmit power	B02.11g: +18dBm (Max.)
		802.11n: +15dBm (Max.)
		B02.11b:-89 dBm
	Receiving sensitivity	B02.11g:-81dBm
	Receiving sensitivity	802.11n:-71dBm
	Antenna	Built-in antenna
	Antenna	UART: 300bps-460800bps
Hardware parameter	Data interface	Ethernet: 100Mbps
	Data interface	GPIOs
	Operating Voltage	3.3V(+/-5%)
	Working current	170mA ~300mA
	Operating temperature	-40°C- 85°C
	Storage temperature	-40°C- 125°C
	Size	32mm x 45mm x8mm
Software parameter	Wireless network type	Station/AP mode
	Security Mechanism	WEP/WPA-PSK/WPA2-PSK
	Encryption type	WEP64/WEP128/TKIP/AES
	Operating mode	Transparent transmission mode, serial command mode
	Setting command	AT+ command structure
	Network protocol	TCP/UDP/ARP/ICMP/DHCP/DNS/HTTP
	Maximum number of TCP connections	32
	User configuration	Web server + AT command configuration

Specifications

Show Similar Products >

Attribute

Value

Wireless Capability

Wi-Fi

Wi‑Fi Standard

802.11B/G/N

Model

Ethernet

Support

Show Similar Products >

Description

1 x Module

Serial-to-WiFi-Module-Embedded-Serial-to-Ethernet-Dual-Port-Wireless-WiFi-232-D2-1474309
