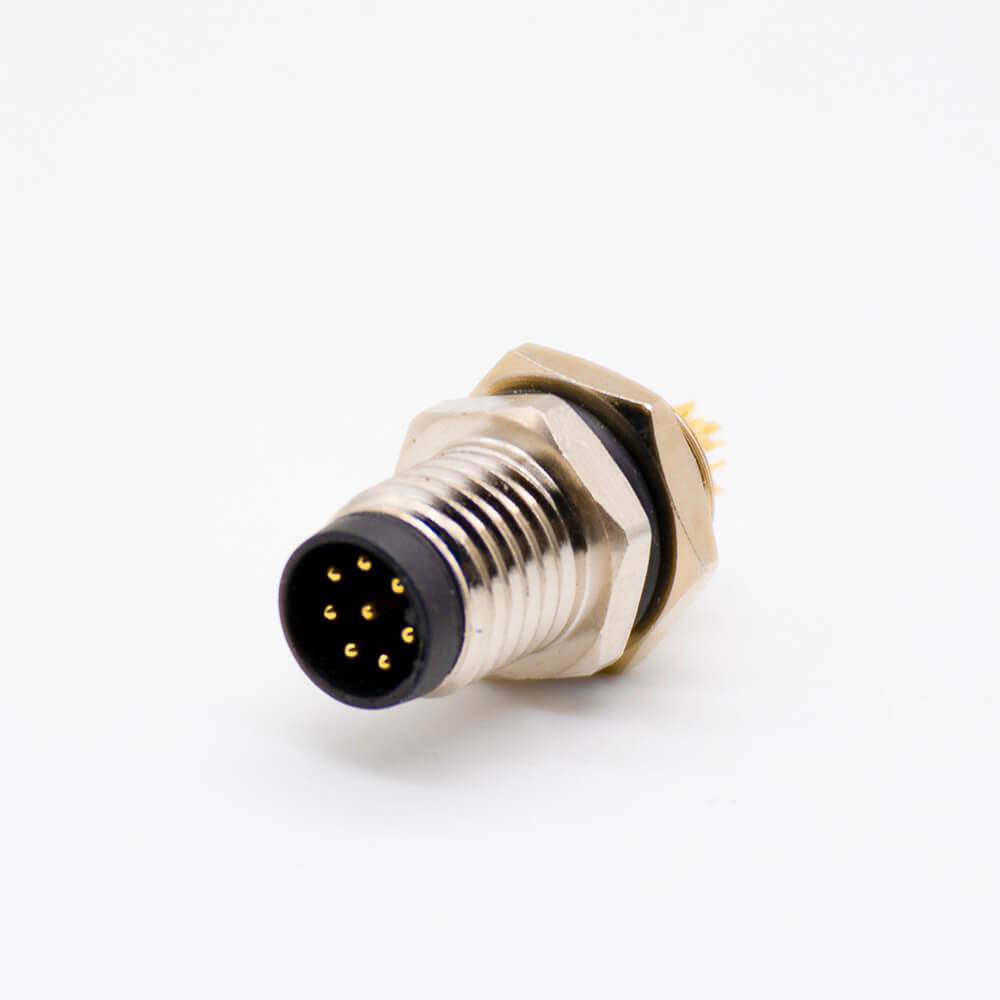

Elecbee sensor connector m8 A code 8pin male Straight panel mount connector Solder cup
SKU: EB-400-1218
Favorites
Key Features
Features:
- B code,8 pin,male,180°，panel mount,back mount,m8 connector
- thread locking mechanism, 8mm threaded joint;
- anti vibration locking design;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Show More
Datasheet
Specifications
Attribute
Value
Search
Connector Type
Receptacle
Mounting Type
Panel Mount
Mounting Feature
Bulkhead - Rear Side Nut
Termination
Solder Cup
Contact Type
Male Pin
Shell Finish
Nickel Plated
Number of Positions
8 Pin
Operating Temperature
-20℃~+85℃
Shielding
Unshielded
Ingress Protection
IP67 (Mated)
Rated Current
1.5A
Rated Voltage
30V
Connector Series
M8
Color
Silver
Fastening Type
Threaded
Orientation
Straight
Shell Material
Copper Alloy
Contact Material
Copper Alloy
Contact Finish
Gold Plated
Insulating Materials
PA66 + GF
Insulation Color
Black
Key
A Code
Wire Gauge
26AWG
Description
